5.3 Earth Connection
In order to prevent the machine from creating an electrostatic charge:
• Connect the earth connection of the machine (ECP)
If an inlet filter (IF) being installed:
• Connect the earth connection of the inlet filter (ECI) in addition to the earth con-
nection of the machine.

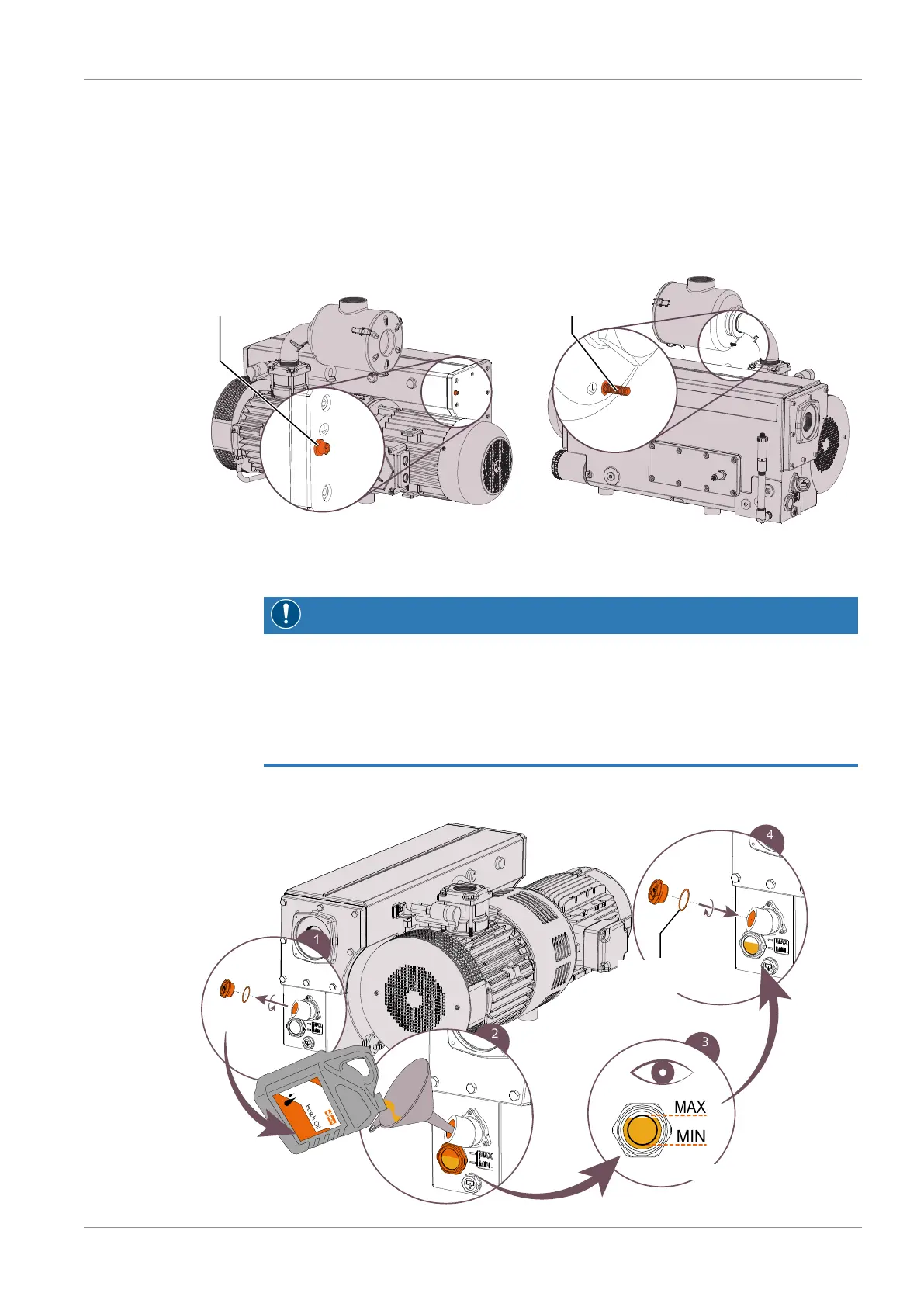

Earth connection of
the machine (ECP)
Earth connection of
the inlet filter (ECI)
5.4 Filling Oil
NOTICE
Use of an inappropriate oil.
Risk of premature failure!
Loss of efficiency!
• Only use an oil type which has previously been approved and recommended by
Busch.
For oil type and oil capacity see Technical Data [►33] and Oil [►34].
1
4
3
MAX
MIN
2
Busch Oil
Check oil level
1x o-ring, part no.:
0486 000 513
