Bush CBAR2 - Connections; Making the Connections

Page 5
User instructions

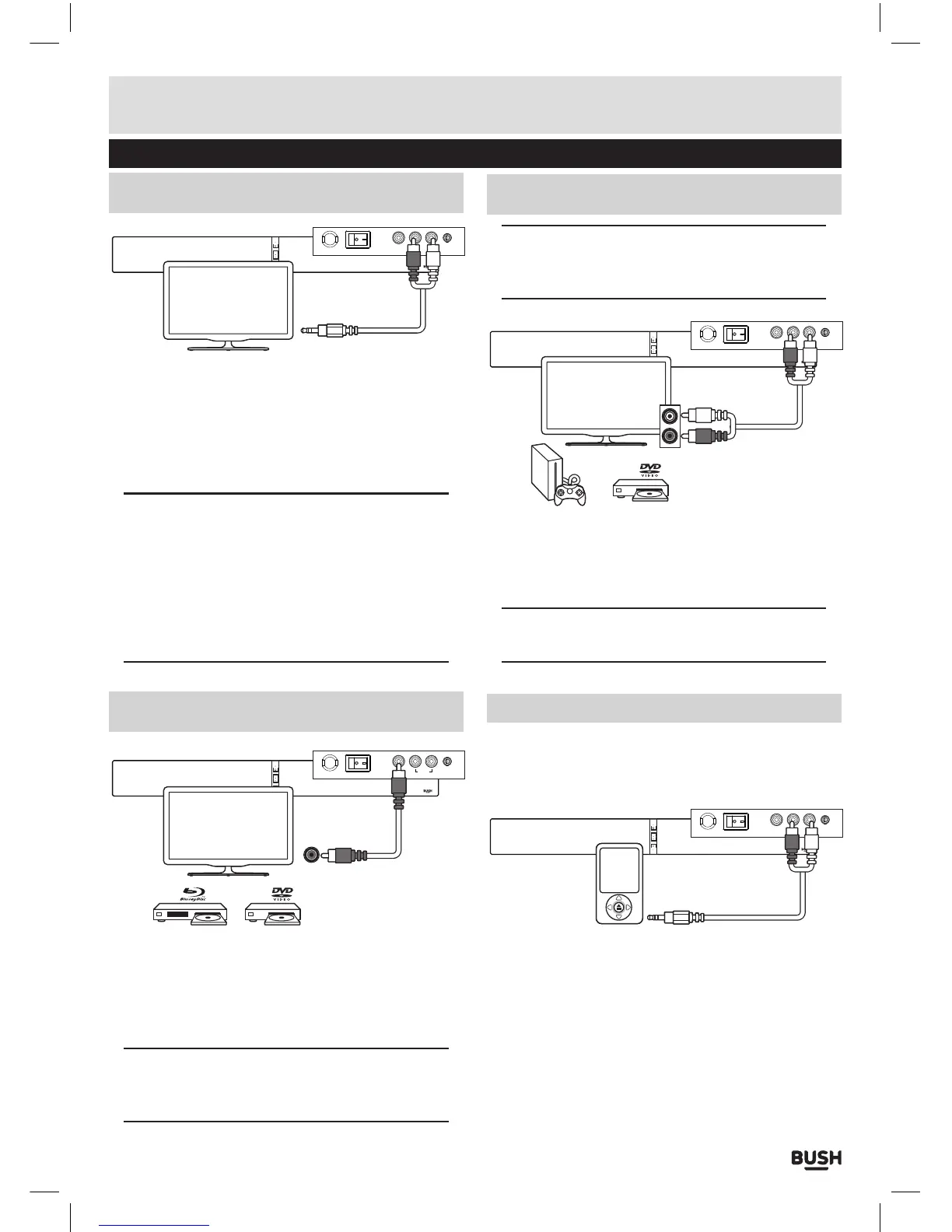

Making the connections
Connection to a TV using the supplied
RCA-3.5mm audio cable.
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX INL-TV-R COAX
AUX DC INCOAXRL
TV
SERVICE
OPTC
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
1: Connect the 3.5mm (small) end of the cable to the TV
headphone 3.5mm audio output socket.
2: Connect the other RED & WHITE ends to the TV
inputs on the back of the Sound bar (10), taking care
to match the RED plug to the RED socket and the
WHITE plug to the WHITE socket.
NOTE: In some cases the Sound bar volume
output is effected by the volume level on the TV.
In this case adjust the TV volume to increase the
audio output from the sound bar.
If no sound can be heard from the sound bar using
this connection, you may need to check your TV
settings to enable the headphone socket output.
DIGITAL connection to a TV, DVD or Blu-ray
player using the supplied COAXIAL cable.
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX INL-TV-R COAX
AUX DC INCOAXRL
TV
SERVICE
OPTC
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
1: Connect one end of the RCA COAX cable (supplied)
to the TV, DVD or Blu-ray COAXIAL audio output RCA
socket.
2: Connect the other end to the COAX input on the back
of the Sound bar (9).
NOTE: You may need to activate PCM (Downmix)
on your source device EG:- TV, DVD or Blu-ray
player.
Connecting a TV, DVD or GAMES CONSOLE
using an RCA - RCA audio cable (not supplied).
NOTE: Ensure that the TV PHONO connectors are
audio OUTPUTS and not audio INPUTS. If they are
INPUTS then use the RCA-3.5mm connection.
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX INL-TV-R COAX
AUX DC INCOAXRL
TV
SERVICE
OPTC
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
1: Connect one end of an RCA cable to the TV, DVD or
CONSOLE audio output RCA sockets.
2: Connect the other end to the TV inputs on the back of
the Sound bar (10).
NOTE: Match the RED plug to the RED socket and
the WHITE plug to the WHITE socket.
Connecting an MP3 player
The below diagram shows the connection to an audio
device such as an MP3 player, using the supplied
RCA-3.5mm audio cable.
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
SOURCE
+
ON OFF
AUX INL-TV-R COAX
AUX DC INCOAXRL
TV
SERVICE
OPTC
SOURCE
+
ON OFF
AUX IN
COAX L-TV-R
1: Connect the 3.5mm (small) end of the cable
(supplied) to the headphone output of your MP3
player.
2: Connect the other RED & WHITE ends to the TV
inputs on the back of the Sound bar (10), taking care
to match the RED plug to the RED socket and the
WHITE plug to the WHITE socket.
