BushCADDY LSA Pilot Operating Handbook Rev.03 5 March, 2008
Page 10 of 52
1.7 Engine
The following engines are approved for installation in the BUSHCADDY-LSA
i) Rotax 912 UL – 80 hp
ii) Rotax 912 ULS – 100 hp
iii) Rotax 914 – 115 hp
iv) Jabiru 3300 - 120 hp
Standard engine for the BUSHCADDY-S-LSA.is the ROTAX-BOMBARDIER 912 ULS 4 stroke, 4
cylinder engine - liquid/air cooled.
1.8 Propeller
The BUSHCADDY LSA is fitted with a ground adjustable propeller. The hub is of aircraft grade
aluminium alloy.
1.9 Fuel and Fuel Capacity
Fuel is stored in two 10-IMPERIAL (12 US) gallon tanks installed in the wings, gravity fed to the
engine, which is equipped with a mechanical pump.

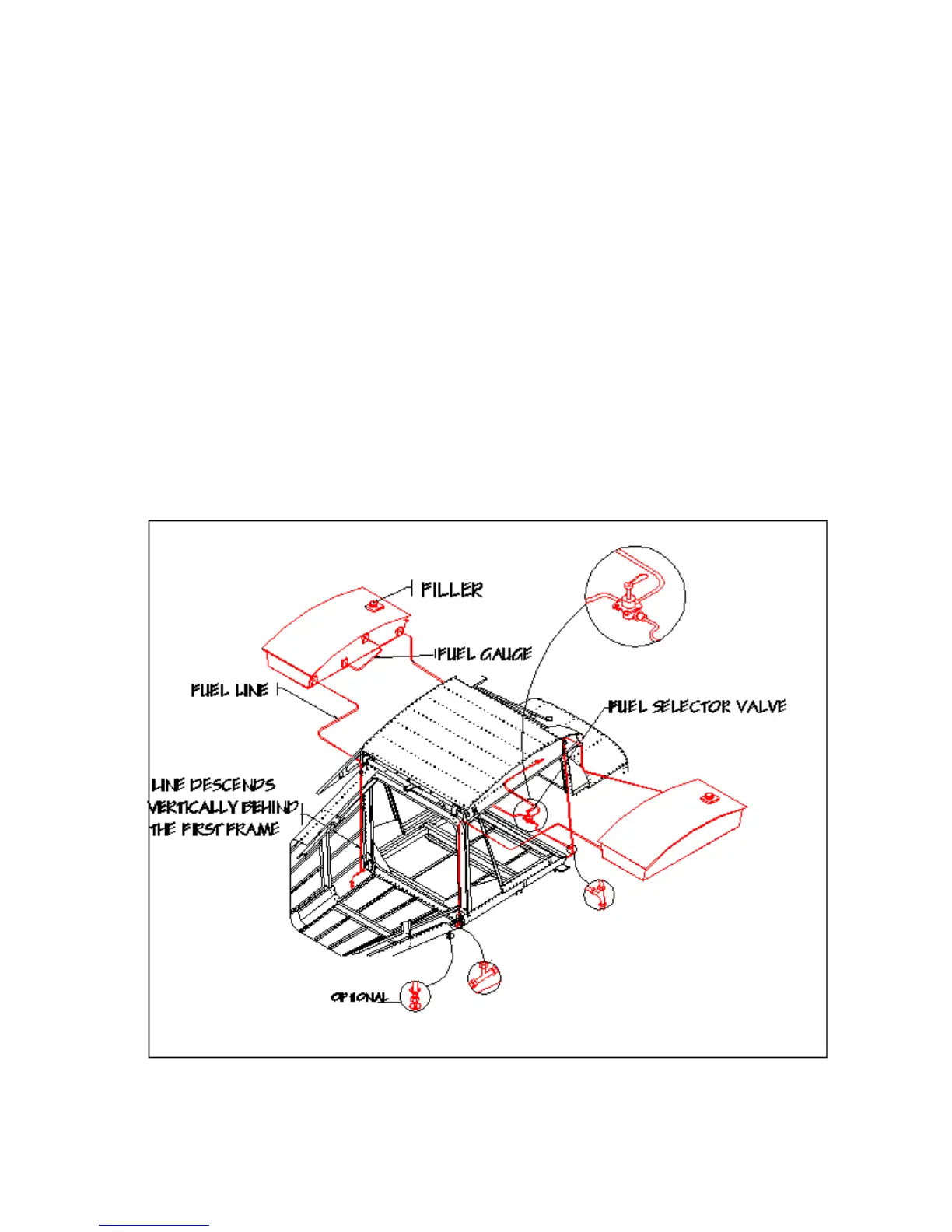

Fig. 3 Fuel Lines
An electric standby fuel pump may be installed.
