Butternut HF6V - Parts List;Pictorial

-10-

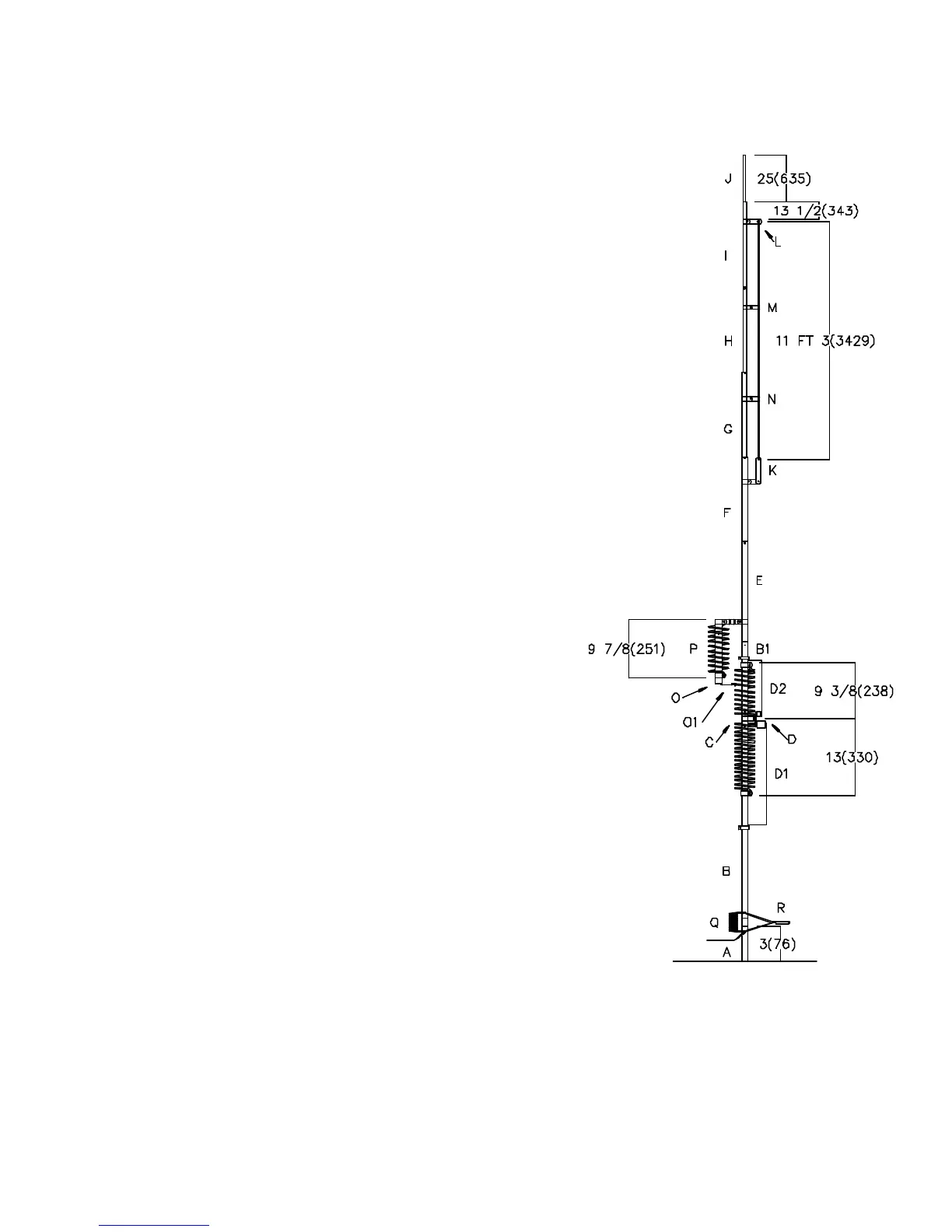

PARTS LIST/PICTORIAL
NOTE: All dimensions are in inches(millimeters) unless otherwise noted
Cod
e
Part No Description Qt
y
A 00278SZV TUBE A W/INSULATOR 1-1/8(29) X 24(606) 1
B 00115BAV TUBE 1-1/8(29) X 48(1216) 1
B1 00365SZV TUBE B1 W/INSULATOR 1-1/8(29) x 12(302) 1
C 00145SZV COIL ASSEMBLY 80/40 METER 1
D 290-07 CAPACITOR ASSEMBLY 80/40 METER 1
D1 00150BAV CAPACITOR BRACKET 80 METER 1
D2 00220BAV CAPACITOR BRACKET 40 METER 1
E 00123BAV TUBE 1(25) X 48(1216) 1
F 00124BAV TUBE 7/8(22) X 48(1216) 1
G 00125BAV TUBE 3/4(19) X 48(1216) 1
H 00126BAV TUBE 5/8(16) X 48(1216) 1
I 00127BAV TUBE 1/2(13) X 48(1216) 1
J 00175BAV TUBE 3/8(10) X 36(911) 1
K 00286RZV WIRE CLAMP 7/8(22) 15M W/INSULATOR 1
L 00280RZV WIRE CLAMP 1/2(13) 15M W/WIRE 1
M 00281RZV WIRE CLAMP 5/8(16) 15M W/INSULATOR 1
N 00282RZV WIRE CLAMP 3/4(19) 15M W/INSULATOR 1
O 00204SZV COIL SUPPORT TUBE 30 METER 1-1/8(29) X 9(225) 1
O1 00176BAV COIL SUPPORT TUBE 30 METER L BRACKET 1
P 00249SZV COIL/CAPACITOR ASSEMBLY 30 METER 1
Q 00137SZV COIL Q BASE MATCHING 1
R 290-08 COAX 75 OHM MATCHING 1
00077JZV # 8-32 X 3/4(19) SCREW 3
00078JZV # 8-32 X 1(25) SCREW 5
00079JZV # 8-32 X 1-1/4(32) SCREW 3
00080JZV # 8 LOCK WASHER 18
00081JZV # 8-32 HEX NUT 18
00083JZV # 8 FLAT WASHER 7
00109JZV # 8-32 X 2(51) SCREW 2
00114JZV # 8-32 X 1-1/2(38) SCREW 3
00131JZV #10-24 X 1(25) SCREW 2
00132JZV #10 FLAT WASHER 8
00133JZV #10 LOCK WASHER 8
00134JZV #10-24 HEX NUT 4
00135JZV #10-24 WING NUT 5
00050DZV KONNEKTOR-KOTE 1(25) X 8(203) .05
00089FZV PROTECTIVE CAP 0.375 1
00143BAV CAPACITOR BRACKET CLAMP 2
00144JZV COMPRESSION CLAMP SMALL ADJUSTABLE 1
00061SZV BUTTER-IT'S-NOT 1
00366IZV INSTRUCTIONS HF6V 1
