BW Broadcast TX150 - Page 37

BW Broadcast technical manual
Page 37
Technical data
COMBO BOARD
PA BOARD
LCD board
Filtered IEC
mains socket
10 WY RIBBON
RF & MOD
MON BNC’s
RED
BLACK
48V 800W
POWER SUPPLY
16 WY RIBBON
RG316
BNC
BNC
XLR XLR
9-pin D-Types
(Alarms & RS232)
N-type socket
EARTH
RG316
RG316
Fan
CONTROL / POWER / EXCITER SECTION
AUDIO INPUT / LIMITER SECTION
STEREO ENCODER SECTION
Fan

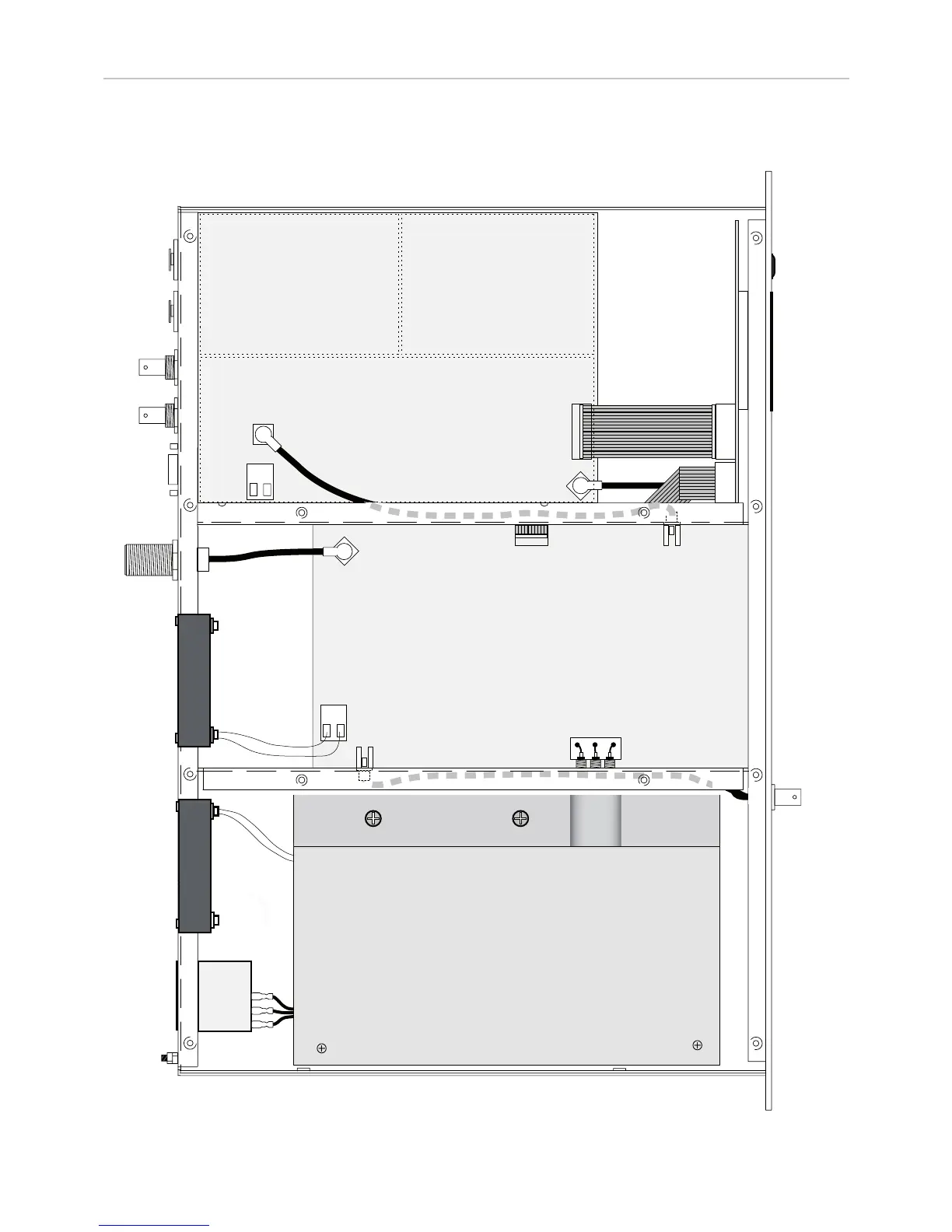

3.4 WIRING AND INTERNAL OVERVIEW
