BXB Electronics WMP-2100 - DIP Switch Setting Explanation

12

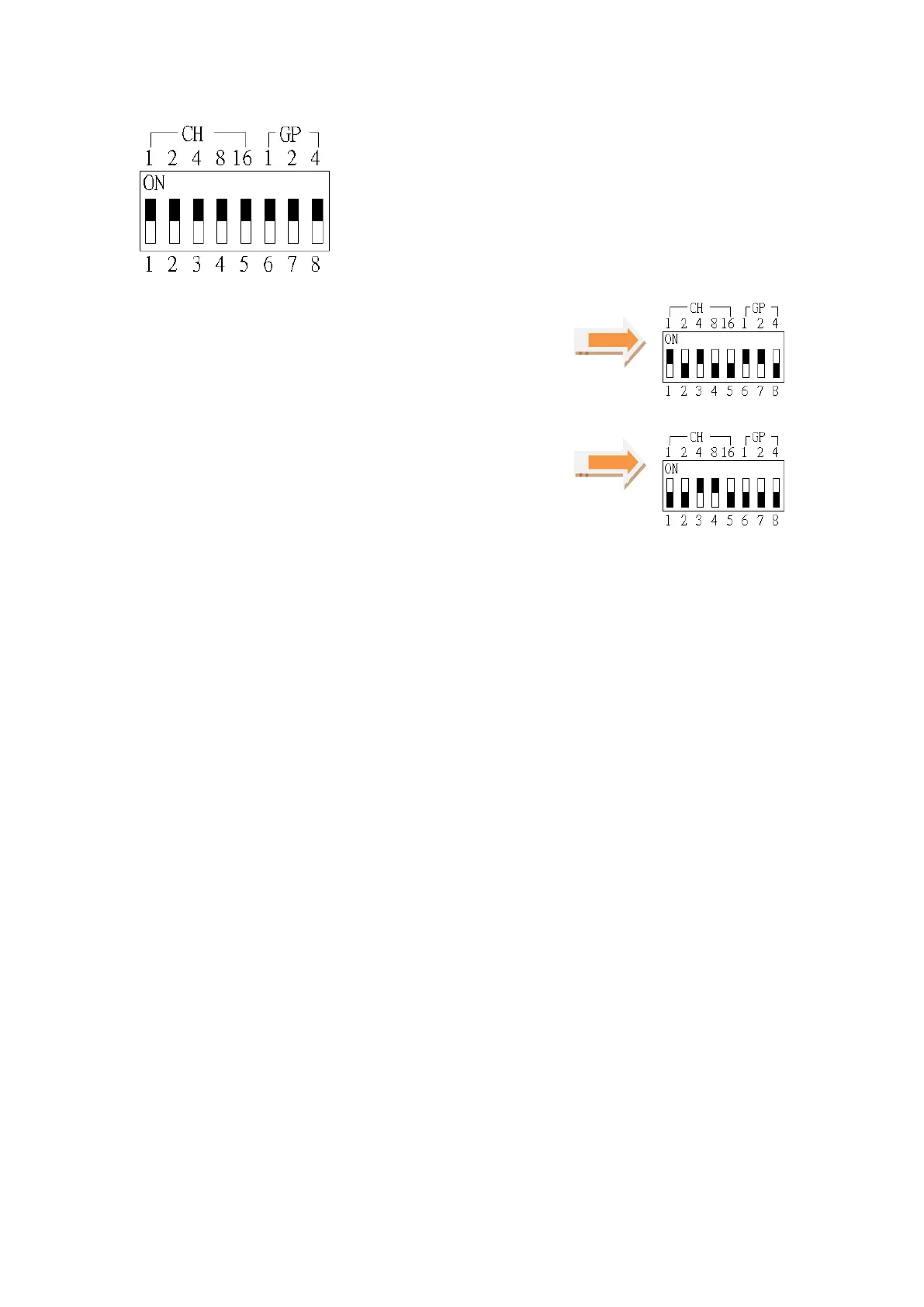

a. WMP-60 DIP switch setting:
Each switch on decoder represents one-bit binary value.
The values of all switches in the DIP package are
interpreted as one number.
Definition:
GP= Group code
（
To set Group 1~8, all ON is 7, all OFF is 8
）
Example 1
：Code 305

Group 3 and area 5
GP 03

DIP switch 6
、
7 are ON, 8 is OFF
CH 05

DIP switch 1
、
3 are ON, 2
、
4
、
5 are OFF
Example 2
：Code 812

Group 8 and area 12
GP 08

DIP switch 6
、
7
、
8 are OFF
CH 12  DIP switch 3、4 are ON, 1、2、5 are OFF
