VII. External activated port and installation
1. There are 2 external trigger connectors on main controller, which apply to a
timer clock and other flip-flops.
2. Two external control wipers function：
◎ ALL CALL+COM Broadcast to all zones
◎ 8 GROUP+COM Broadcast to Group 8

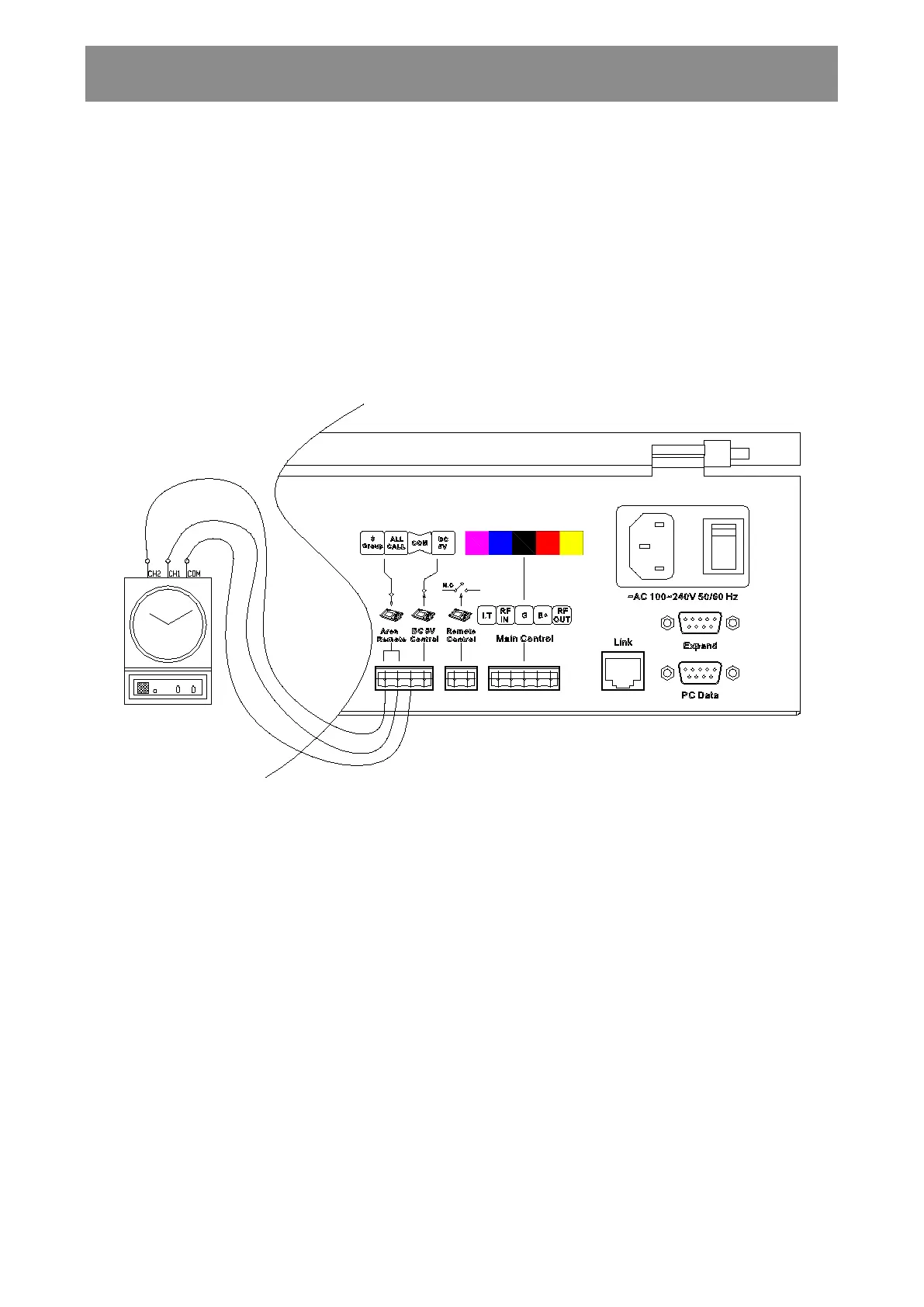

3. Connection for timer clock
◎ Please refer to sound source input instructions for timer clock audio source
connection to complete installation.
※BXB also provides digital multi-function music timer clock on PA Control
Software. There are 24 groups of regular broadcasting, 8 groups of
unlimited setting, mix/random track playing mode...etc. You can even
broadcast through the Internet by it. Please contact us for more
information.
