IV. Connection for extension control device
(WMP-2100A)
※ Instructions：
1. WMP-2100 can connect up to 2 extension control units (64 zones each), in
total supports 192 broadcast zones at most.
2. Every console has 8 memorable control group buttons, which means included
2 extension control devices; there are 24 group buttons at most.
3. If (there are) more than 192 zones, users can install another main console
(WMP-2100) for extension.
4. Please refer to Figure 7 for connection instructions.

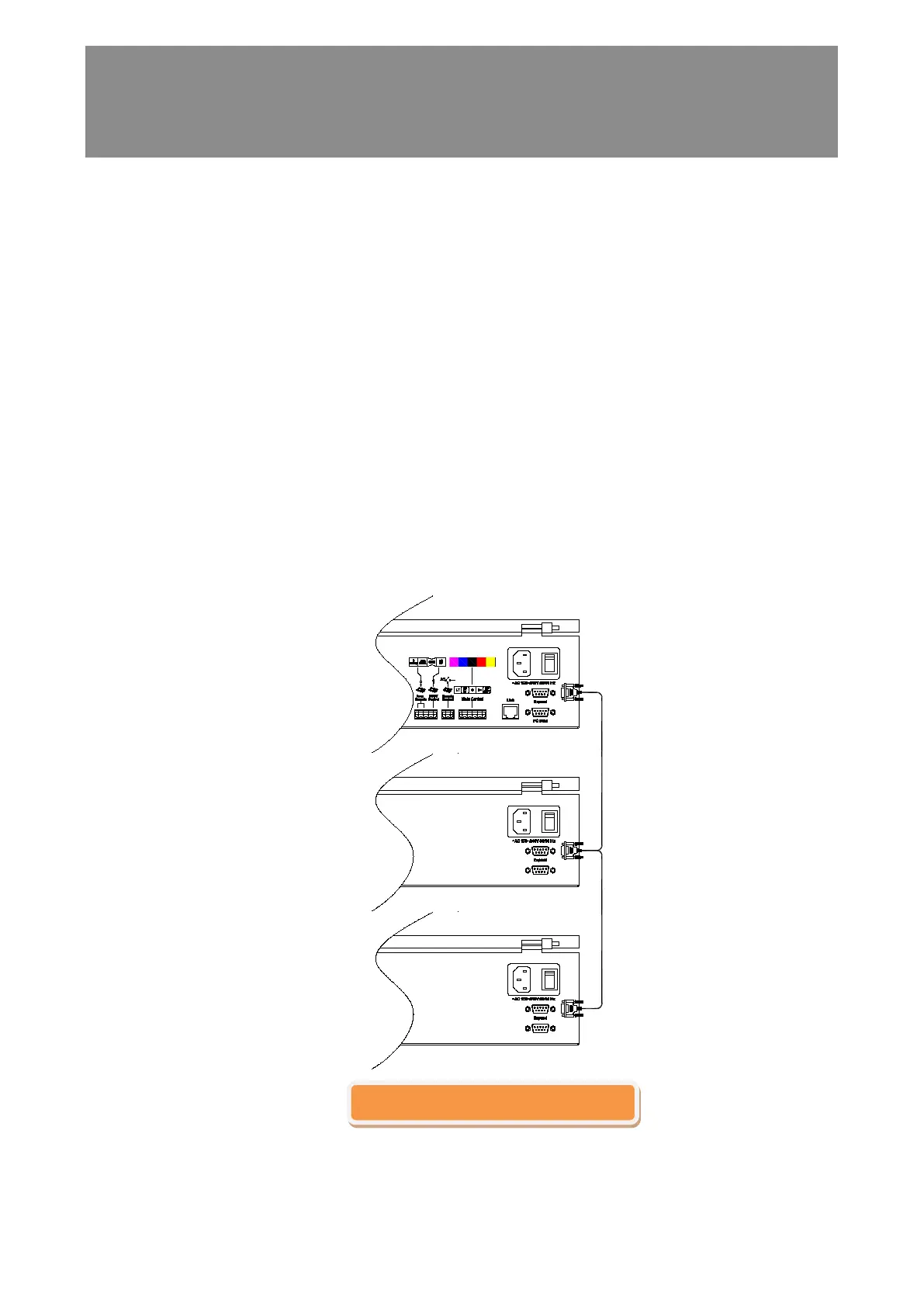

Fig. 7 WMP-2100A Connection
