Byan System G2M User Manual

BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
9

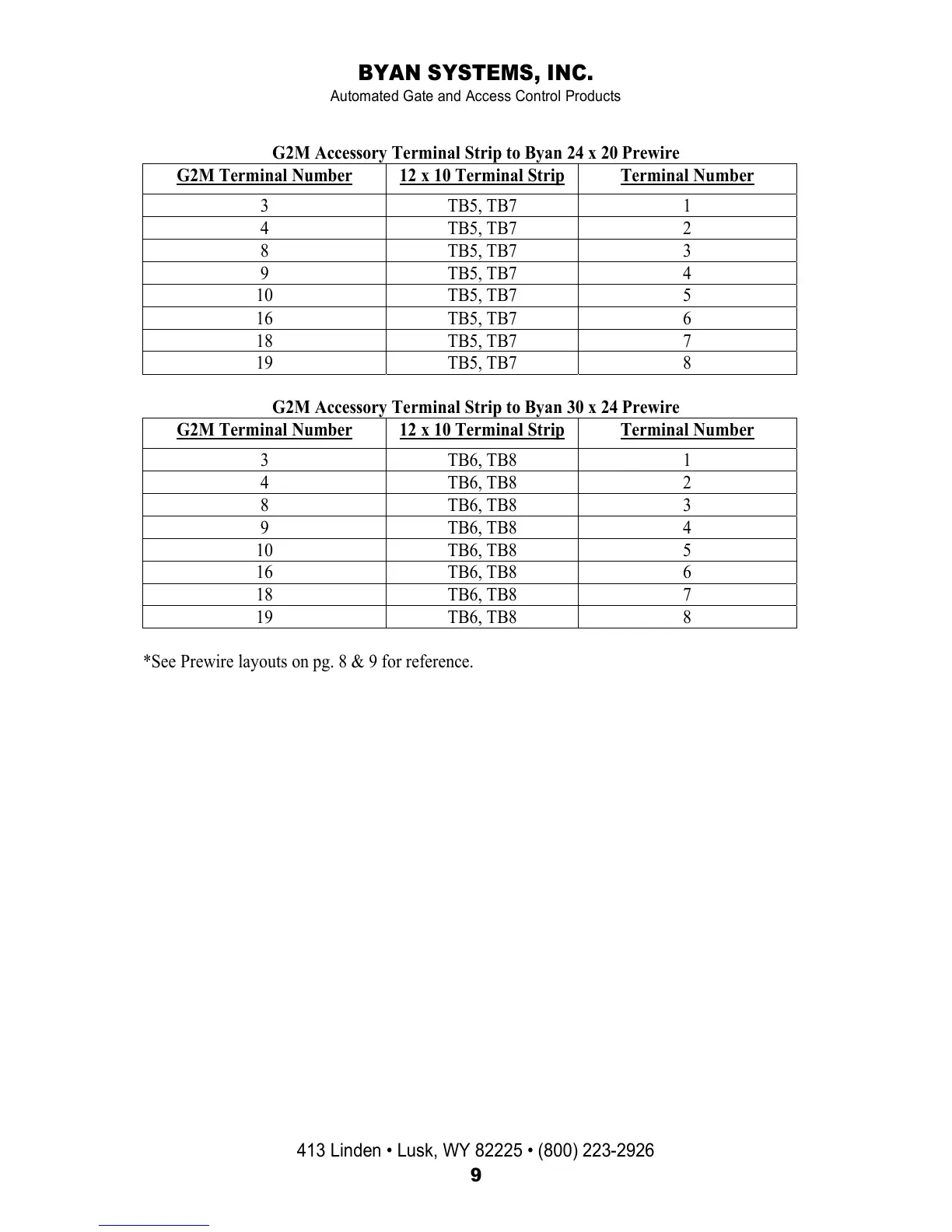

G2M Accessory Terminal Strip to Byan 24 x 20 Prewire
G2M Terminal Number 12 x 10 Terminal Strip Terminal Number
3 TB5, TB7 1
4 TB5, TB7 2
8 TB5, TB7 3
9 TB5, TB7 4
10 TB5, TB7 5
16 TB5, TB7 6
18 TB5, TB7 7
19 TB5, TB7 8
G2M Accessory Terminal Strip to Byan 30 x 24 Prewire
G2M Terminal Number 12 x 10 Terminal Strip Terminal Number
3 TB6, TB8 1
4 TB6, TB8 2
8 TB6, TB8 3
9 TB6, TB8 4
10 TB6, TB8 5
16 TB6, TB8 6
18 TB6, TB8 7
19 TB6, TB8 8
*See Prewire layouts on pg. 8 & 9 for reference.
