BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
8

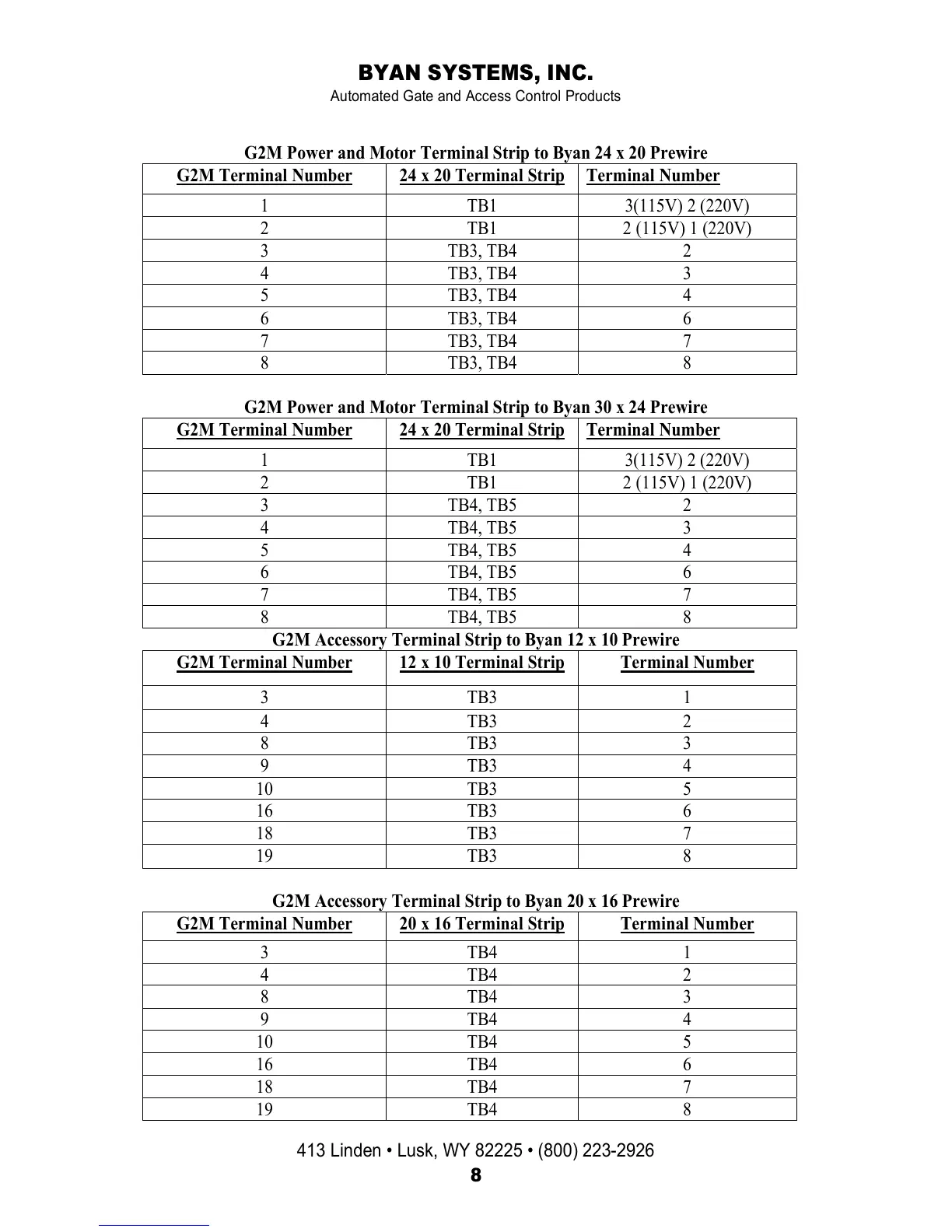

G2M Power and Motor Terminal Strip to Byan 24 x 20 Prewire
G2M Terminal Number 24 x 20 Terminal Strip Terminal Number
1 TB1 3(115V) 2 (220V)
2 TB1 2 (115V) 1 (220V)
3 TB3, TB4 2
4 TB3, TB4 3
5 TB3, TB4 4
6 TB3, TB4 6
7 TB3, TB4 7
8 TB3, TB4 8
G2M Power and Motor Terminal Strip to Byan 30 x 24 Prewire
G2M Terminal Number 24 x 20 Terminal Strip Terminal Number
1 TB1 3(115V) 2 (220V)
2 TB1 2 (115V) 1 (220V)
3 TB4, TB5 2
4 TB4, TB5 3
5 TB4, TB5 4
6 TB4, TB5 6
7 TB4, TB5 7
8 TB4, TB5 8
G2M Accessory Terminal Strip to Byan 12 x 10 Prewire
G2M Terminal Number 12 x 10 Terminal Strip Terminal Number
3 TB3 1
4 TB3 2
8 TB3 3
9 TB3 4
10 TB3 5
16 TB3 6
18 TB3 7
19 TB3 8
G2M Accessory Terminal Strip to Byan 20 x 16 Prewire
G2M Terminal Number 20 x 16 Terminal Strip Terminal Number
3 TB4 1
4 TB4 2
8 TB4 3
9 TB4 4
10 TB4 5
16 TB4 6
18 TB4 7
19 TB4 8
