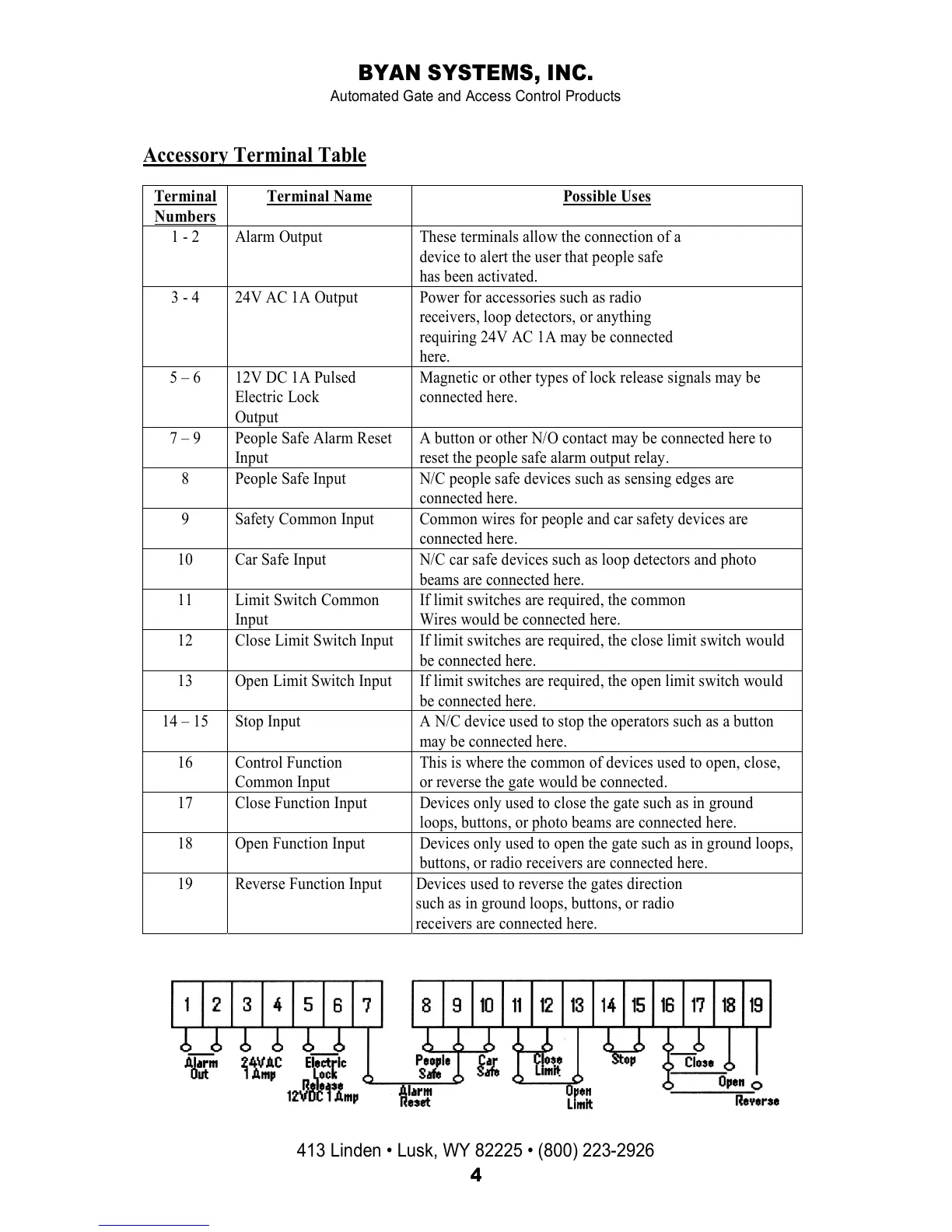

Numbers
Terminal Name Possible Uses
1 - 2 Alarm Output These terminals allow the connection of a
device to alert the user that people safe
has been activated.
3 - 4 24V AC 1A Output Power for accessories such as radio
receivers, loop detectors, or anything
requiring 24V AC 1A may be connected
here.
5 – 6 12V DC 1A Pulsed
Electric Lock
Output
Magnetic or other types of lock release signals may be
connected here.
7 – 9 People Safe Alarm Reset
Input
A button or other N/O contact may be connected here to
reset the people safe alarm output relay.
8 People Safe Input N/C people safe devices such as sensing edges are
connected here.
9 Safety Common Input Common wires for people and car safety devices are
connected here.
10 Car Safe Input N/C car safe devices such as loop detectors and photo
beams are connected here.
11 Limit Switch Common
Input
If limit switches are required, the common
Wires would be connected here.
12 Close Limit Switch Input If limit switches are required, the close limit switch would
be connected here.
13 Open Limit Switch Input If limit switches are required, the open limit switch would
be connected here.
14 – 15 Stop Input A N/C device used to stop the operators such as a button
may be connected here.
16 Control Function
Common Input
This is where the common of devices used to open, close,
or reverse the gate would be connected.
17 Close Function Input Devices only used to close the gate such as in ground
loops, buttons, or photo beams are connected here.
18 Open Function Input Devices only used to open the gate such as in ground loops,
buttons, or radio receivers are connected here.
19 Reverse Function Input Devices used to reverse the gates direction
such as in ground loops, buttons, or radio
receivers are connected here.
