BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
13

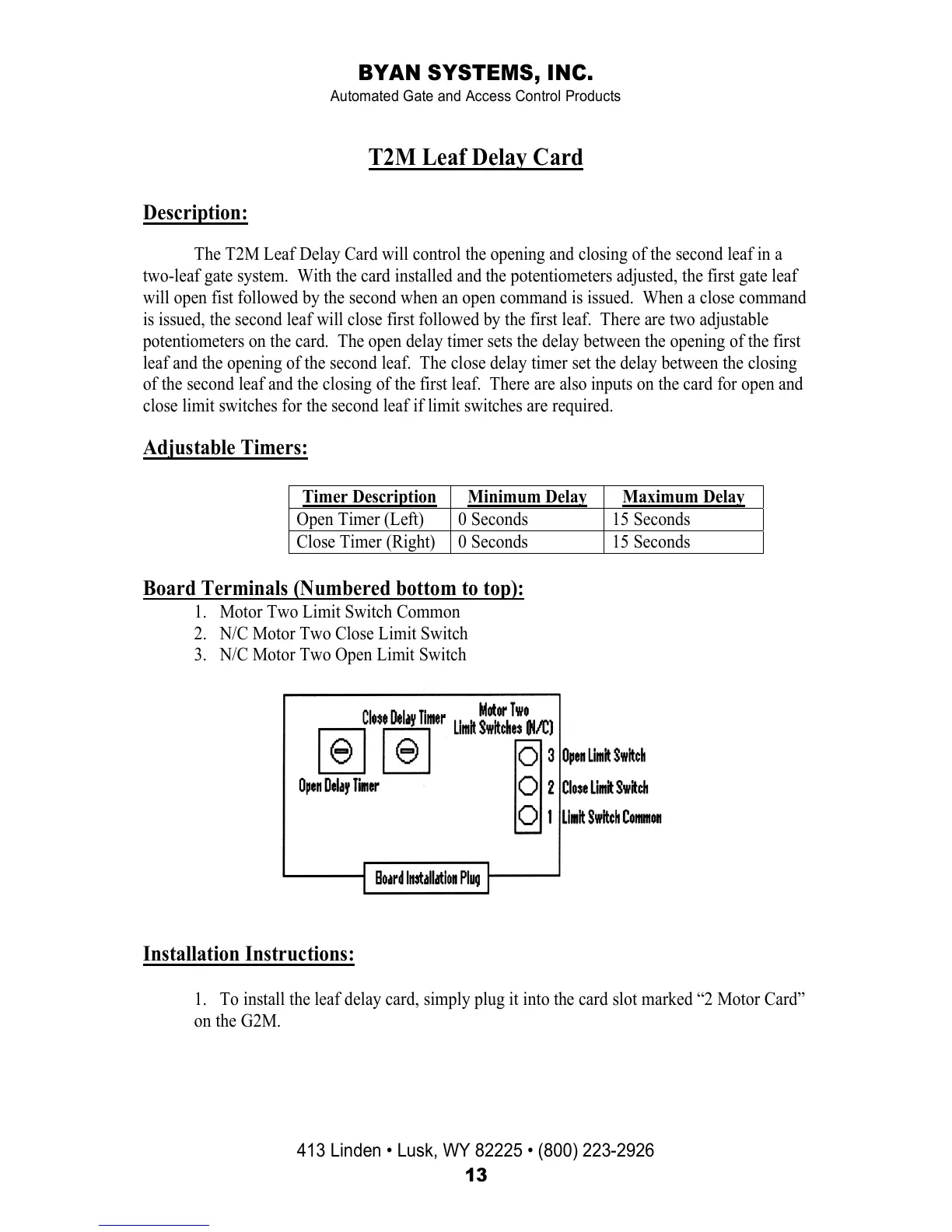

T2M Leaf Delay Card
Description:
The T2M Leaf Delay Card will control the opening and closing of the second leaf in a
two-leaf gate system. With the card installed and the potentiometers adjusted, the first gate leaf
will open fist followed by the second when an open command is issued. When a close command
is issued, the second leaf will close first followed by the first leaf. There are two adjustable
potentiometers on the card. The open delay timer sets the delay between the opening of the first
leaf and the opening of the second leaf. The close delay timer set the delay between the closing
of the second leaf and the closing of the first leaf. There are also inputs on the card for open and
close limit switches for the second leaf if limit switches are required.
Adjustable Timers:
Timer Description Minimum Delay Maximum Delay
Open Timer (Left) 0 Seconds 15 Seconds
Close Timer (Right) 0 Seconds 15 Seconds
Board Terminals (Numbered bottom to top):
1. Motor Two Limit Switch Common
2. N/C Motor Two Close Limit Switch
3. N/C Motor Two Open Limit Switch
Installation Instructions:
1. To install the leaf delay card, simply plug it into the card slot marked “2 Motor Card”
on the G2M.
