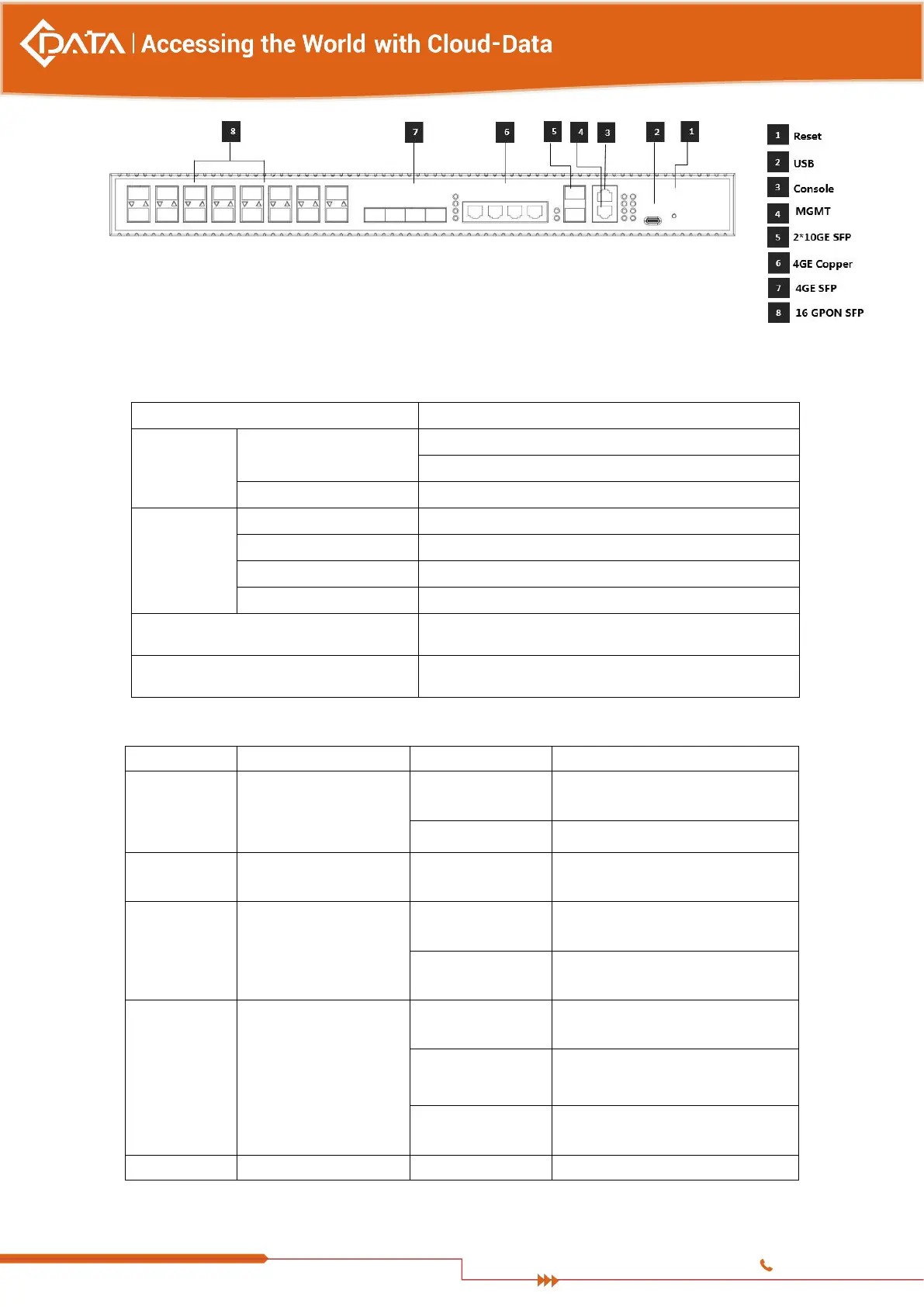

Front View of FD1616GS
OLT Front Board Introduce:
Item
Specification
Uplink Port
COMBO port
4 10/100/1000M auto-negotiation Ethernet ports
4 SFP interfaces
10-Gigabit
2 SFP+ interfaces
PON Port
QTY
16
Physical Interface
SFP Slots
Connector Type
ITU-TG.984.2Class B+ or ITU-TG.984.2Class C+
Max splitting ratio
1:128
Management Ports
1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
Reset
Reset OLT equipment
LED Status Introduce:
Type
Identification
Status
Indication
Power
Supply
Indicator
PWR n
( n = 1/2 )
Green ,
AlwaysON
Normal Power supply
OFF
Power supply is unconnected or
breaks down
System
Status
SYS
Flash per second
System normally operate
Management
Port
MGMT
Green , Always
ON
Management port is connected
OFF
Management port isn't
connected
PON Port
Indicator
P n
( n=1/2/3/4/5/6/7/8)
Flash
There is communication data at
GPON port(n)
Green , Always
ON
There are ONT register on OLT
port(n) and the optical fiber link
is normal.
OFF
NO ONT link with the OLT
port(n)
Uplink Port
GE n
Flash
There is the communication
