Indicator
( n=1/2/3/4)
data at the uplink port(n)
Green , Always
ON
The uplink port(n) is connected
OFF
The uplink port(n) isn't
connected
XGEn
(n=1/2)
Flash
There is the communication
data at the 10GE uplink port(n)
Green , Always
ON
The 10GE uplink port(n) is
connected
OFF
The 10GE uplink port(n) isn't
connected
Alarm
ALARM
Always ON
One fan doesn’t work
Slow Flash
Two fan doesn’t work
Fast Flash
More than three fan doesn’t
work
OFF
All the fan work

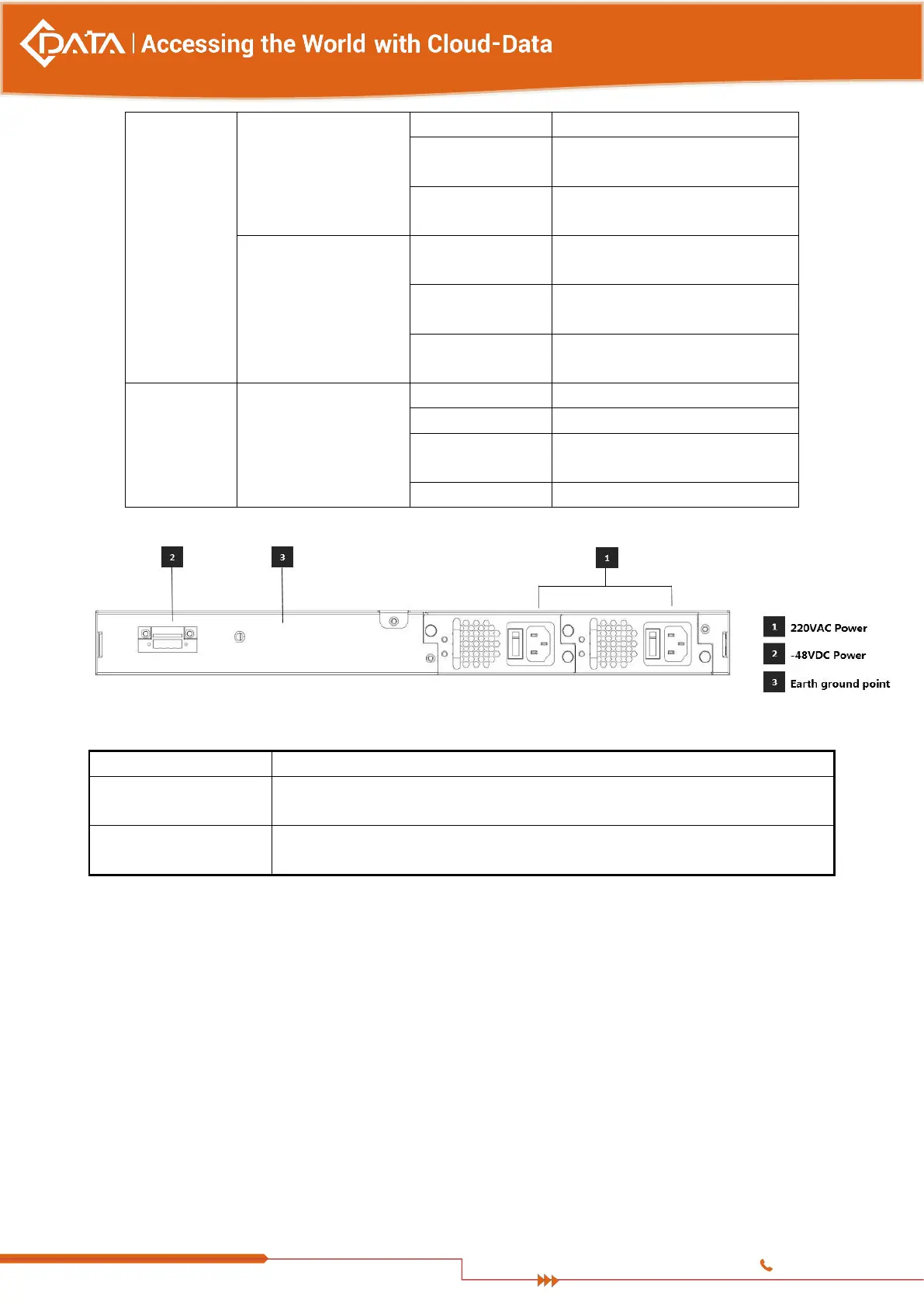

FD1616GS Rear View
Back View of FD1616GS：
Item
Specification
Grounding Terminal
One, it's in the left of the front panel and is used to grounding for machine
frame
Power Module
Support Pluggable type two power module. You can chose AC or DC power
supply, optional
2.2 Power Requirement
The input voltage must be stable, no EMI noise and distortion.
When use DC power supply, the input voltage is -48VDC, the allowed range is -36 ~ -72
VDC.
When use AC power supply, the input voltage is 110/220VAC, the allowed range is 90 ~
264VAC.
Note: Follow all security specification and the rule about the electricity in the
locality or the building. All power supply must be legal.
2.3 Equipment Ground
