3.3 OLT Installation
OLT can be put in the bigger horizontal surface or within the standard EIA 19 " rack.
3.3.1 Plane Stack Installation
Step I: Pre-Installation Validation
Ensure the worktable is strong enough to support the weight of the device and
cables.
Ensure no obstacles on the worktable and the surroundings affecting the installation
of the device exist.
Prepare the OLT device to be installed and move the device to the place where is
near the work table and facilitates the handling.
Step II: Lift the OLT device and slowly move to the front of the worktable.
Step III: Move the OLT device to the location slightly higher than the worktable and then
place the OLT device to the specified location on the worktable.
3.3.2 Rack Installation
OLT equipment can be installed inside 19’’ rack which is compliance with ETSI standard.

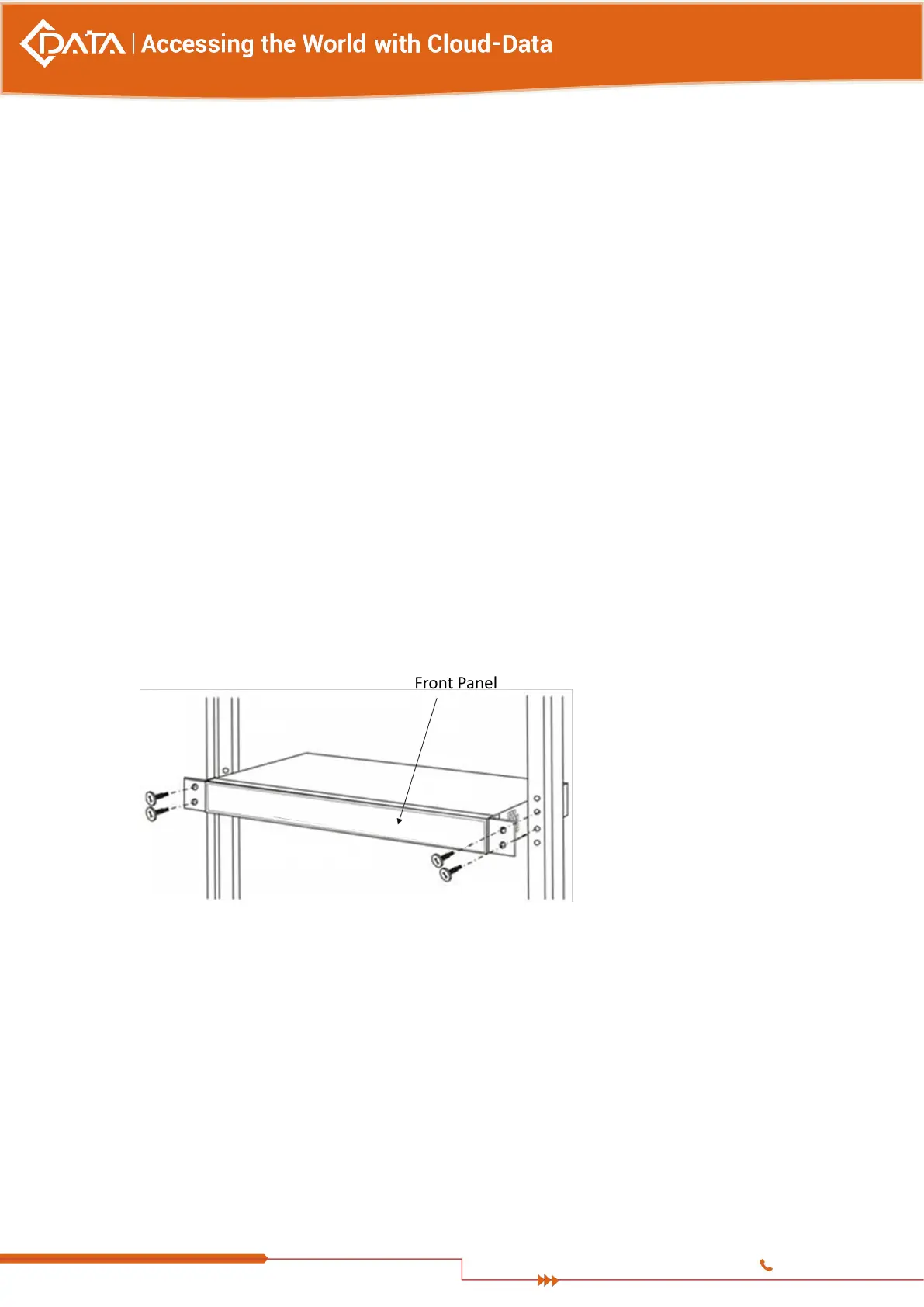

OLT rack diagram as shown in below.
The installation process is as follows:
Step I: Pre-Installation Validation
Ensure the cabinet is fixed and the installation location of the OLT device in the
cabinet is well arranged, and no obstacles inside the cabinet and the surroundings
affecting the installation of the device exist.
Prepare the OLT device to be installed and move the device to the place where is
near the cabinet and facilitates the handling.
Step II: Lift the OLT device and slowly move the device to the front of the cabinet.
Step III: Lift the OLT device to the location slightly higher than the tray or sideway of the
cabinet, place the OLT device to the tray or sideway of the cabinet and then push it to the
cabinet.
Step IV. Use screws to fix the suspension loops of the cabinet to the square holes of the
