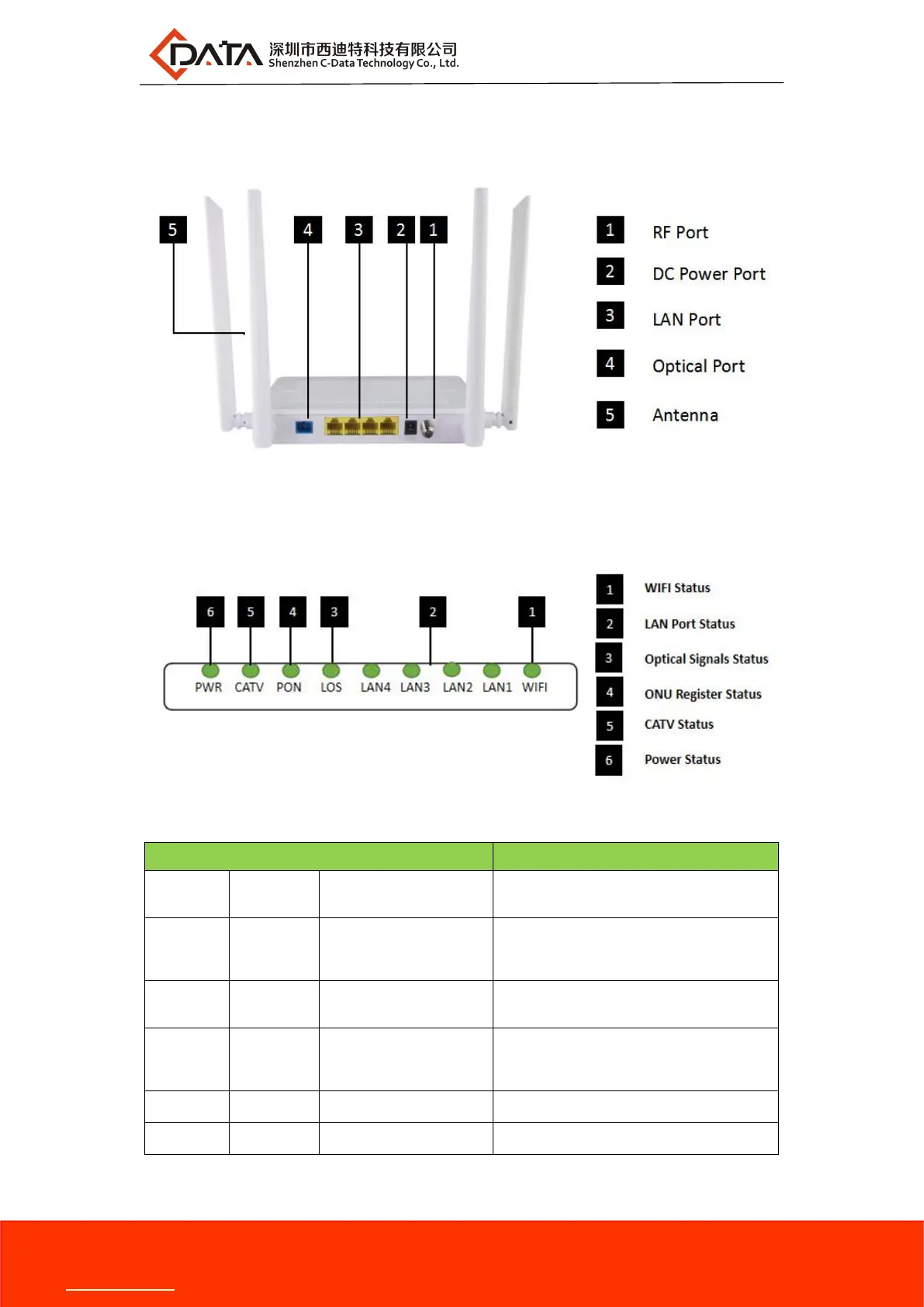

2.3 Device Interface Definition
2.4 LED Description
Indicator
Description
1
WIFI
WIFI
BlinkingData is being transmitted
OnWi-Fi function Opens
Off
Wi-Fi function Close
2
LAN1-4
LAN Port status
On: Ethernet connection is normal;
Blinking: Data is being transmitted
through the Ethernet port;
Off: Ethernet connection is not set up;
3
LOS
EPON optical signals
On: Optical power lower than receiver
sensitivity ;
Off: Optical in normal
4
PON
ONU Register
On: Success to register to OLT
Blinking: In process of registering to
OLT;
Off: In process of registering to OLT;
5
CATV
CATV status
OnCATV optical normal
Off
The CATV signals are not received
6
PWR
Power status
On: The ONU is power on;
Off: The ONU is Power off;
