P22
7.4 IGMP VLAN Configuration

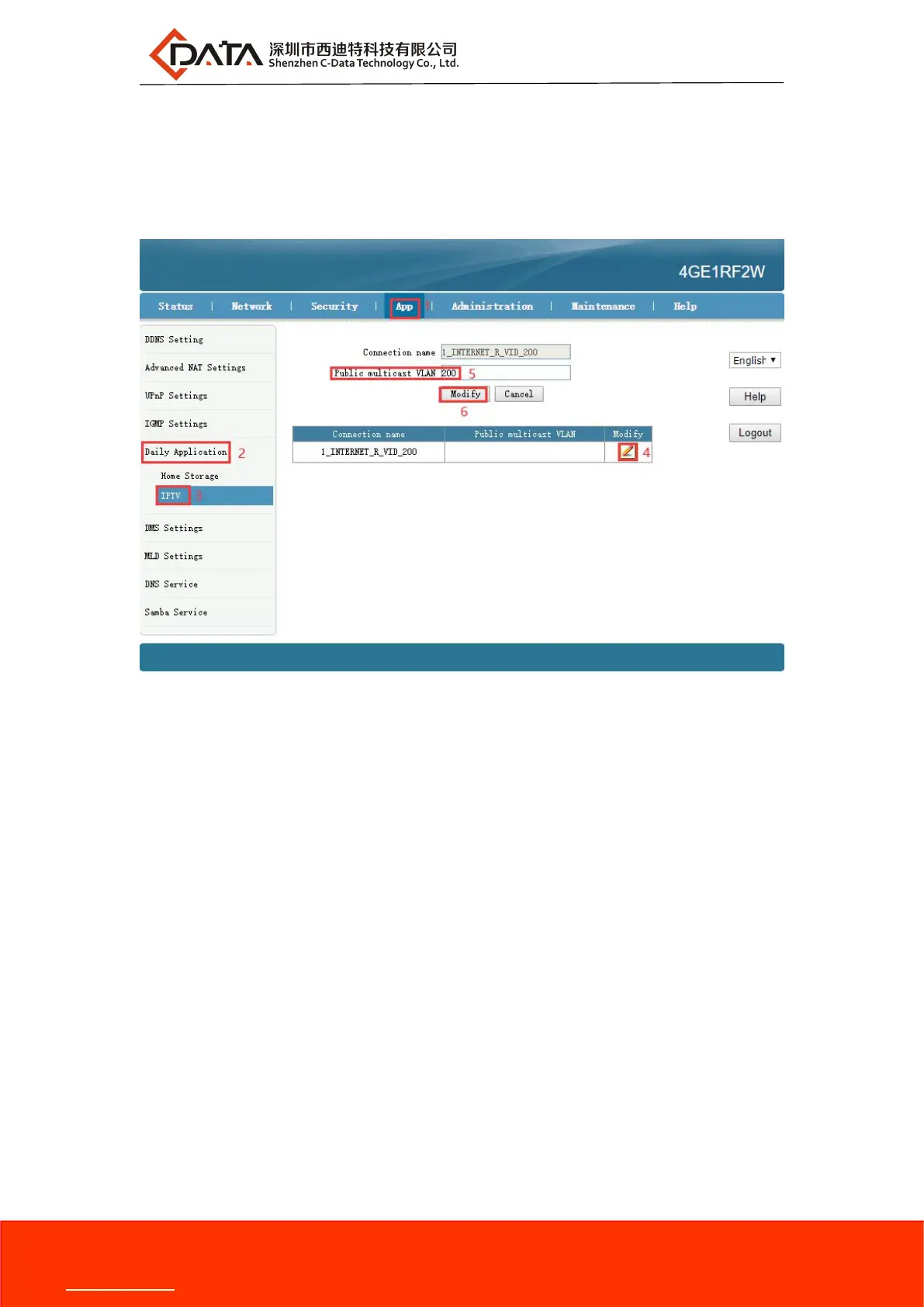

1.Login ONU’s WEB, select App->Daily Application->IPTV, select the corresponding
WAN, click ‘Modify Icon’, configure multicast vlan, click ‘Modify’ button. ：
8 WLAN Configuration
8.1 WLAN Basic Configuration
1. Login ONU WEB, select Network->WLAN ->Basic, and then there are some parameters
for us to configure as follows:
【Enable Wireless RF】Enable or disable the wireless function;
【Enable Isolation】Unchecked by default; this option is used to isolate communication
between individual SSID;
【Mode】When choose SSID1-4, the default option is Mixed(802.11b+802.11g+802.11n);
when choose SSID5-8, the default option is
Mixed(802.11a+802.11n+802.11ac);
【Country/Region】The default is Mixed(802.11b+802.11g+802.11n);
【Band Width】When choose SSID1-4, the default value is 20/40MHz,but sometimes,it is
