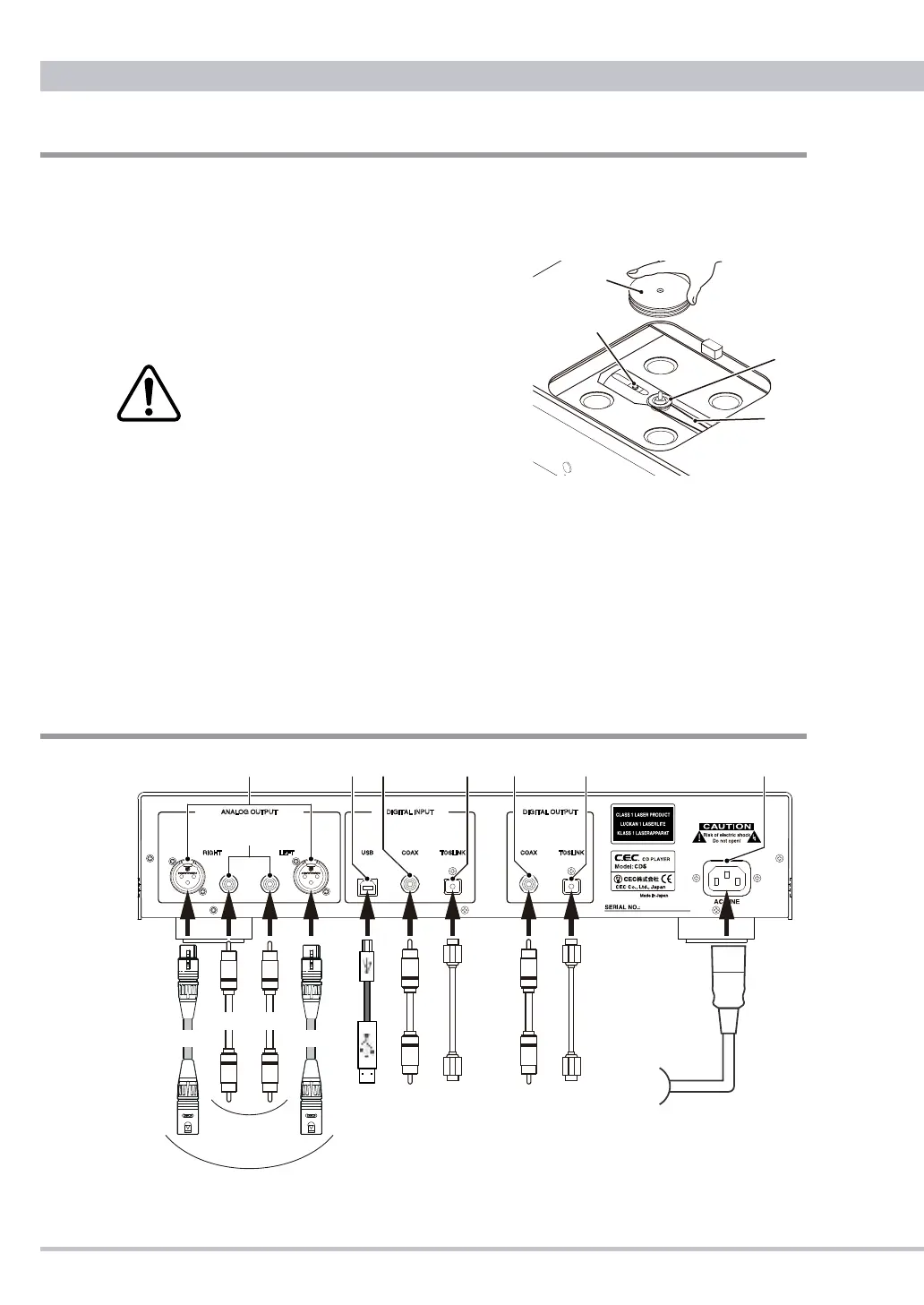

C.E.C. CD5 - Inside the CD Door Components; Laser Pickup and Stabilizer; Turntable and Belt Drive; Rear Panel Connections

CD PLAYER / USB SOUND SYSTEM CD5
12
❶
Optical Laser Pickup Lens
The optical laser pickup reads music signals from a compact disc. To keep it clean
never touch the lens with your ngers, etc., and always close the CD door.
❷
CD Stabilizer
The CD Stabilizer for CD5 is heavy with a
diameter of 7cm and weighing 330g.
■
Handle with care. Hold the edge
steadily when placing on or removing it
from the CD-Turntable in the CD tray.
Dropping the CD Stabilizer may damage
it and decrease playback accuracy.
❸
CD-Turntable
Place a compact disc on the CD-Turntable, and place the CD Stabilizer on top of the
disc. The CD Stabilizer can be placed on the CD-Turntable when not in use, even when
no disc is in place.
❹
Rubber Belt
Square rubber belt to drive a disc on the CD-Turntable. Periodic maintenance is not
required. The tension of the belt may be lowered by using for years which may affect
the disc rotation accuracy. Refer to page 22 to replace the belt.
Rear Panel Functions and Connections
❸
❶
❷
❹
POWER
SOURCE
VOLUME
HEADPHNE
USB COAX TOS PCM
FLAT PULSE DSD
BELT DRIVE CD PLAYER CD5
ANALOG OUTPUT DIGITAL INPUT DIGITAL OUTPUT
COAX TOSLINKTOSLINKCOAXUSBLEFTRIGHT
❶
❷
❹
❼
❻
❸ ❺ ❽
❹
❼
❻
❸ ❺
❶
to amplifier
❷to amplifier
3-pin AC power cord
to a wall outlet
❽
from PC from digital player from digital player to D/A converter to D/A converter
Rch Lch
Rch Lch
Inside the CD door
