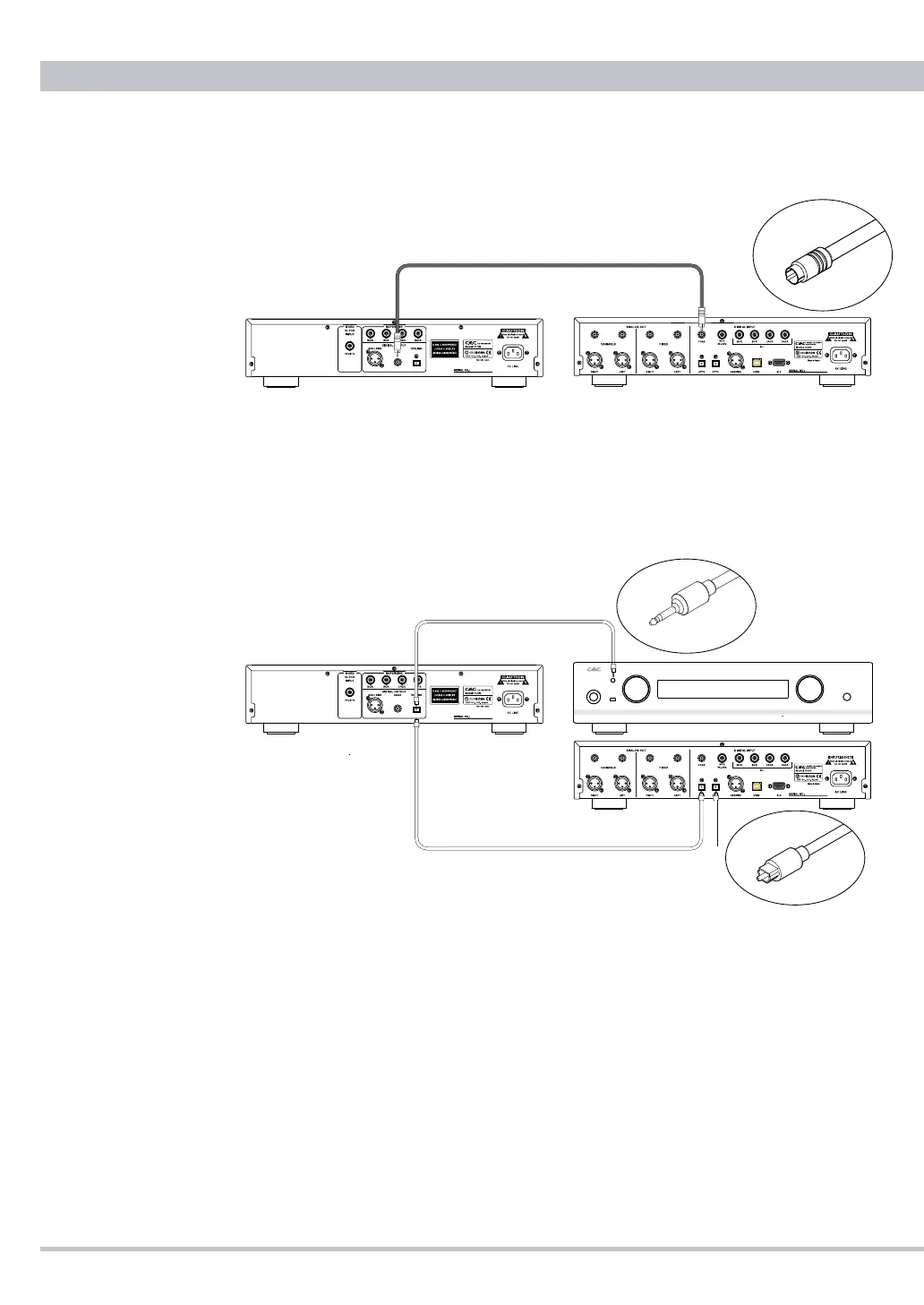

COAXIAL Connection
Connect to the COAXIAL terminal of any compatible digital audio device
with a 75Ω COAXIAL (RCA) cable. If COAXIAL cable has an arrow mark,
connect to DA3N at the direction of mark.
●
Optical Connection
TOSLINK optical fiber cable (round shaped mini-plug or squared shaped
standard type)
Connect to the TOSLINK terminal of any compatible digital audio device
with an optical cable.
Warning: LED light is used at optical cable. Do not try to directly watch
the light out of the cable in order not to harm your eyes.
Note: TOSLINK is using an optical fiber. Do not bend the cable too much
and keep unused TOSLINK terminals covered.
POWER INPUT HEADPHONE
DIGITAL TO ANALOG CONVERTER DA3N
OPT1
USB1
VOLUME
USB SOUND SYSTEM
Roundminiplug
SquaredTOSLink
