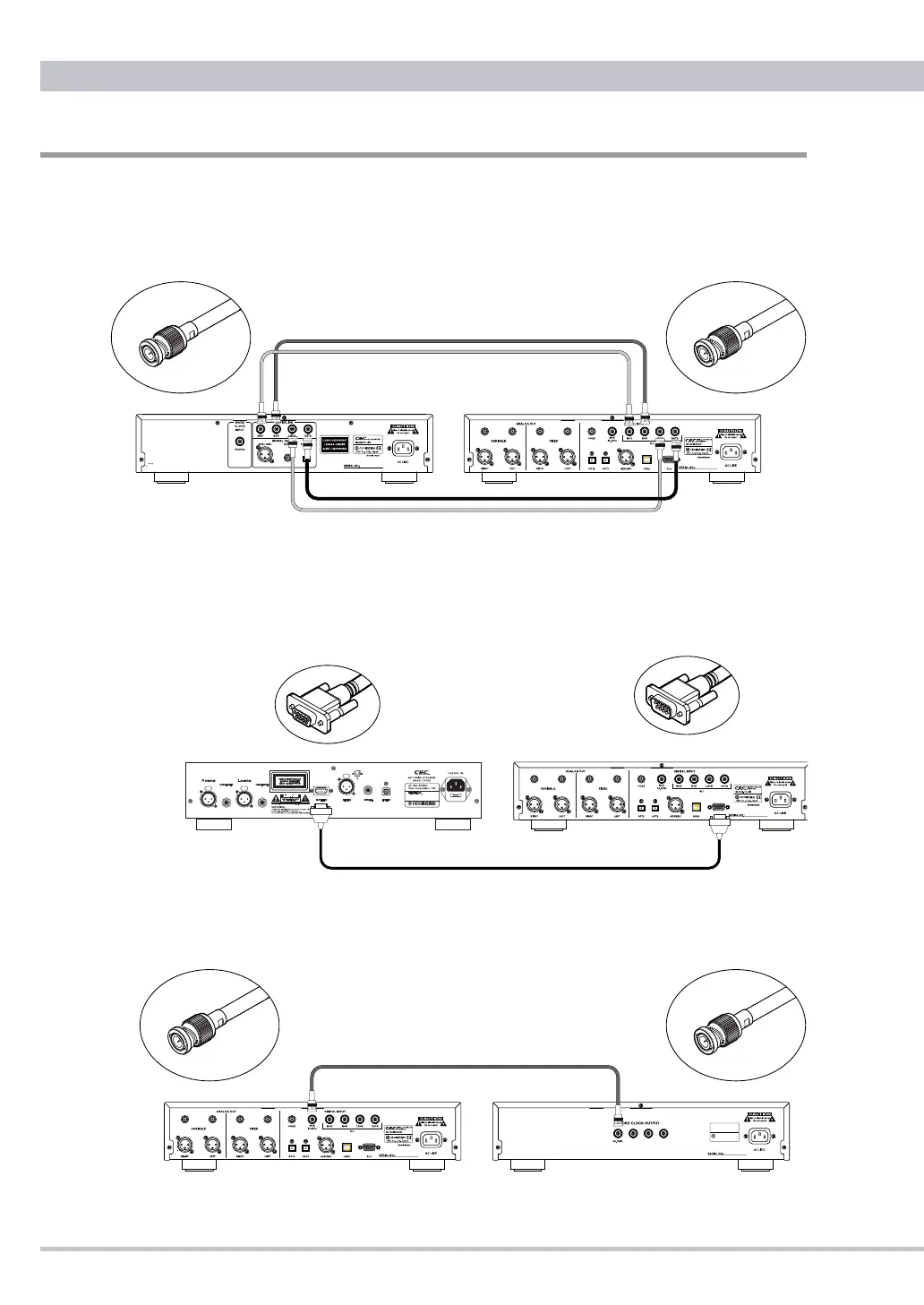

SUPERLINK Connection
/
BNC
75Ω BNC cables are supplied with DA3N.
Connect DA3N’s SUPERLINK terminals to the same marked terminals on
the CD Transport (TL1N or TL3N) with 75Ω BNC cables.
（
DATA
⇔
DATA
,
BCK
⇔
BCK
,
LRCK
⇔
LRCK
,
MCK
⇔
MCK
）
●
SUPERLINK Connection / D-SUB-9
Connect DA3N's SUPERLINK D-Sub terminal to a compatible CD-
Transport (i.e. TL51X). This is the older SUPERLINK standard. Note that
this connection is very sensitive to cable tolerances. You may ask your
dealer for the CEC original D-Sub-9 cable, which provides better results.
●
MCK 44.1kHz(Master Clock) Connection
Connect an external clock generator using a 75Ω BNC cable.
When SUPERLINK works, the external clock is activated.
How to connect
