Page #42 background image
42

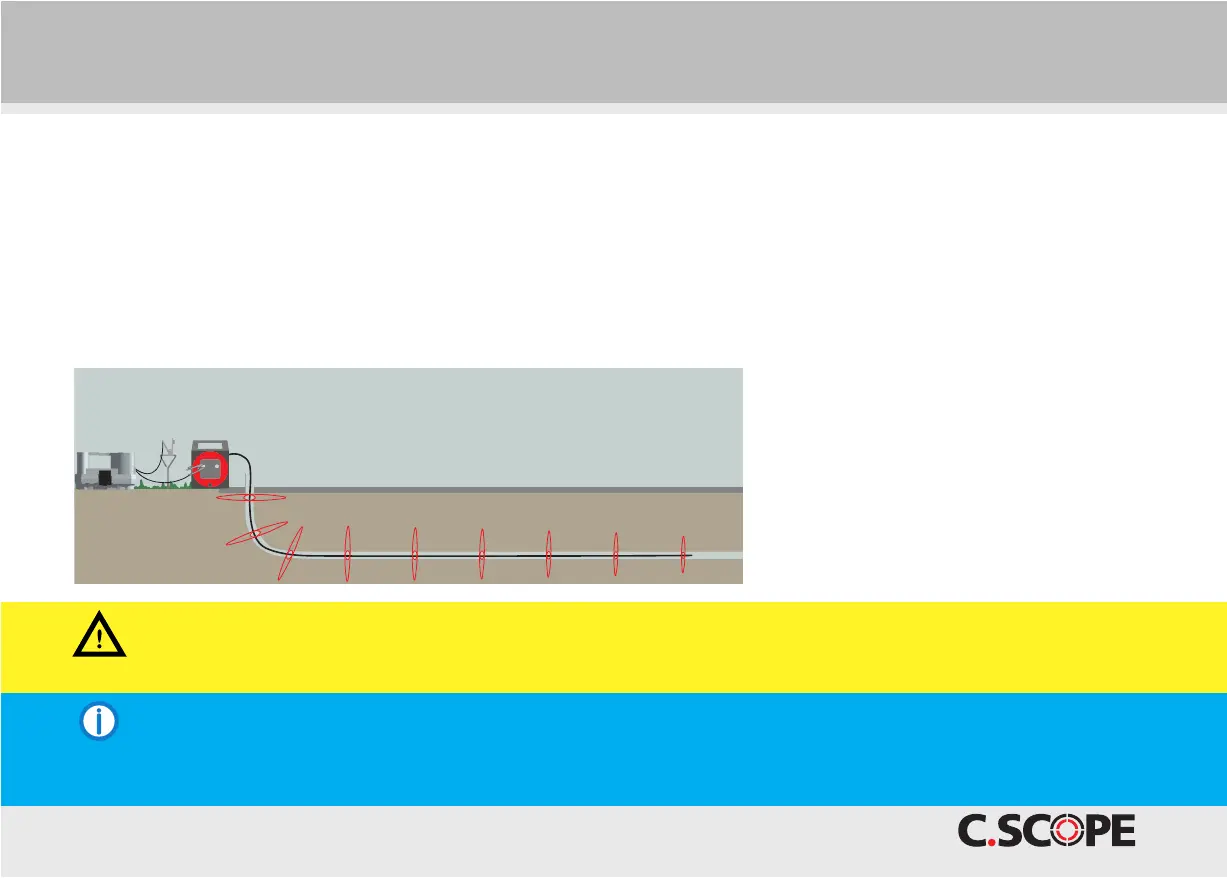

Line Tracing
The Plastic Pipe Tracers can be used in services up to 3 metres deep (Locator dependent) on line
tracing mode but cannot transmit through metal pipes or ducts.
The Plastic Pipe Tracer needs to be inserted into the pipe before a signal from the Generator/
Transmitter is applied to the length of the Tracer.
The CF Generator/ Transmitter signal is applied using the ‘Direct Connection to a metal pipe’
method as shown on page 25-26 of this manual. Only one lead is connected to the Plastic Pipe
Tracer, the other is connected to an Earth Stake.
NOTE It is important that a change of pitch is heard when making the connections to ensure that there is a
detectable signal present on the Tracer.
NOTE The Generator/ Transmitter signal is unlikely to travel the entire length of the Tracer within the pipe.
Never assume that you have located the end of the Tracer on Line Tracing Mode. Use End Tracing if required.
WARNING Authorisation may be required before using the Plastic Pipe Tracer on some services.
WARNING DO NOT touch the metal of the Crocodile Clips or the terminals of the Plastic Pipe Tracer
when using the Generator/ Transmitter.
Non-Metallic Pipe Tracing: Plastic Pipe Tracer
