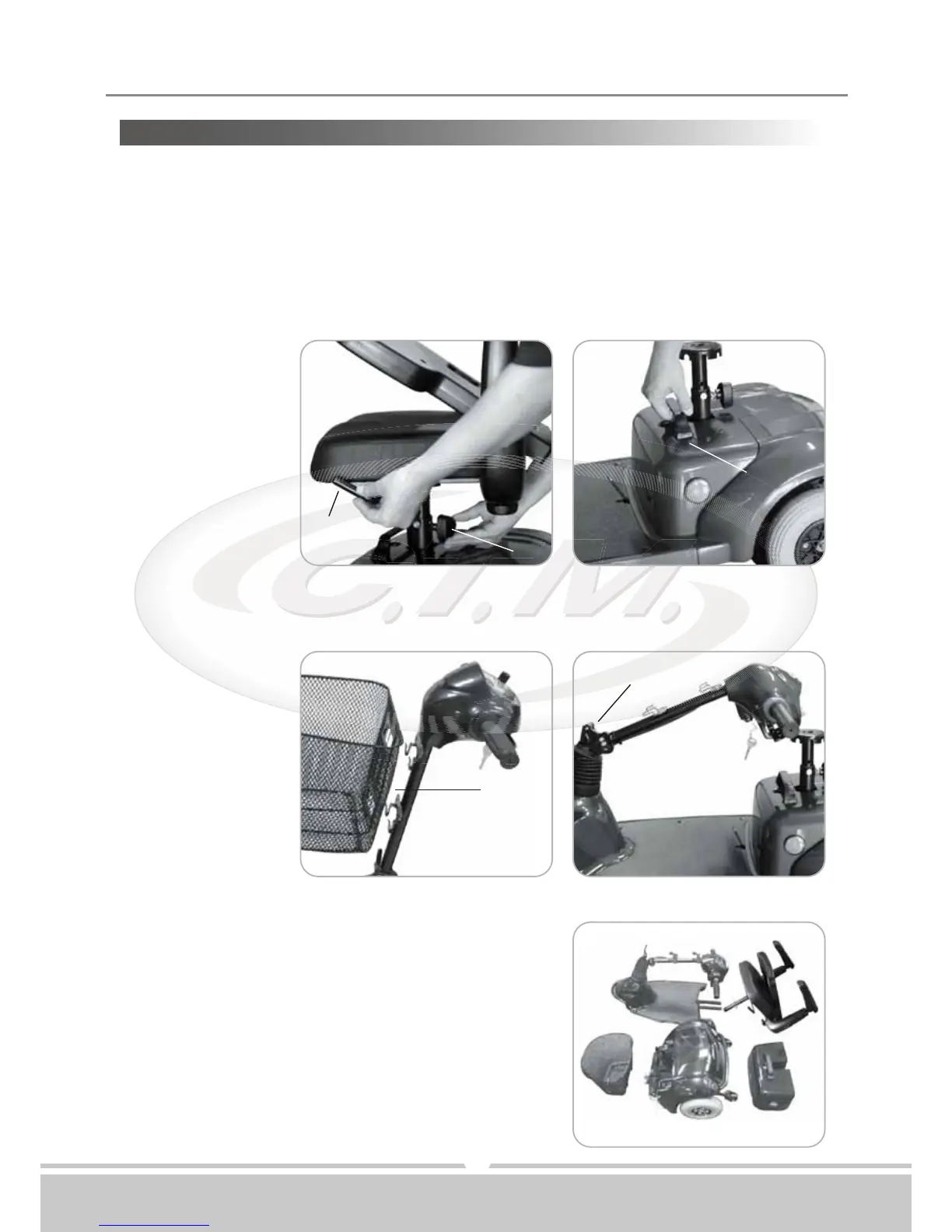

DISASSEMBLING YOUR SCOOTER
C.T.M. 2-series' compact design and light weight style making it fit easily into trunk or
b
ack seat of most cars for transportation. No tools are necessary to disassemble scooter.
Remove seat by loosening the Seat Lock Knob (A) and pulling Seat Rotation Lever (B)
upwards then lift off. (See Fig. 4)
U
se Battery Pack Handle (C) to pull battery pack up and off away from scooter. (See Fig. 5)
Remove Front Basket (D) and off to side. (See Fig. 6)
Loosen the Tiller Angle Adjustment (E) to lower tiller. (See Fig. 7)
Figure 4
Figure 4
Figure 5
Figure 5
(A)
(C)
Figure 6
Figure 6
Figure 7
Figure 7
(D)
(E)
(B)
There are 4 main parts after Disassembling scooter. (See Fig. 8)
Figure 8
Figure 8
