C.T.M. HS-115 - Ergonomic Features and Accessories

1-Series Instruction Booklet
8

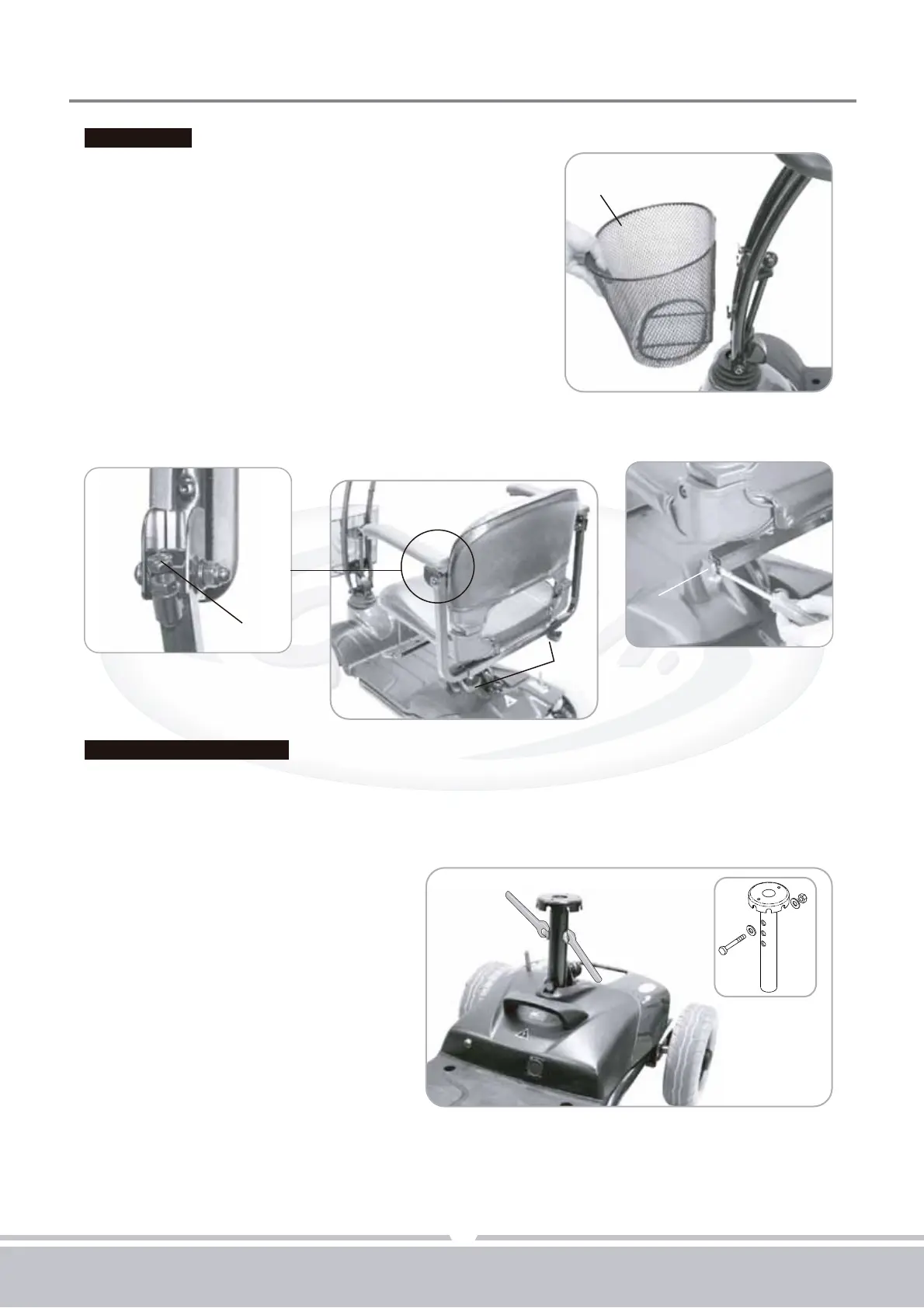

Accessories :
Basket assembling and disassembling :
Remove the Front Basket (J2) and place it off to the
side.
Armrest assembling and angle adjustment :
1.Remove plugs (J3) at both sides.
2.Assembling armrests.
3.Adjust armrest to most comfortable angle, then lock
with knob (J4).
4.Adjust screw's (J5) height, to control armrest's angle.
Seat Height adjustment :
1.Remove the seat, and then remove screw, nut and washer from seat post.
2.Adjust seat post to desired height, then attached tightly with screw, nut and washers.
3.Assemble the seat back to its original position.
Figure 10
Figure 10
(J4)
(J3)
(J5)
Figure 9
Figure 9
(J2)
Figure 11
Figure 11
