C.T.M. HS-115 User Manual

1-Series Instruction Booklet
7

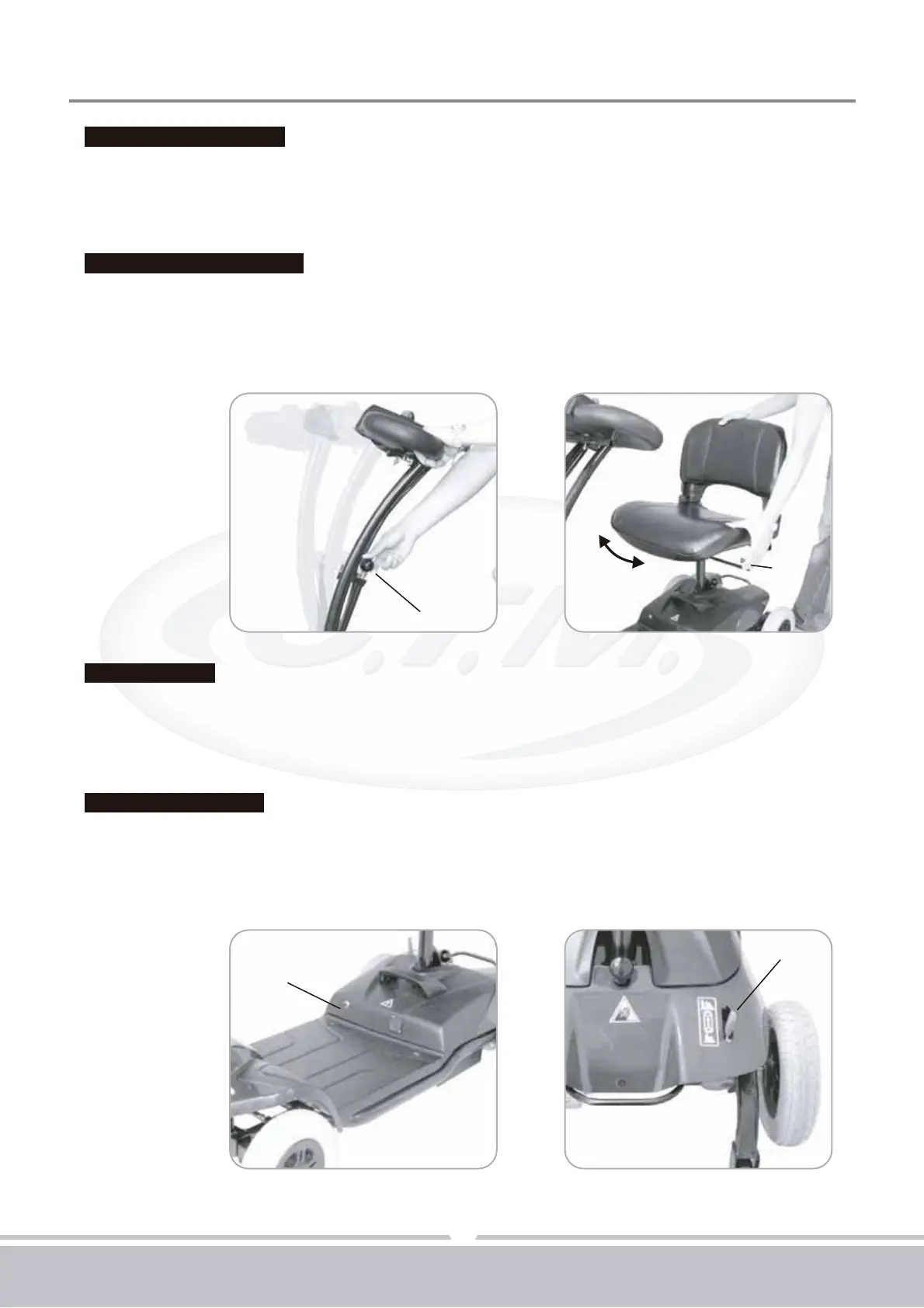

Tiller Angle Adjustment :
1.Lift up the lever (G) to disengage the pin.
2.Simultaneously, adjust the steering fore-aft to the most comfortable angle. Release lever
(G) and ensure the pin is fully engaged to lock the steering column in position.
Seat Rotation Adjustment :
1.Lift lever (H) upward to disengage pin.
2.Simultaneously, rotate seat (I) (or lift up to disassemble the seat) to the most comfortable
angle. Release lever (H) and ensure the pin is fully engaged to lock the seat in position.
Figure 6
Figure 6
(H)
(I)
Figure 5
Figure 5
(G)
Circuit Breaker :
If scooter's circuit system malfunctions or over loaded, the circuit system will automatic
shut down the power to ensure driver's safety. After the power is off, press button (J) to
regain power.
Free-Wheeling Lever :
To push scooter for short distances, put it in freewheel mode by pushing forward on free-
wheel lever to N.
This disables the drive system and brake system. To take the scooter
out of freewheel mode, pull the free-wheel lever backward to D to re-engage the drive and
brake system.
Figure 8
Figure 8
(J1)
Figure 7
Figure 7
(J)
