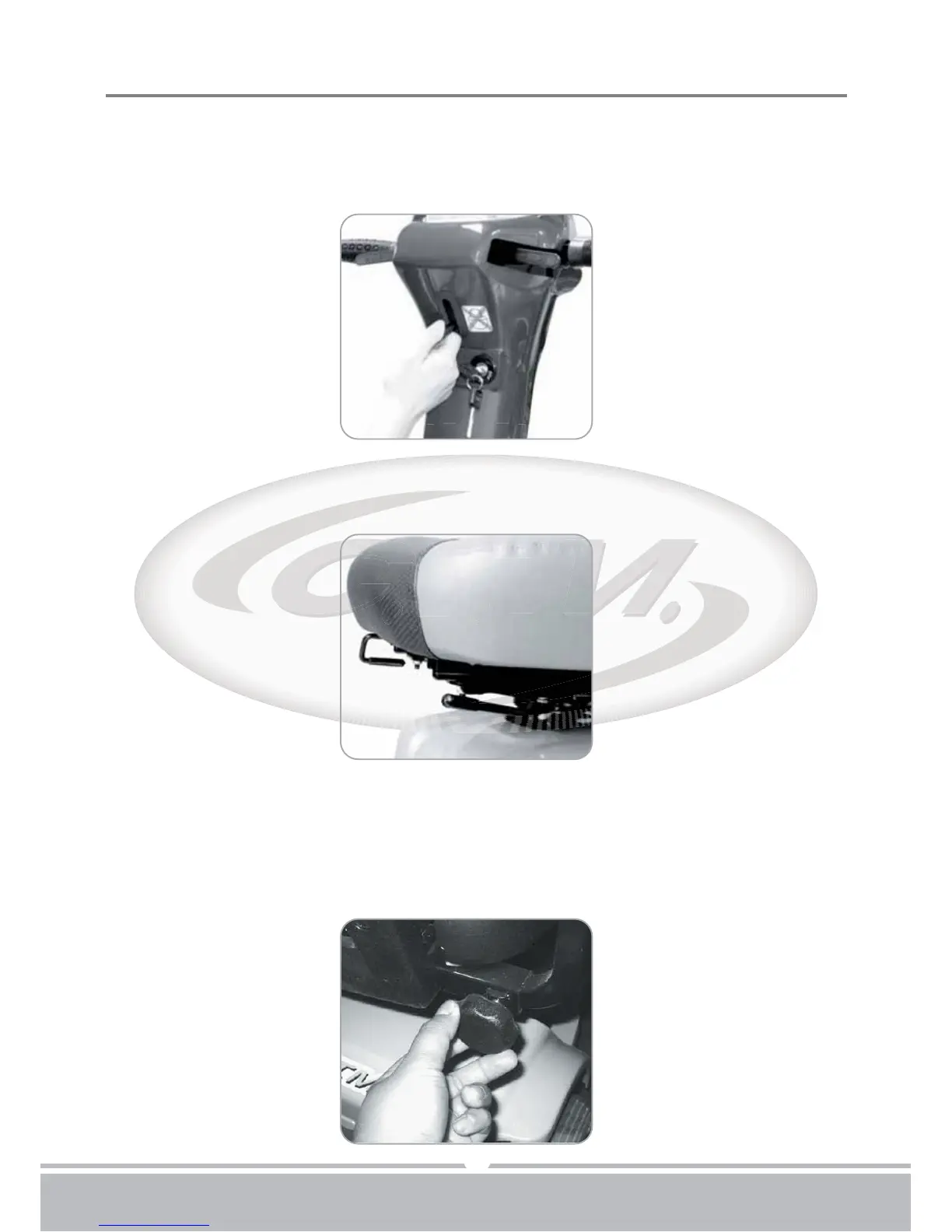

Figure 5
Figure 5
AT BASE OF STEERING TILLER
•Tiller Angle Adjustment
Push downward on the handle to loosen. Move the tiller to adjust and release the
handle to lock the tiller at a comfortable angle.
Figure 6
Figure 6
BELOW SEAT
•
Seat Sliding Lever
Lift the lever up to adjust the seat to either go forward or backward.
Figure 7
Figure 7
•Seat Rotation Lever
While sitting, push the lever counterclockwise to unlock the seat. The seat is able to
rotate in a 360-degree rotation. Pushing the lever clockwise will lock it in place.
•Armrest Width Adjustment Thumbscrews
Loosen the two thumbscrews to adjust the arm width; tighten again to lock in the
desired position.
