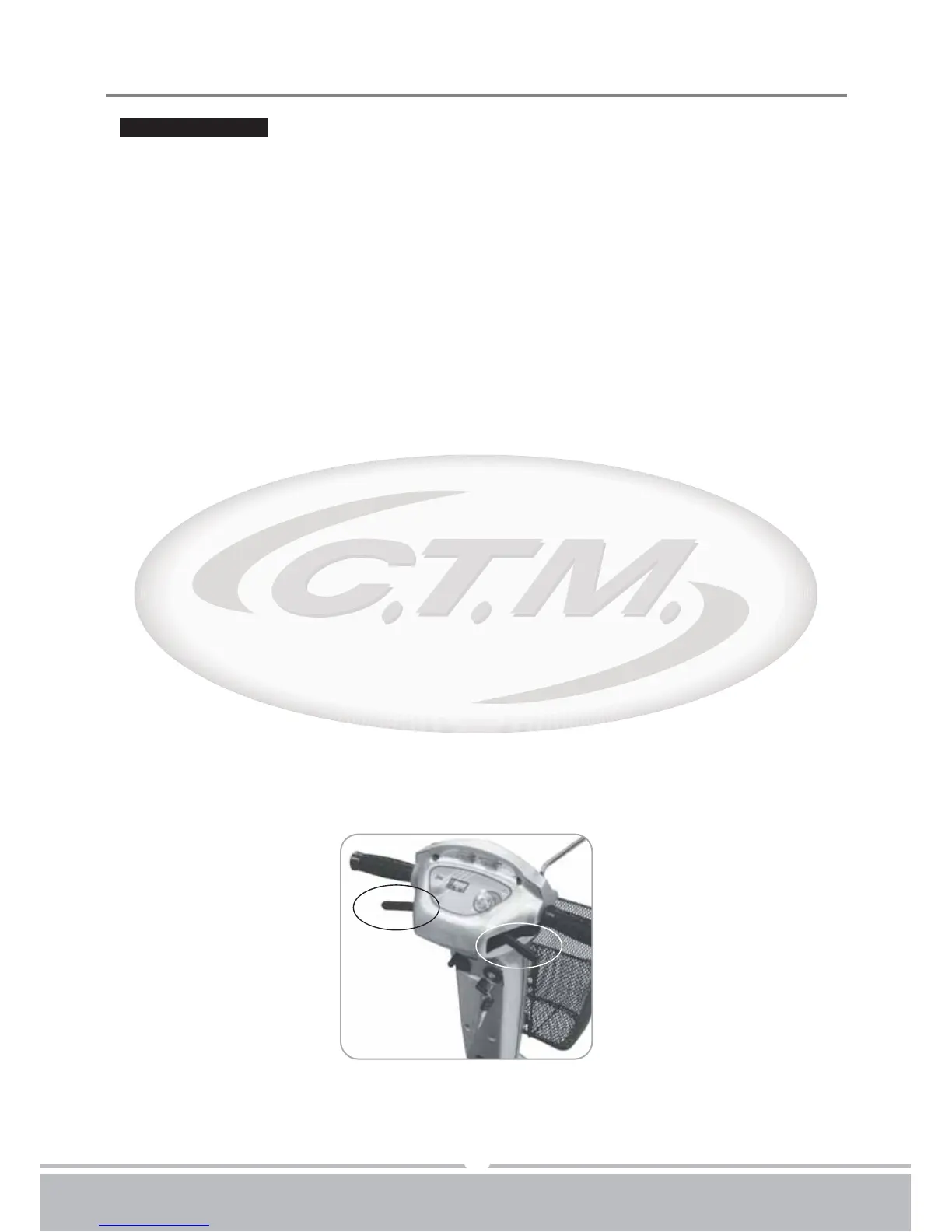

Figure 4
Function Of Parts：
TOP CONTROL PANEL
•Speed Control Knob
The rabbit means fast and the turtle means slow. By turning this knob, you can control
the total speed transferred to the thumb controls.
•Self Diagnostic Warning Lights
Flashing of a light on the control panel indicates there is a problem with the scooter.
See page 18 for more information.
•Battery Gauge
There are yellow LED lights that represent the battery's power. When all LED lights
are on, the batteries are fully charged. When any of the battery gauge lights are off,
the batteries need to be recharged.
ADJACENT TO TOP CONTROL PANEL
•Thumb Lever
Pushing the right thumb lever moves the scooter forward. Pushing the left thumb
lever moves the scooter in reverse. (This can be reversed if required by a local dealer.)
Releasing both engages the automatic brake. This lever is also your accelerator.
The further you depress the thumb lever, the faster you will go (note: subject to the
position of the rabbit/turtle control).
