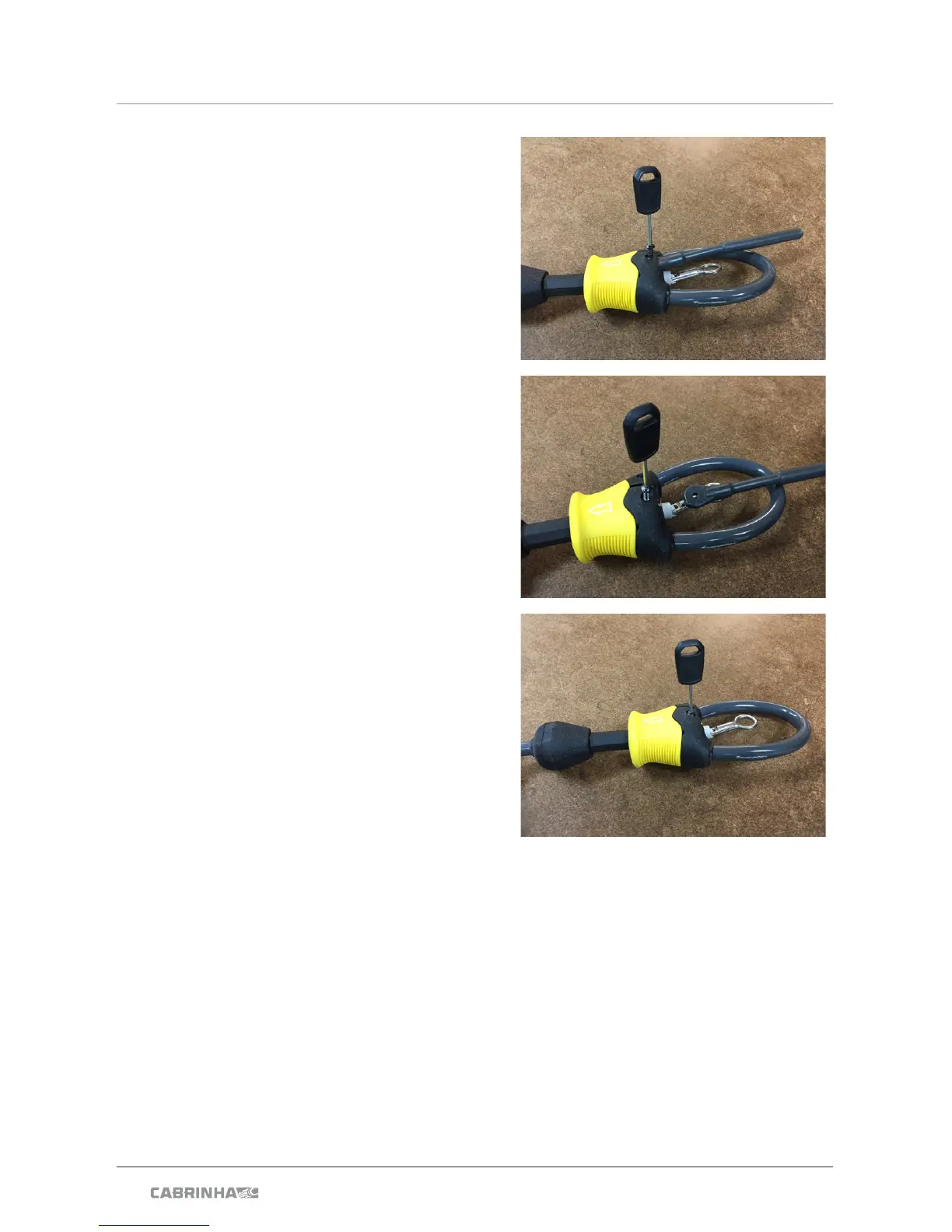

SECURITY PIN REMOVAL
• Using a 2mm Allen Key loosen and remove the
Security Pin Screw by rotating in a counter
clockwise direction. (FIG 4)
• Pull the Security Pin in a downwards motion
(from the Quickloop Body), this may require
some force and may need left to right move
ment. This will remove the Security Pin from
the Quickloop Body. (FIG 5).
• Reinsert the Security Pin Screw and tighten
into the Quickloop Body to avoid loosing it
(FIG 6).
SECURITY PIN – CONNECTION
• Using a 2mm Allen Key, loosen and remove
the Security Pin Screw.
• Insert the Security Pin into the cavity on the
bottom of the Quickloop body making sure
that the index dot is facing downwards.
• Using a 2mm Allen Key Re insert the Secu-
rity Pin Screw and using a Clockwise rotation,
tighten.
FIG 4
FIG 5
FIG 6
OPERATION
