18
2018 CONTROL SYSTEM USER MANUAL
FIREBALL
QUICK RELEASE SYSTEM (QRS)
You should be familiar with the operation of the
QRS in the event of a situation where you wish to
activate the QRS feature.
QRS - OPERATION
Grab the release body and fi rmly push away from
your body (in the direction of the arrow) until it
meets the bottom of the spinning handle (FIG 1).
Activating this primary quick release (QR1) will
still leave you attached to your kite via the 1X
Security line.
For complete separation from your kite, you will
need to activate Quick Release Handle on your
bypass leash. This is covered in detail in the
Bypass Leash Operation Page 18.

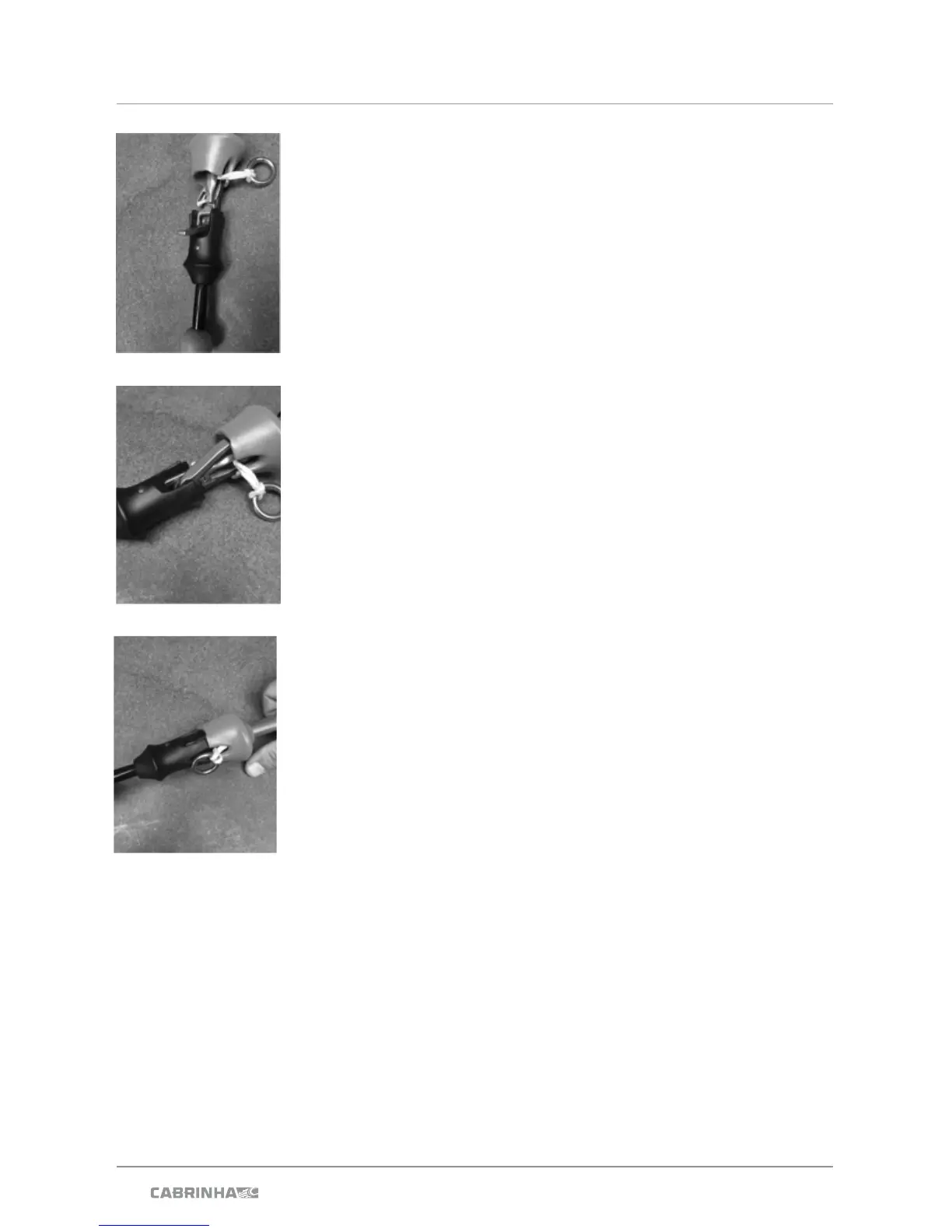

QRS - SETTING / RESETTING
• Slide the QR Pin through the Fireball Body
Trapezoid. (Fig. 1)
• Fold the pin back over itself. (Fig. 2)
• Lift the QR Body up the Handle Shaft. (Fig. 2)
• Lower the QR Body over the QR Pin. (Fig. 3)
• Your QR system is now ready for use.
OPERATION
FIG 4
FIG 1
FIG 2
