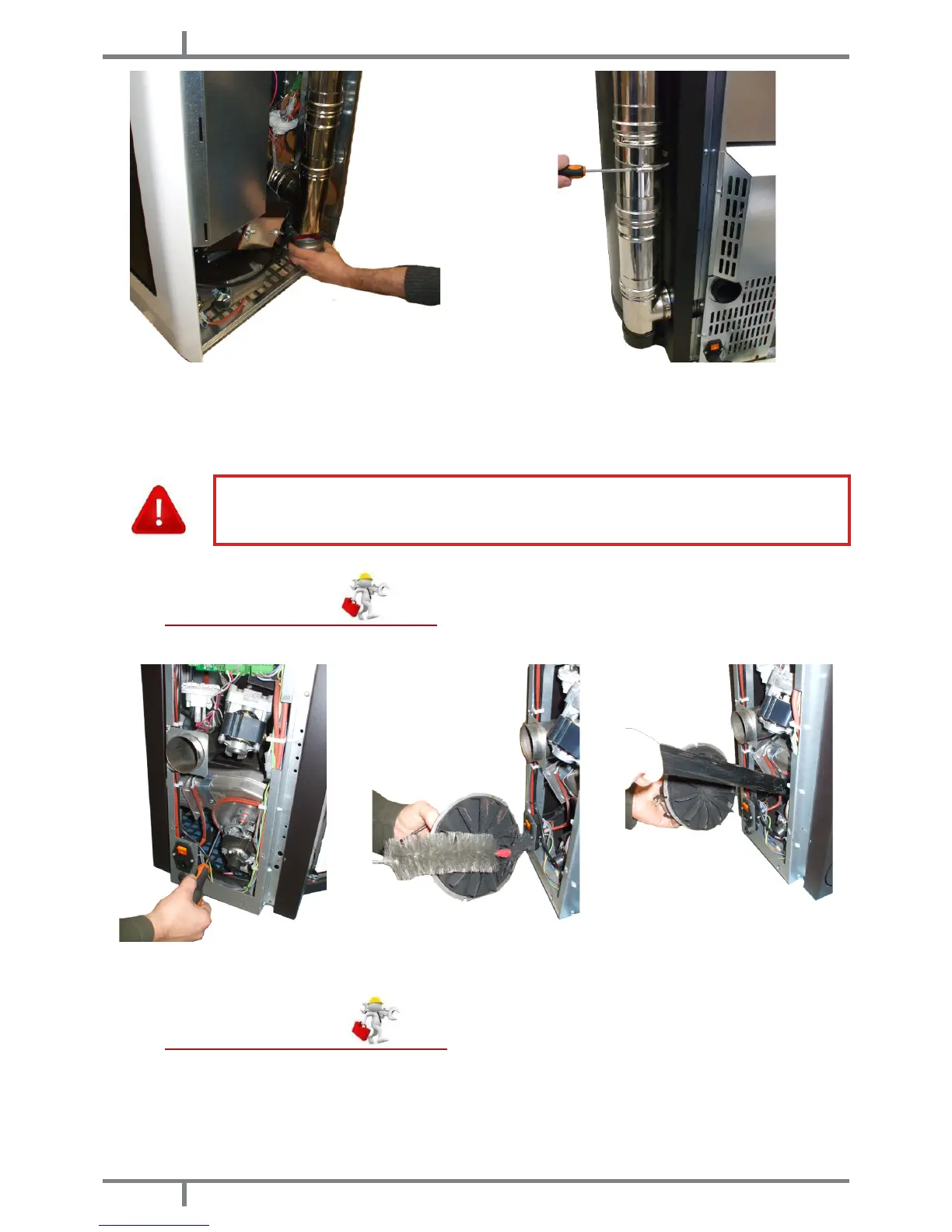

Fig. 74 - Fume conduit cleaning Fig. 75 - Fume conduit (Sfera
3
Plus, Sfera
3
, Globe, Elise
3
Plus)
• Remove the side panel as described in FUME CHAMBER AND FUME PASSAGES CLEANING page 33.
• Remove the inspection lid of the T-union (see Fig. 74 page 36 and Fig. 75 page 36).
• Extract the ash which has accumulated in the inner.
• After the cleaning repeate the opposite operation checking the integrity and eciency of the gasket: if
necessary have it replaced by an Autorized Technician.
It is important to sealed the cap othrwise noxiuous fumes will propagate among the room.
14.6 FUME FAN CLEANING
Clean every the year the fume fan from ash or dust which can cause a blade unbalance and a greater noise.
Fig. 76 - Fume fan cleaning: phase1 Fig. 77 - Phase 2 Fig. 78 - Phase 3
• Follow the process as describer in Fig. 76 page 36, Fig. 77 page 36 and Fig. 78 page 36.
14.7 ROOM FAN CLEANING
Clean every the year the room fan from ash or dust which can cause a blade unbalance and a greater noise.
