11.3 GENERAL INSTALLATION

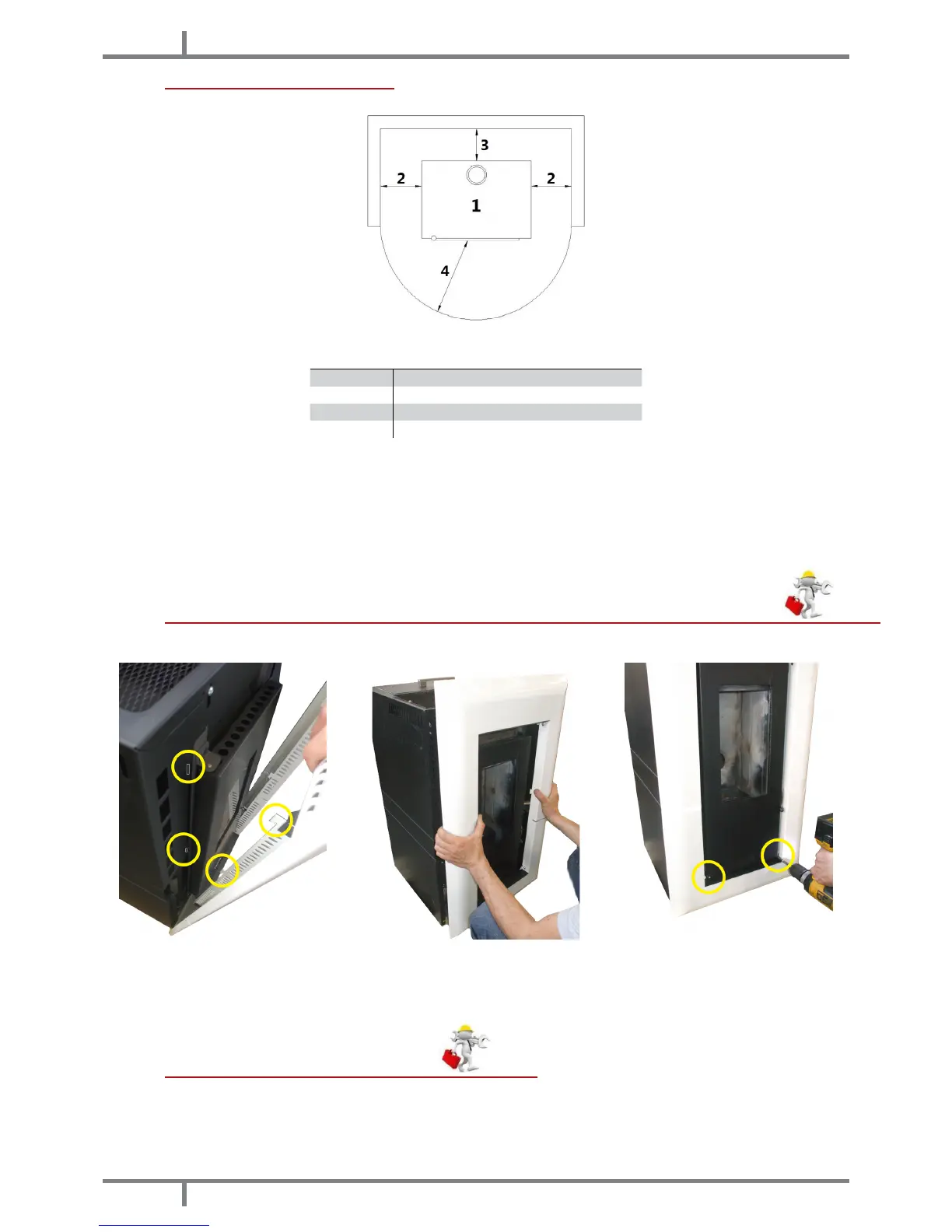

Fig. 20 - General installation
LEGEND Fig. 20 page 20
1 Stove
2 Minimum lateral distance = 300 mm
3 Minimum rear distance = 200 mm
4 Minimum front distance = 1000 mm
It is obligatory to install the stove away from walls and/or pieces of furniture, with a minimum air ow of 300 mm
on the sides and 200 mm on the back, to enable an ecient appliance cooling and a good distribution of heat
in the room (see Fig. 20 page 20).
If the walls are made up of ammable materials, check the safety distances (see Fig. 20 page 20).
At maximum power check that the wall temperature does not ever exceed 80°C. If it would be necessary please
install a re resistant plate on the concerned walls.
In some countries also masonring load-bearing walls are considered ammable.
11.4 FRONTAL PANEL ASSEMBLY (VEGA / TREND / PRINCE
3
/ PRINCE
3
PLUS MODELS)
For frontal panel installation, proceed as follows:
Fig. 21 - Frontal panel assembly Fig. 22 - Frontal panel position Fig. 23 - Frontal panel xing
• Hook the frontal panel cogs at its specic holes (see Fig. 21 page 20).
• Place the frontal panel in the correct position (see Fig. 22 page 20).
• Fix the frontal panel by tightening two screws in the lower part (see Fig. 23 page 20).
11.5 TILE ASSEMBLY (SIRE
3
PLUS MODEL)
Proceed as follows to assemble the tiles:
