9.2 CHIMNEY FLUE

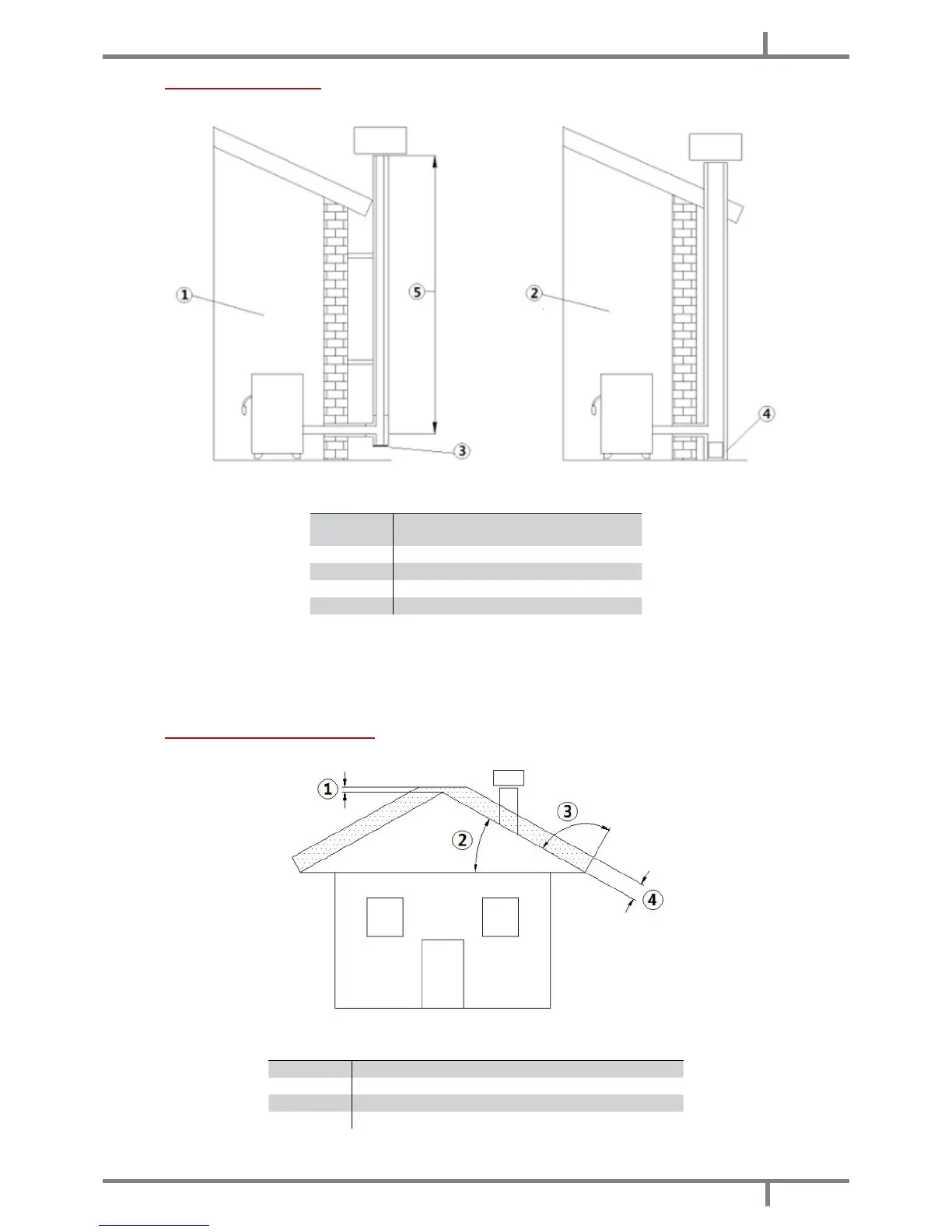

Fig. 1 - Chimney Flues
LEGEND Fig. 1 page 7
1
Chimney ue with insulated stainless-steel
pipes
2 Chimney ue on the existing chimney
3 Inspection plug
4 Inspection door
5 ≥ 3,5 mt
• The chimney ue or chimney is of great importance for the correct running of the heating appliance.
• It is fundamental that the chimney ue is perfectly built and always maintained with a perfect efciency.
• The chimney ue must be sole (see Fig. 1 page 7) with insulated stainless-steel pipes (1) or installed on the
existing chimney ue (2).
• Both this solutions must be endowed with an inspection plug (3) and/or an inspection door (4).
9.3 TECHNICAL FEATURES
Fig. 2 - Inclined roof
LEGEND Fig. 2 page 7
1 Height over the ridge of the roof = 0,5 mt
2 Roof inclination ≥ 10°
3 90°
4 Measured distance at 90° from the roof surface = 1,3 mt
• The chimney ue must be sealed from fumes.
