Vehicle Care 269

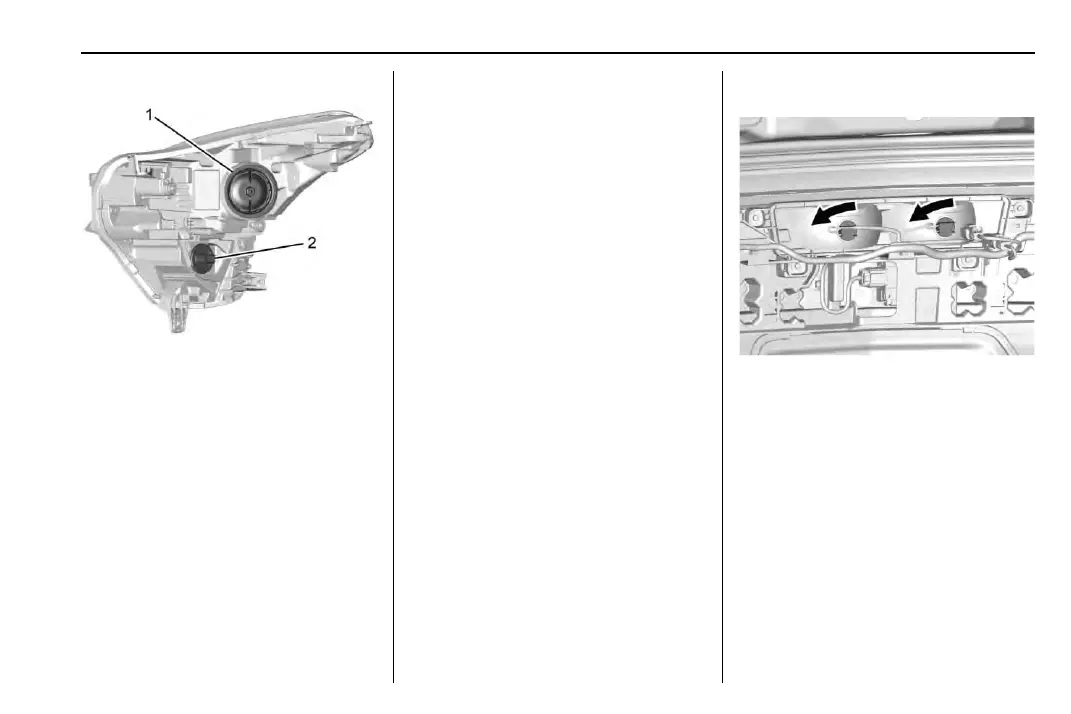

Headlamps
Driver Side Shown, Passenger
Side Similar
1. Headlamp
2. Turn Signal Lamp
High-Beam Headlamp/Low-Beam
Headlamp
1. Open the hood. See
Hood 0 251.
2. Remove the headlamp bulb
access cover.
3. Turn the bulb counterclockwise
and pull straight back.
4. Disconnect the wiring harness
connector from the bulb.
5. Install the new bulb in the
headlamp assembly by turning
clockwise.
6. Reconnect the wiring harness
connector.
7. Install the headlamp bulb
access cover.
Turn Signal Lamp
1. Open the hood. See
Hood 0 251.
2. Remove the turn signal lamp
bulb socket from the headlamp
assembly by turning
counterclockwise.
3. Remove the bulb from the bulb
socket by pulling it straight out.
4. Install the new bulb in the bulb
socket.
5. Install the bulb socket into the
headlamp assembly by turning
clockwise.
Back-Up Lamps
1. Locate the back-up lamp
assembly underneath the rear
fascia.
2. Remove the bulb from the lamp
assembly by turning it
counterclockwise and pulling
straight out.
3. Remove the bulb and replace.
4. Reverse Steps 2 and 3 for
assembly.
