Cafe CDD420P2TS1 - Installation Method A: Securing; Secure to Side Cabinets; Secure to Top Cabinets

13
(x2)

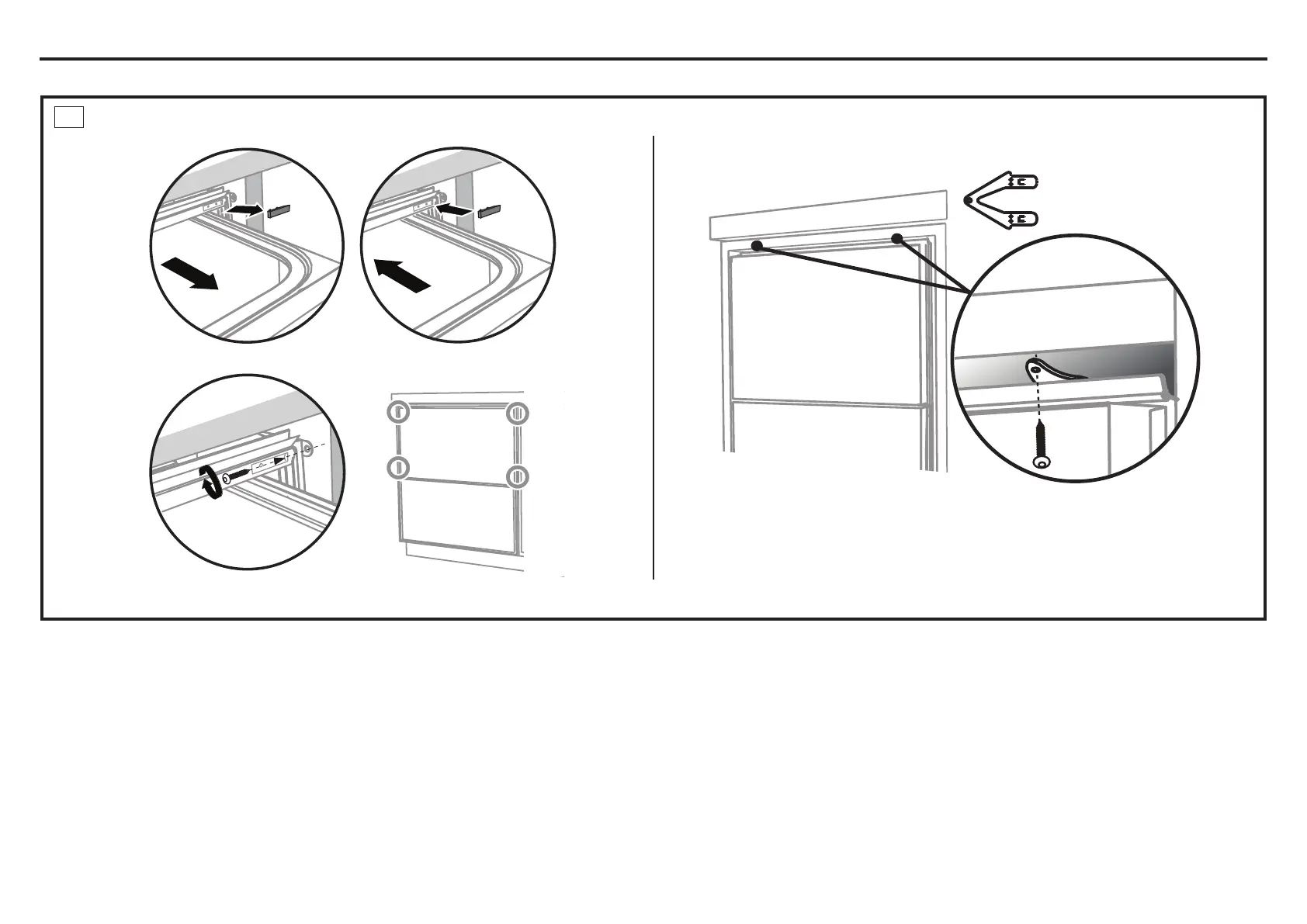

Open the
drawer
halfway.
Using a
flat bladed
screwdriver,
pry the
grey rubber
plug out
of the trim
moulding.
Replace the
grey rubber
plug back
into the trim
moulding
and ensure
the trim seal
is facing
forward.
Using a small
Philips
screwdriver,
screw
through the
trim moulding,
securing the
side mounting
bracket to the
cabinetry.
Do not damage
the rubber trim seal.
The top mounting
brackets will only
bend upwards a
maximum of 10 mm.
Installation Instructions
OPTION A - RECOMMENDED
(
CONTINUED
)
A3
SECURE TO THE SIDE CABINETRY - OPTION
SECURE TO THE ABOVE CABINETRY - OPTION
AFTER SECURING, REFER TO THE, “FIT THE SUPPLIED TOEKICK PANEL” STEP
2
1
3
4
Repeat for all
four brackets.
