Cafe CDD420P2TS1 - Product Dimensions

8
B
D
O
E
N
F
A
C
M
L
G
J
I
H
K

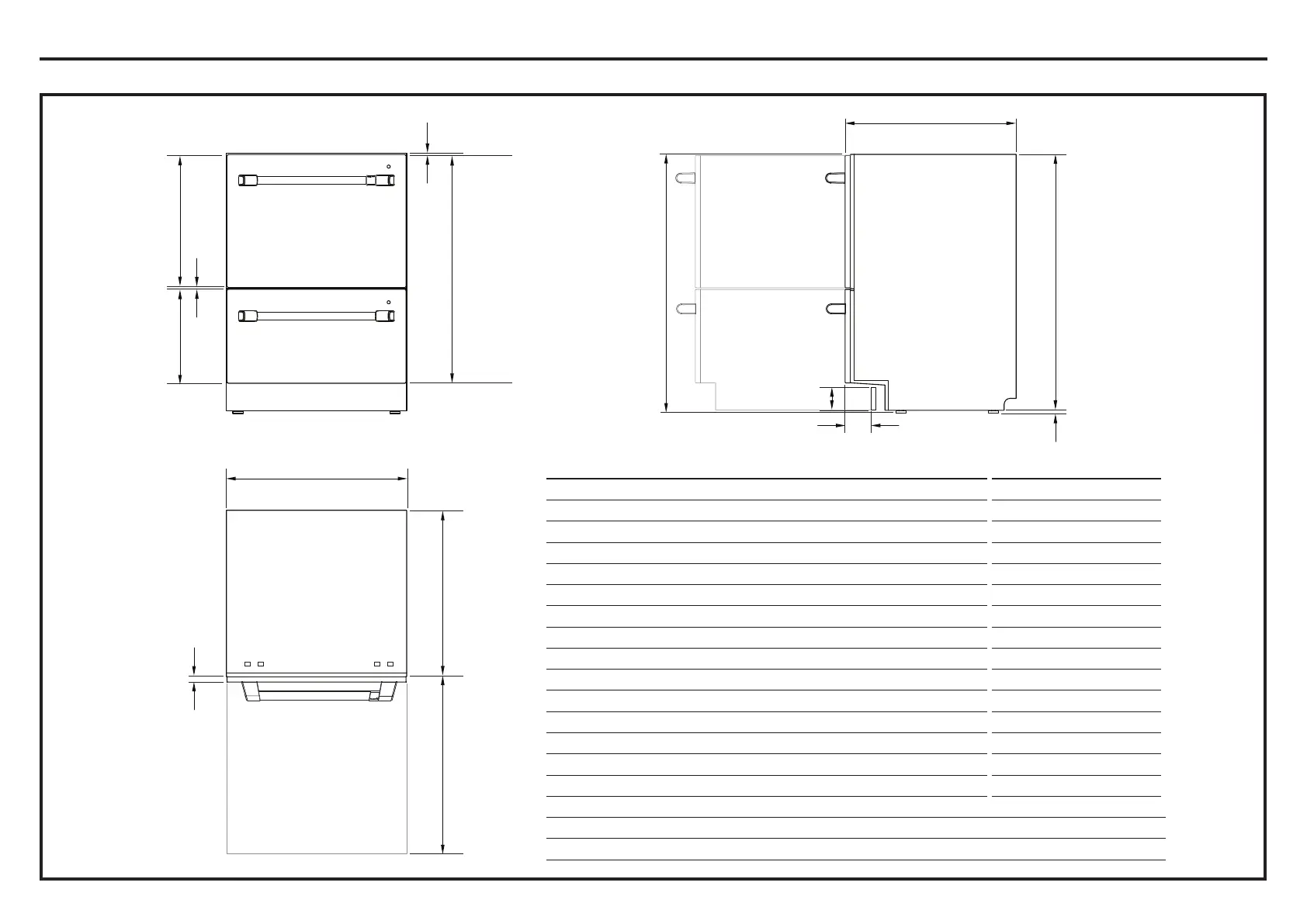

PLAN
SIDEFRONT
PRODUCT DIMENSIONS INCHES (MM)
A Overall height of product
1
34 - 36 3/8” (864-924)
2
B Overall width of product 23 9/16” (599)
C Overall depth of product (excl. handle) 22 9/16” (573)
D Depth of chassis (to back of front drawer panel) 21 3/4” (553)
E Depth of drawer front panel (excl. handle) 13/16” (20)
F Height of chassis
1
33 11/16” (855)
G Height of drawer front panels 30” (762)
H Height of upper drawer front panel 17 3/8” (442)
I Height of lower drawer front panel 12 1/4” (312)
J Height from top of drawer front panel to top of chassis 1/16” (2)
K Ventilation gap between drawer front panels 5/16” (8)
L Height of toekick (customizable) 2 13/16 - 5” (72-127)
M Depth from front of drawer panel to front of toekick (adjustable)
3
1 1/2 - 4” (38-102)
N Height of leveling feet (adjustable) 3/8 - 2 3/4” (9-69)
2
O Maximum extension of drawer 21 9/16” (547)
1
includes 1/16” (2mm) high bracket slots
2
depending on adjustment of leveling feet
3
adjustable to match toekick recess on adjoining cabinetry
PRODUCT DIMENSIONS
Installation Preparation
