7
Installation Preparation
OPTIONAL - HARD WIRING PRIOR TO INSTALLATION - CONTINUED
4” (100 mm)

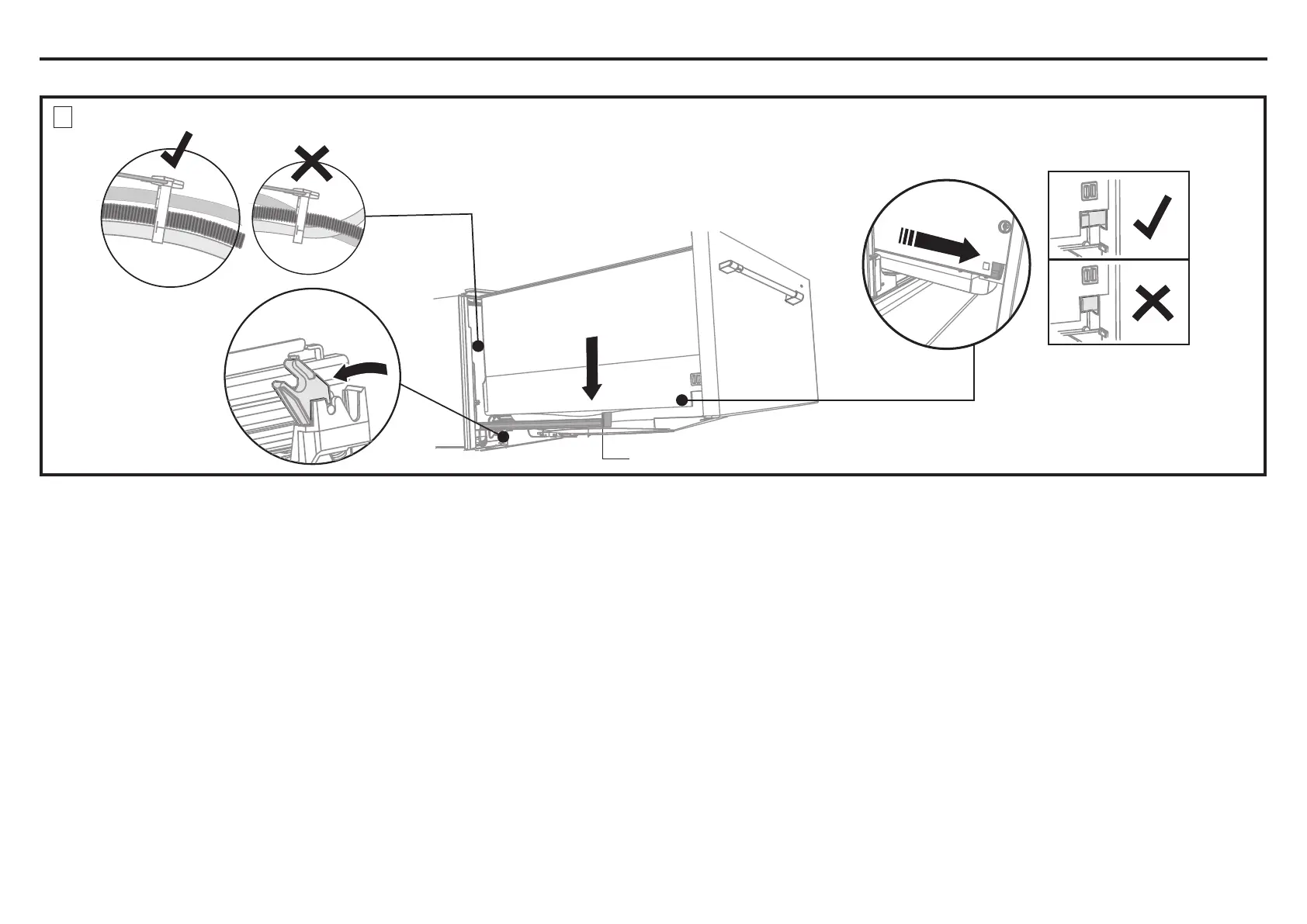

Pull the release tabs forward on both
sides 4” (100 mm). Ensure the tabs are
fully pulled forward and click into place.
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing
forward.
Lift or rotate counter-clockwise the
drawer back onto the drawer runners
on either side.
Release tab
4
REFIT THE DRAWER ONTO THE RUNNERS AND CLOSE
1
2
3
4
To Next Page
