18
1
2
min. R 8”
(200 mm)
IMPORTANT
Ensure that drain connection
will comply with local
plumbing regulations.
IMPORTANT
We recommend the use of a
commercially available Dual (Double) Air
Gap/Break Kit.
This provides totally separate draining
for each drawer and eliminates possible
“cross draining” problems
37 3/8” (950 mm)
Max. height to top
of Air Break
(countertop or
wall mounted)
NOTE:
See, the
“CONNECT
INLET HOSE
TO HOT
WATER” step.
Drain hose
Drain hose
Secure both drain hoses
to a Dual Air Gap/Break
Installation Instructions
THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS - CHOOSE WHICH IS MOST SUITABLE

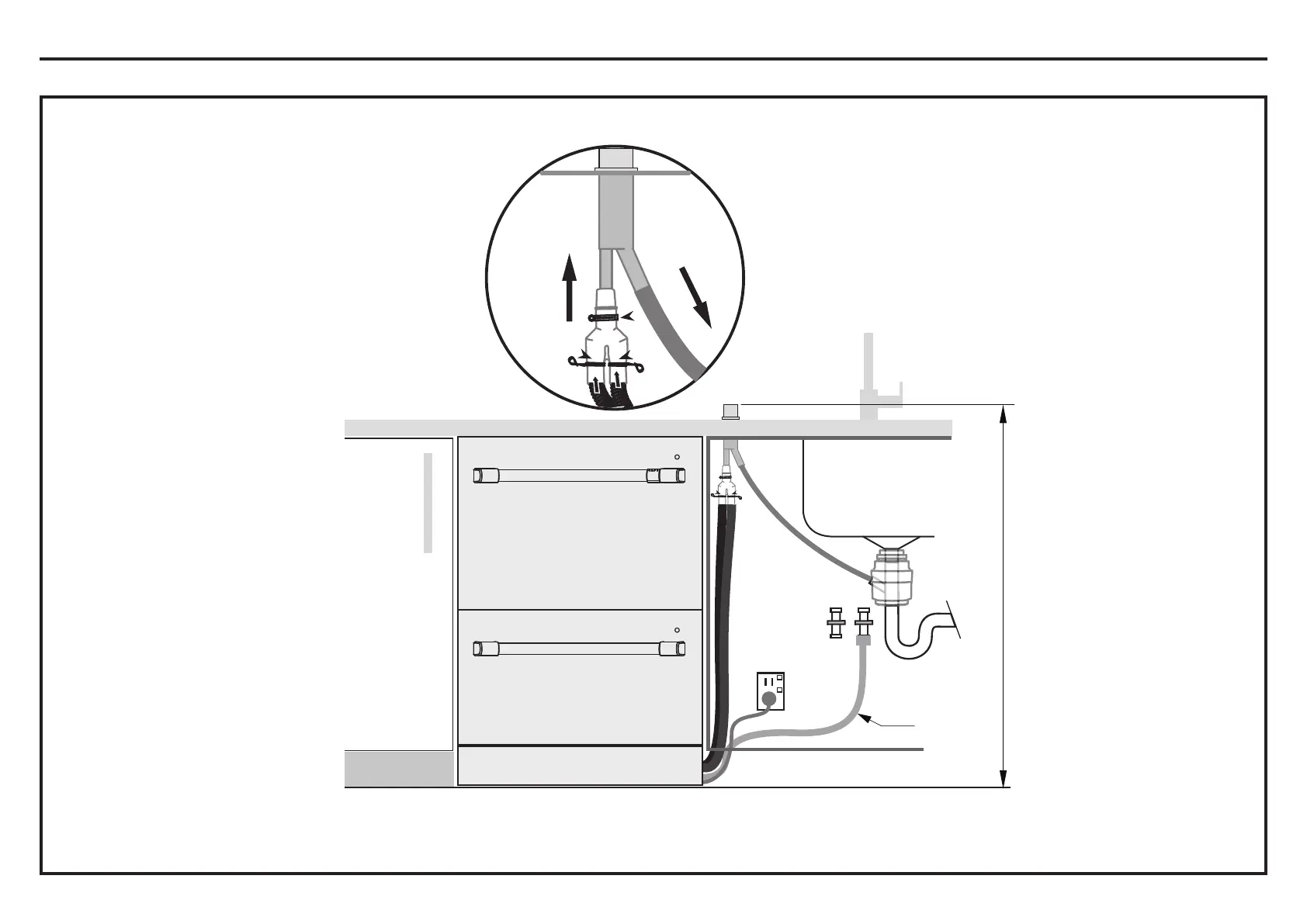

DRAINAGE OPTION 2 - Dishwasher using Dual Air Gap/Break with Drain Hose Joiner
To Next Page
