INDEX INSTRUMENT PANEL FEATURES
FUNCTIONS MENU 3
GETTING STARTED 4
Initial Set-up 4
AUTOTUNE 4
Tune or tune at setpoint program 5
PROPORTIONAL CYCLE-TIME 5
Cycle-time recommendations 5
PROGRAMMER 5
Ramp-Soak 5
SECOND SETPOINT (SP2) 6
Error messages 6
FUNCTION LIST 7
Level 1 7
Level 2 7
Level 3 8
Level 4 9
MECHANICAL INSTALLATION 9
DIN panel cut-out 9
Mounting 9
Cleaning 9
ELECTRICAL INSTALLATION 10
Sensor selection 11
SPECIFICATION 11
SAFETY AND WARRANTY 12
2

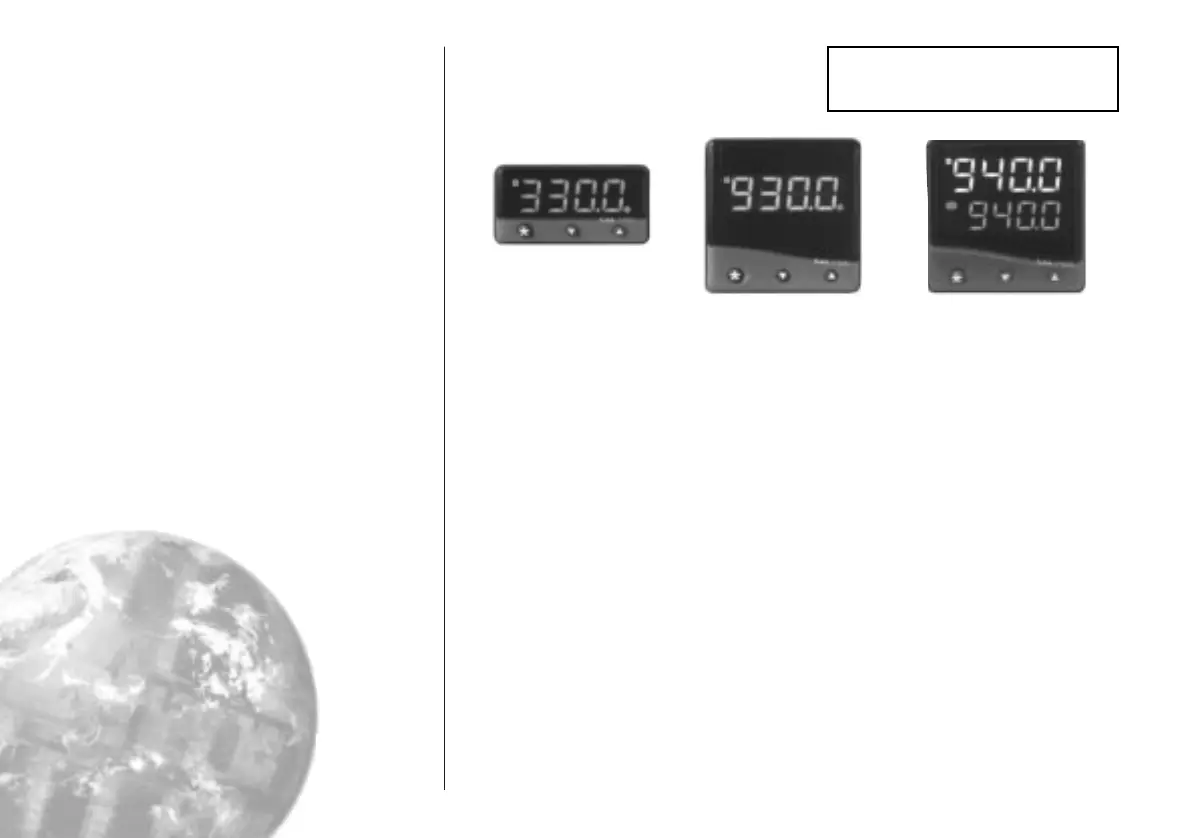

Green Display: Process temperature or program Function/Option
Orange Display: Setpoint temperature or program Option (9400 only)
Green LED: Setpoint 1 output indicator
Red/Orange LED: Setpoint 2 output indicator
ADJUSTMENTS
To enter or exit program mode: Press ▲ ▼ together for 3 seconds
To scroll through functions: Press ▲ or ▼
To change levels or options: Press ✱ ▲ together or ✱ ▼ together
To view setpoint: Press ✱
To increase setpoint: Press ✱ ▲ together
To decrease setpoint: Press ✱ ▼ together
To reset an alarm or fault condition: Press ▲ ▼ together briefly
Notes: If in difficulty by becoming “lost” in program mode, press ▲ and ▼ together for 3
seconds to return to display mode, check the INSTRUMENT ADJUSTMENTS above and
try again.
When in program mode, after 60 seconds of key inactivity the display will revert to
either
inPt : nonE
or, if the initial configuration has been completed, the measured
value. Any settings already completed will be retained.
This page can be photocopied and
used as a visual aid and bookmark when
working in other parts of the manual.
!
