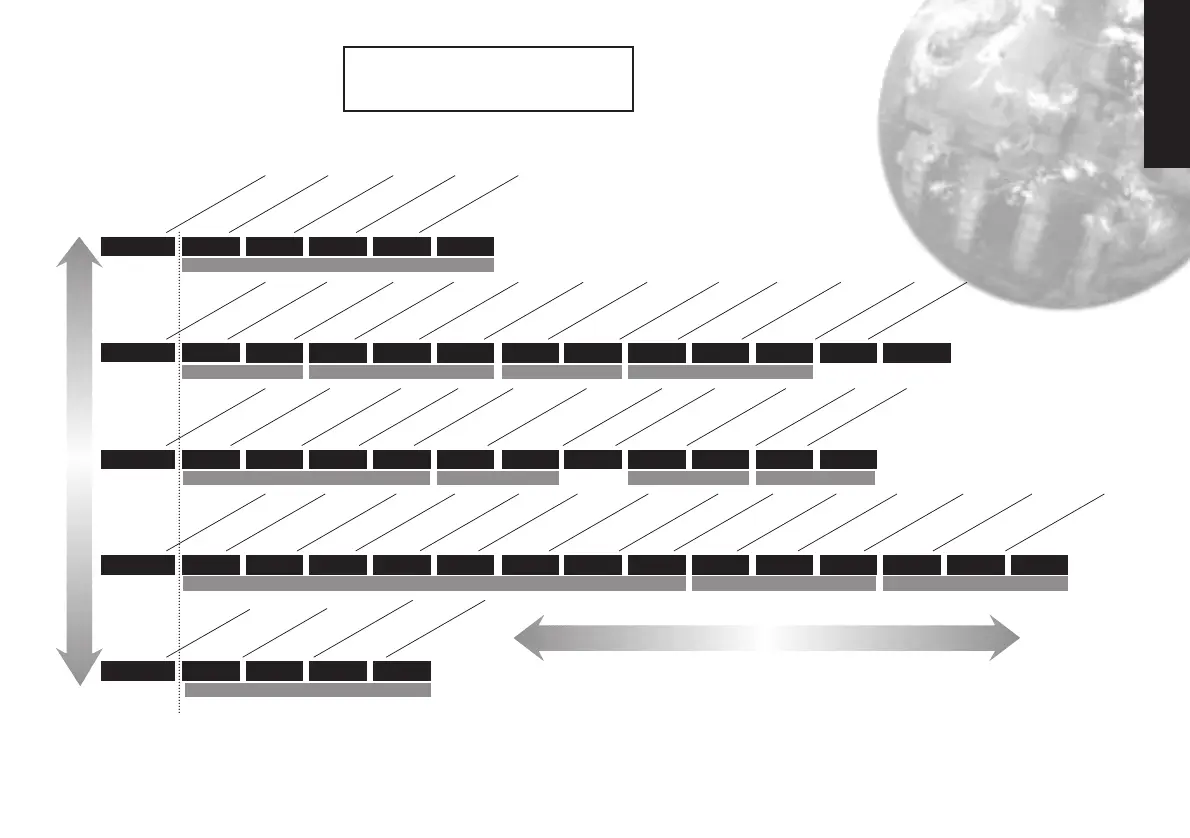

FUNCTIONS MENU
Range of Adjustment shown under description.
If applicable, factory settings shown in bold.
Note: The letter K appears in the instrument display
as the character K
BAND INT.T DER.T DAC CYC.T OFST SP.LK SPRR SPRN SOAK SET.2 BND.2 CYC.2
LEVL 1
TUNE
Autotune or Park
oFF; on; ParK; At.Sp
SP1 Prop band (gain)/hyst
0.1 deg to 25% sensor f/s
(10°C/18°F)
Integral time (reset)
Off; 0.1 to 60 min (5 min)
Derivative time (rate)
Off; 1 to 200 sec (25 sec)
Derivative approach
0.5 to 5.0 x bAnd (1.5)
Cycle time or on/off
On.off; 0.1 to 81 sec
(20 sec)
Offset (manual reset)
0 to 50% x bAnd
(In.t = off)
Setpoint lock (SP1)
Off; on
Setpoint Ramp rate
0 to 9990 deg/hour
Ramp off/on
On; off; hold
Soak time
Off; 0 to 1440 min
Adjust SP2 setpoint
+/– sensor full scale or
full scale
SP2 prop band/Gain/Hyst
0.1 deg to 100% sensor
f/s (2°C/3.6°F)
SP2 Cycle on/off
On.off; 0.1 to 81 sec
SP1 SETTINGS
BAUD DATA DBUG
LEVL C
ADDR
Instrument address
0 to 255
Baud rate
1200: 2400: 4800:
9600: 19k2
Data format
18n1:18E1:18O1
Tx/Rx activity
Off; on
COMMS SETTINGS
PROGRAMMER SETTINGS SP2 SETTINGS
HAND PL.1 PL.2 SP2.A SP2.B DISP HI.SC LO.SC INPT UNIT
LEVL 2
SP1.P
Read SP1 output %
0 to 100% read only
SP1 manual output %
0 to 100% proportional
mode only
Limit SP1 output %
100 to 0%
Limit SP2 output %
100 to 0%
Main SP2 mode
nonE; dV.hi; dV.Lo; bAnd;
FS.hi; FS,Lo; Cool
Second SP2 mode
nonE; LtCH; hold; Lt.ho;
nLin
Display resolution
1 or 0.1 degree
Set scale maximum
0.0 Sensor max to
sensor full scale
Set scale minimum
0.0 Sensor min to sensor
full scale
Select input sensor
nonE
Select display units
nonE; °C; °F; bAr;
PSi; Ph; rh; SEt
MANUAL ADJUSTMENTS SP2 MODES RANGING CONFIGURE INPUT
SP2.D BURN REU.D REU.L SPAN ZERO CHEK READ TECH
UER
RSET
LEVL 3
SP1.D
SP1 output device
nonE; rlY; SSd
*
SP2 output device
nonE; SSd; rlY (read only)
*
Sensor burn-out
uP.SC; dn.SC; 1u.2d; 1d.2u
Reverse outputs
1r.2d; 1d.2d; 1r.2r; 1d.2r
Reverse O/P LEDs
1n.2n; 1i.2n; 1n.2i; 1i.2i
Span adjustment
0.0 to 25% sensor f/s
Zero Adjustment
0.0 to 25%
sensor full scale
Set Monitor
Off; on
Read Monitor
VAr; hi; lo deg
Read Tune Data
CtA; Ctb; Ct1; Ct2; Ct3;
Ct4; oS1; uS; oS2
Software version
Consult unit
RESET
nonE; ALL
CONFIGURE OUTPUT SAFETY SETTINGS CALIBRATION PERFORMANCE DATA
PROG NO.AL DIS.S DER.S
LEVL 4
LOCK
Security lock
nonE; LEV 3; LEV 2; ALL
Disable program auto-exit
Auto; StAY
Disable -AL- alarm display
Off; on
Display averaging
dir; 1 to 32 (6)
Derivative sensitivity
0.1 to 1.0 x dEr.t (0.5)
USER-PROTECTED SETTINGS
PROGRAM ENTRY
Level C only visible
when COMMS
Option fitted
➔
INITIAL SET-UP ENTRY
➔
KEY ▼ ▲ TO VIEW FUNCTIONS
KEY ✱ ▼ OR ✱ ▲ TOGETHER TO CHANGE LEVELS OR OPTIONS
This page can be photocopied and
used as a visual aid and bookmark when
working in other parts of the manual.
!
