Mark and Drill Door

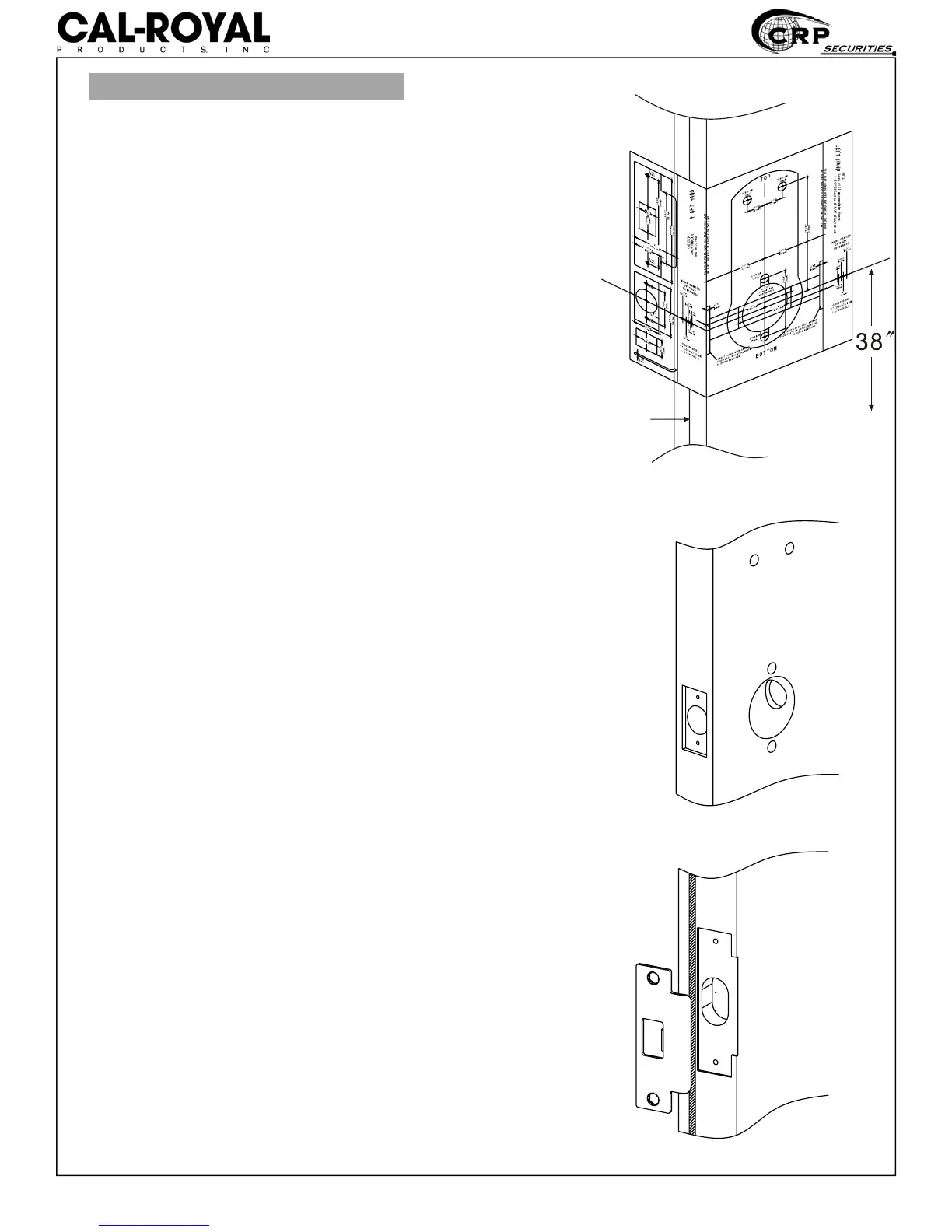

1. Attach TEMPLATE onto door and verify
backset and latchbolt center, before
marking and drilling holes on the door.
2. Drill holes on the door.
*Drilling a hole from both sides is
recommended to avoid splintering wood doors.
2.1 Drill 2
1
/
8
” diameter thru holes.
2.2 Cut notch horizontally.
2.3 Drill two two 3/8” holes on top, per TEMPLATE.
2.4 Drill two 3/8” thru holes, on top and bottom of
the bore hole vertically.
2.5 Drill 1” hole on the edge of the door. Chisel a
UDEEHW´GHHSWRDOORZODWFKIDFHÀXVK¿W
with door edge. Mortise for latchbolt front
1
1
/
8
” width x 2
1
/
4
” height x 5/32” deep.
2.6 Drill Pilot hole for latchbolt screws 7/64”.
3. Prepare and install strike.
3.1 Close door and mark a horizontal line from the
center of the template to the frame of the door.
3.2 Cut a rabbet of 1/8” deep to allow strike to
ÀXVKZLWKMDPE
3.3 Align hole of the strike with vertical line.
Tighten strike plate using two screws provided.
Drill the latch hole
in the middle of the
door width
38” from
WKHÀRRU
4
