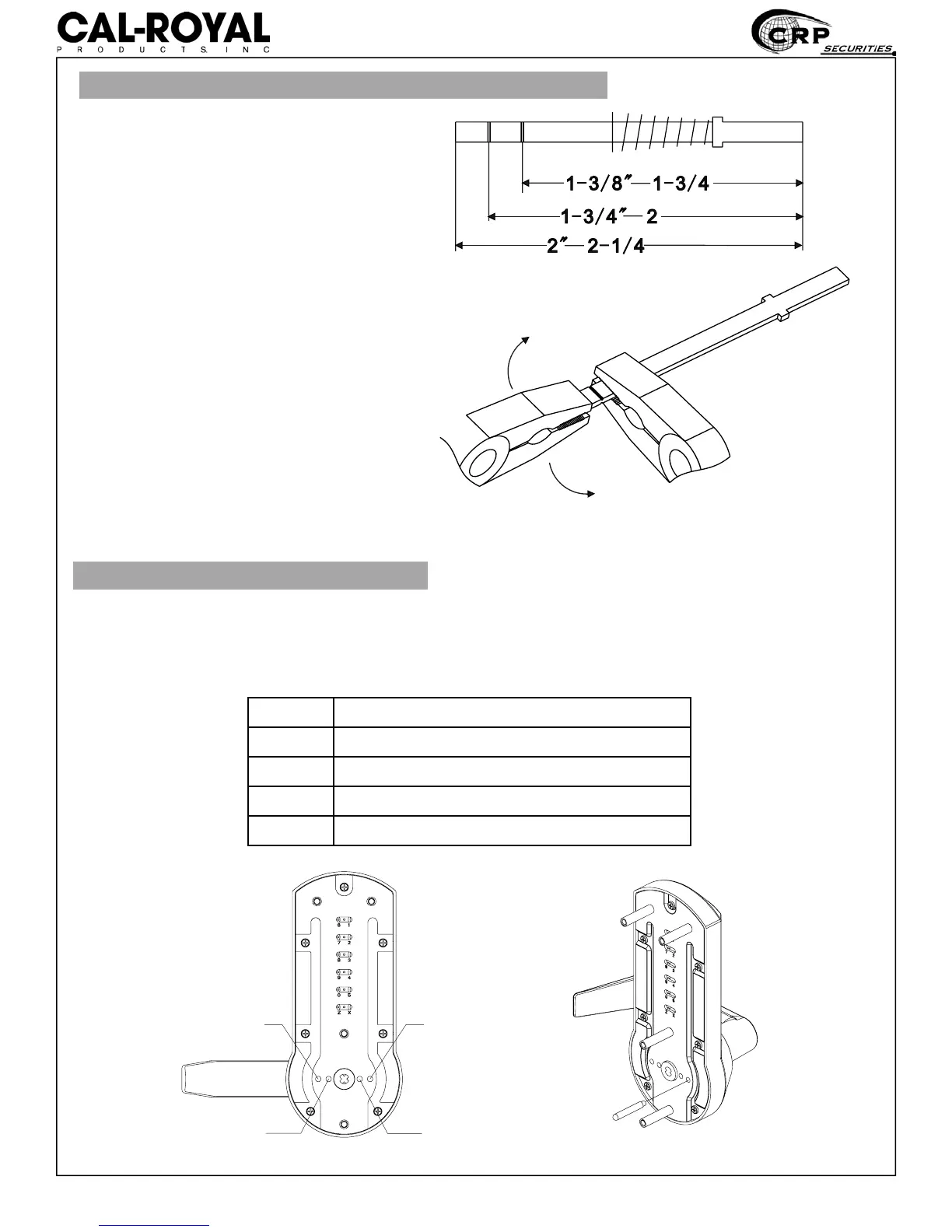

Cut spindle according to door thickness
1. Spindle supplied with breakable
SRLQWVIRUVSHFL¿FGRRUWKLFNQHVV
requirements.
2. Break off one or two points from
the spindle, according to the door
thickness measurement.
Alignment post location
A
D
C
B
1. As tubular latchbolts only have one bolt hole, fasten the alignment post to the desired
position, on the back plate of the Outside Lock .
Post positions provided for:
A Left hand, 2
3
/
4
” backset
B Left hand, 2
3
/
8
” backset
C Right hand, 2
3
/
4
” backset
D Right hand, 2
3
/
8
” backset
6
