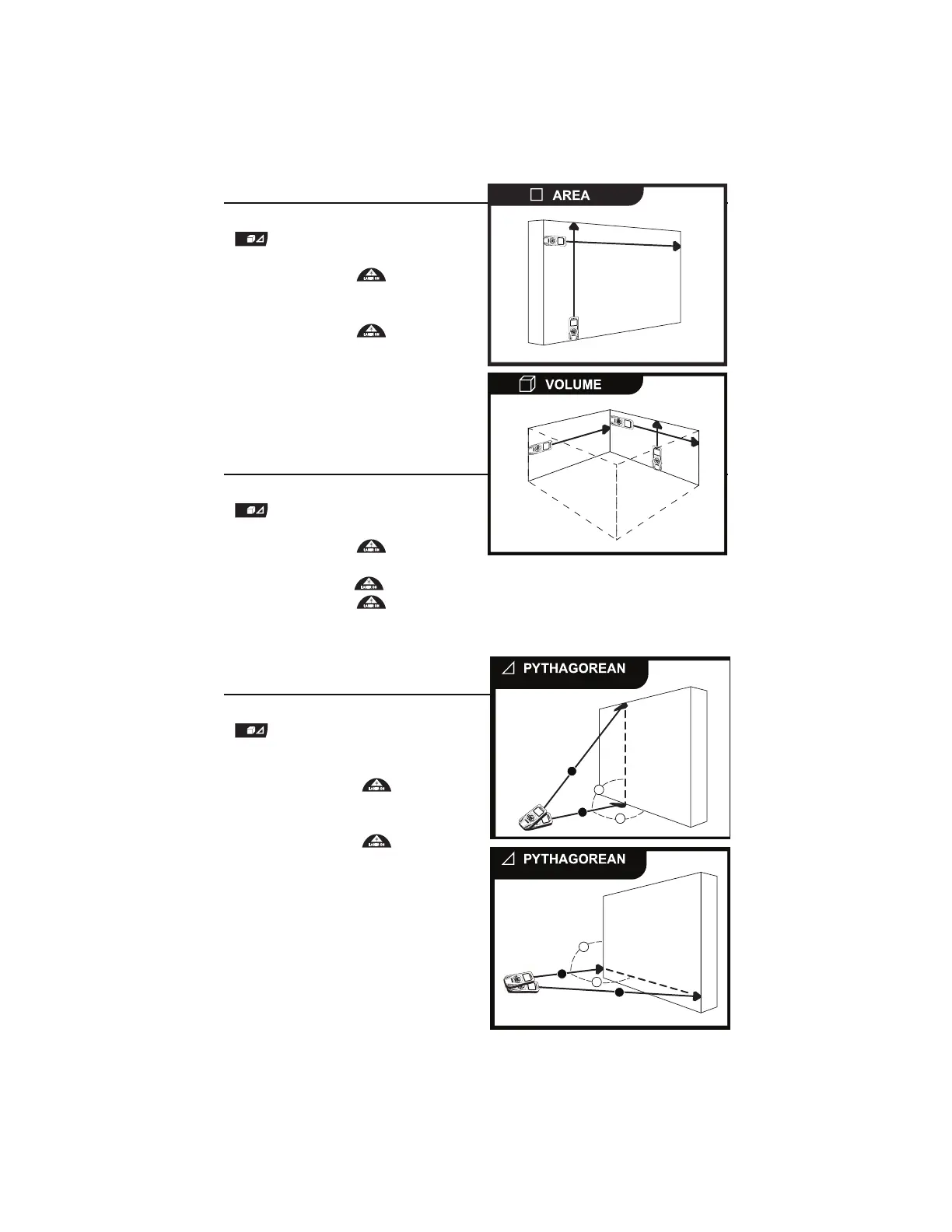

6 — PREXISO X2 QUICK START GUIDE
Area
• Press Area/Volume/Pythagoras
(key 2) once. The Area symbol
appears on the display.
• Press On/Measure (Key 1) and
measure the first distance
(e.g., length).
• Press On/Measure (Key 1) and
measure the second distance
(e.g., width).
The Area measured is shown in the
Main Display and the last distance
measured is in the Secondary Display.
Area or Volume
• Press Area/Volume/Pythagoras
(key 2) twice. The Volume
symbol appears on the display.
• Press On/Measure (Key 1) and
measure the first distance (e.g., length).
• Press On/Measure (Key 1) and measure the second distance (e.g., width).
• Press On/Measure (Key 1) and measure the third distance (e.g., height).
The result is shown in the Main Display and the last distance measured
is shown in the Secondary Display.
Pythagoras (Indirect)
• Press Area/Volume/Pythagoras
(key 2) three times.
The Pythagoras symbol appears on
the display.
• Press On/Measure (Key 1) and
measure the first distance (diagonal
measurement).
• Press On/Measure (Key 1) and
measure the second distance
(horizontal measurement).
The result is shown in the Main
Display and the last distance
measured is shown in the
Secondary Display.
Note: Second measurement must
be perpendicular (90º angle) to
measured surface.
L
L x W = Area
W
L x W x H = Volume
L
W
H
(Indirect Measurement)
Measure to Top
Measure to Bottom
Solves for Height
Top
Bottom
Height
1
2
90˚
90˚
(Indirect Measurement)
Measure Far Point
Measure Near Point
Solves for Width
Near
Point
Far Point
Width
1
2
90˚
90˚
