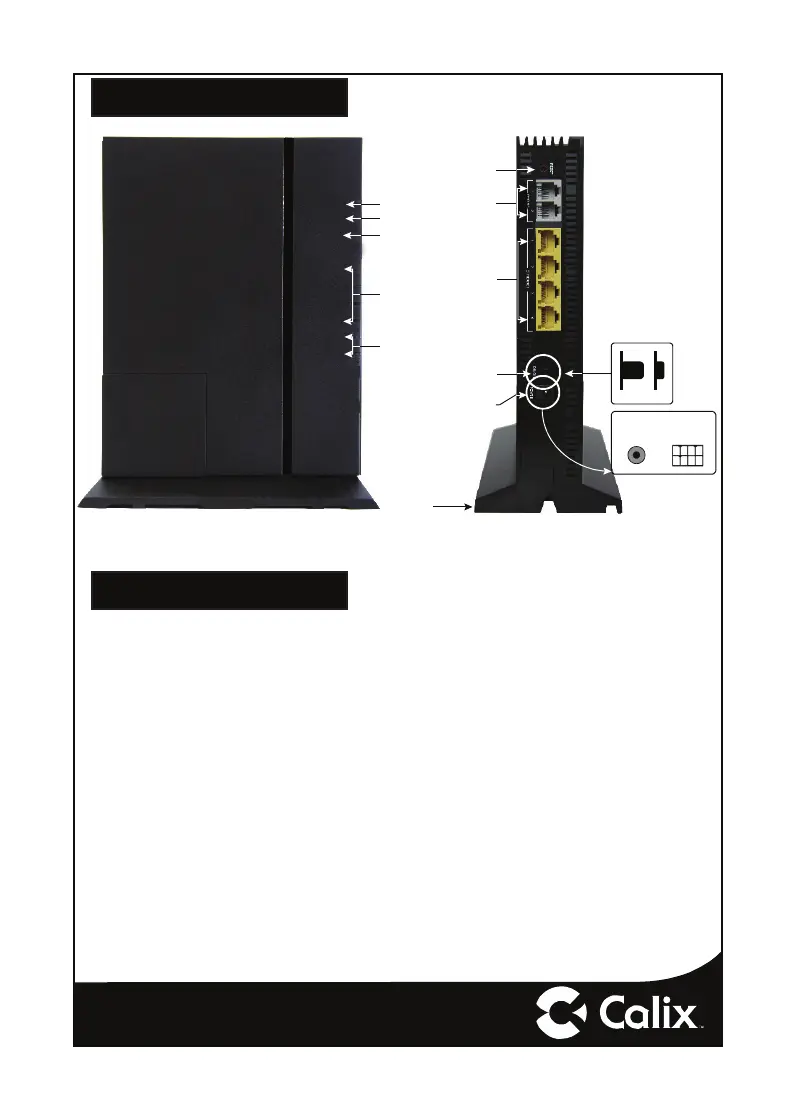

A Quick Look
Installation Variables
Before installing the 812G GigaHub, consider what additional services may
be implemented. Various Ethernet and telephone ports are available on the
back of the unit which may or may not be used. Prior to determining the
unit’s fi nal location, you need to account for the following variables:
• Where will the telephone lines be routed?
• Where will the Ethernet cables be routed?
• What type of building material is used in the home? Make sure you have
the appropriate drills, drill bits and fasteners for routing subscriber ser-
vices and/or power cables as they pass through walls and the like.
Model 812-2
Barrel Power
Connector
Model 812-1
8-Pin Power
Connector
POWER
BROADBAND
SERVICE
ETHERNET 1
ETHERNET 2
ETHERNET 3
ETHERNET 4
PHONE 1
PHONE 2
Power
Broadband
Service
Ethernet (1-4)
Telephone (1-2)
Reset Button
Telephone
Ports (x2)
(RJ-11)
Ethernet
Ports (x4)
(RJ-45)
Power On/Off
(Toggle Switch)
Model 812-2 Only
Power
Adapter Port
Tabletop
Stand
7106
ONOFF
7106
