Calix GigaHub 812G - Wall Mounting Dimensions

Wall Mounting Dimensions

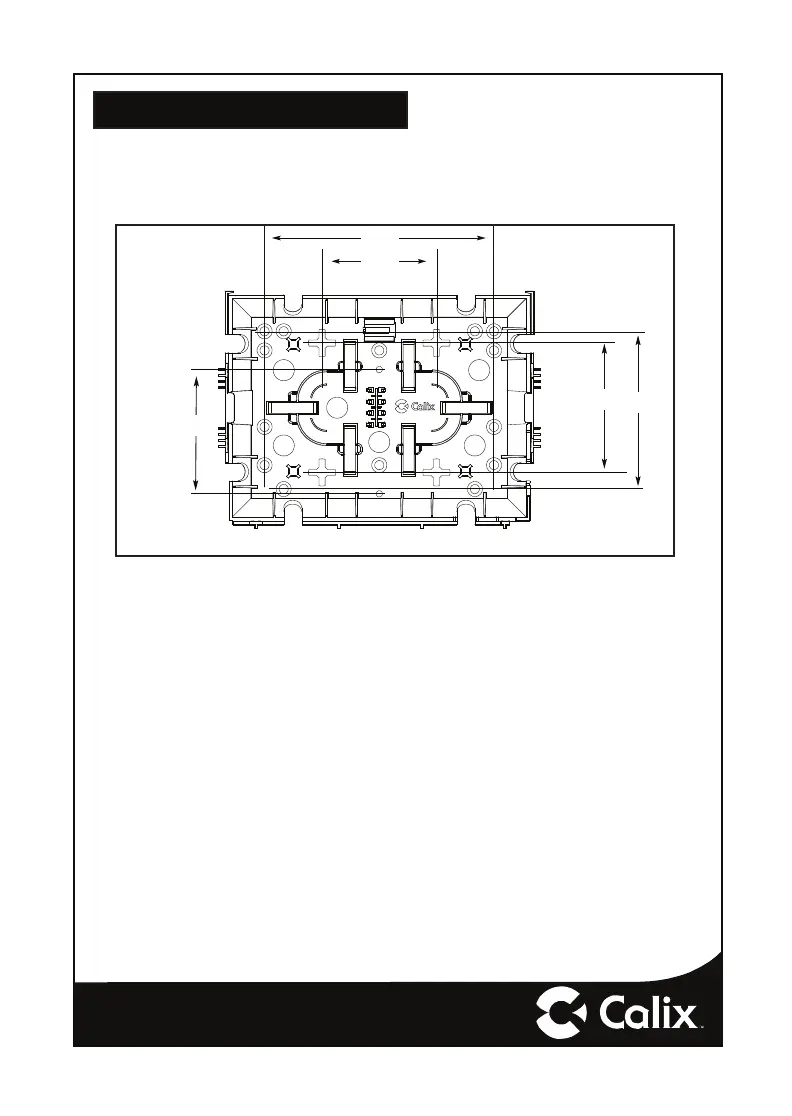

In order to facilitate wall mounting of the 812G GigaHub, a Fiber Manage-
ment Tray (wall mount bracket) is required (included with the GigaHub).
— 4 —
6.0”
(15.2 cm)
3.0”
(7.6 cm)
3.375”
(8.5 cm)
4.125”
(10.5 cm)
3.25”
(8.3 cm)
†
† = Standard Electrical
Outlet Spacing
Note: Mounting holes with double ring indicate
standard Structured Wiring Enclosure
Spacing (Levithon)
