Installation Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638150 ISSUE 11
®
AUX
T CNOLOGiC
X31SX
U
P
DEFROST LAMP
WATER HEATING LAMP
FAN LAMP
ALARM LAMP - FAULT
AUX
AUX LAMP - POOL PUMP
NOT USED (CHILLING)

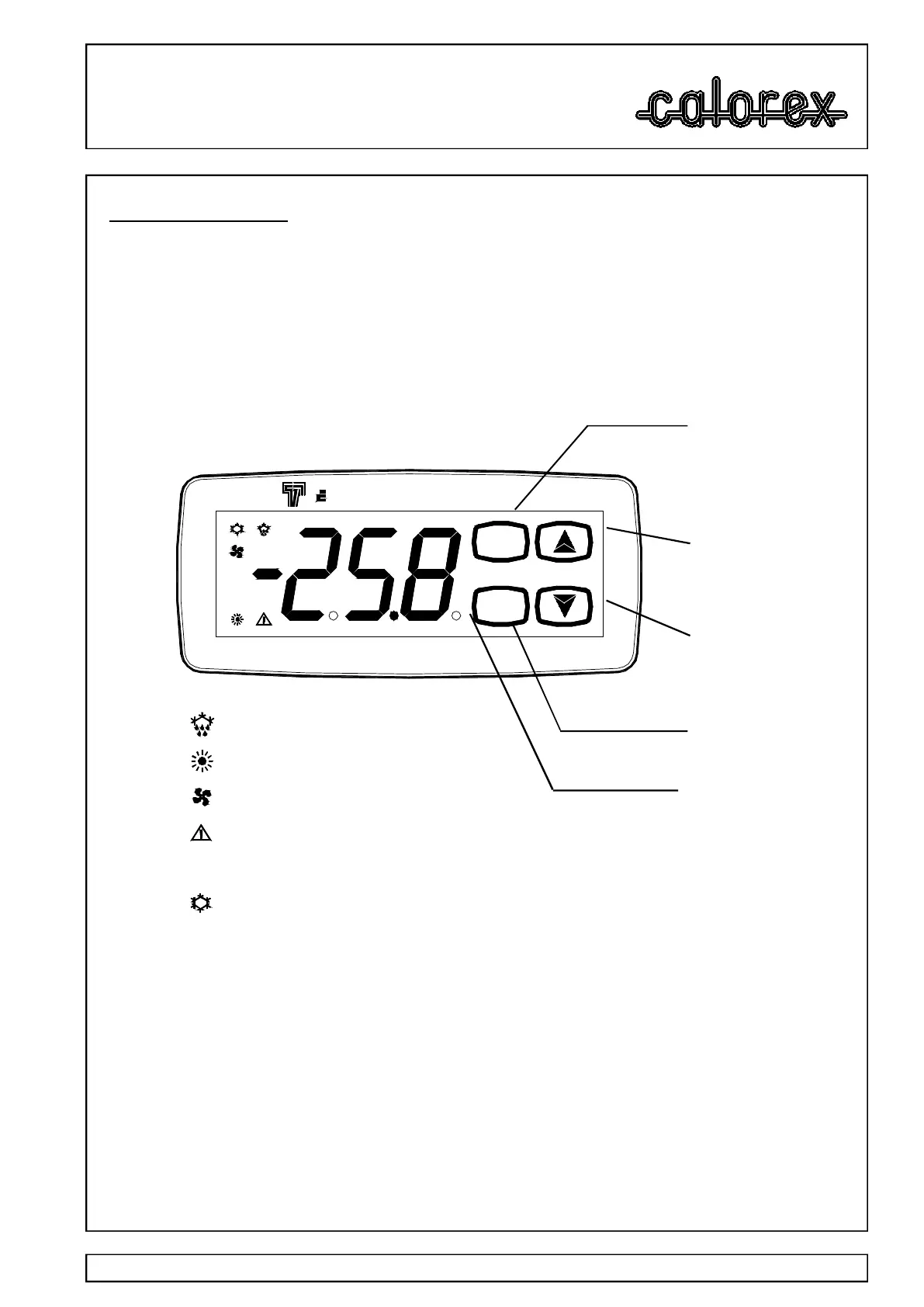

5.0 Digital Thermostat
An adjustable touch screen digital thermostat controls and maintains the
water temperature and incorporates the indicator lamps.
Press and release the P key to display required temperature. To alter
required temperature press the up or down keys, a gentle touch is all that
is necessary. After 5 seconds the display reverts to actual water
temperature.
Not used
Increase Set Point
Also start/stop manual
defrost
Decrease Set Point
Access Set Point
Set Lamp
To Next Page
