NM-NMD Rev22 - 安装使用手册
14

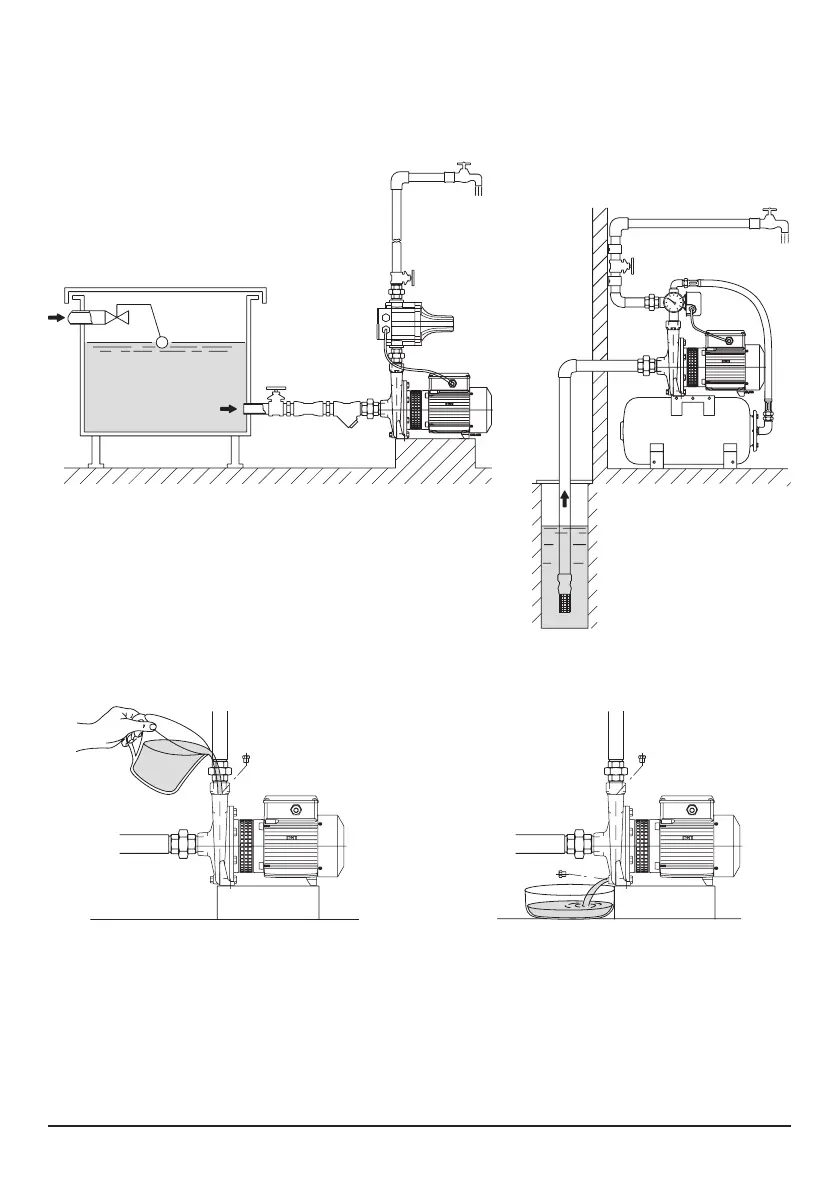

12.3.
Installation examples
Ejemplos de instalaciones
4.93.098
4.93.010
4.93.009
Fig. 1
Positive suction head operation
Funcionamiento bajo carga
Fig. 3
Filling
Llenado
Fig. 4
Scarico
Vaciado
Fig. 2
Suction lift operation
Funcionamiento en aspiración

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Calpeda NM Series and is the answer not in the manual?

Calpeda NM Series Specifications

General IconGeneral
MaterialCast Iron
Seal TypeMechanical seal
Pump TypeCentrifugal
ApplicationWater supply, Irrigation, Industrial processes
Maximum Operating Pressure10 bar
Speed2900 rpm
