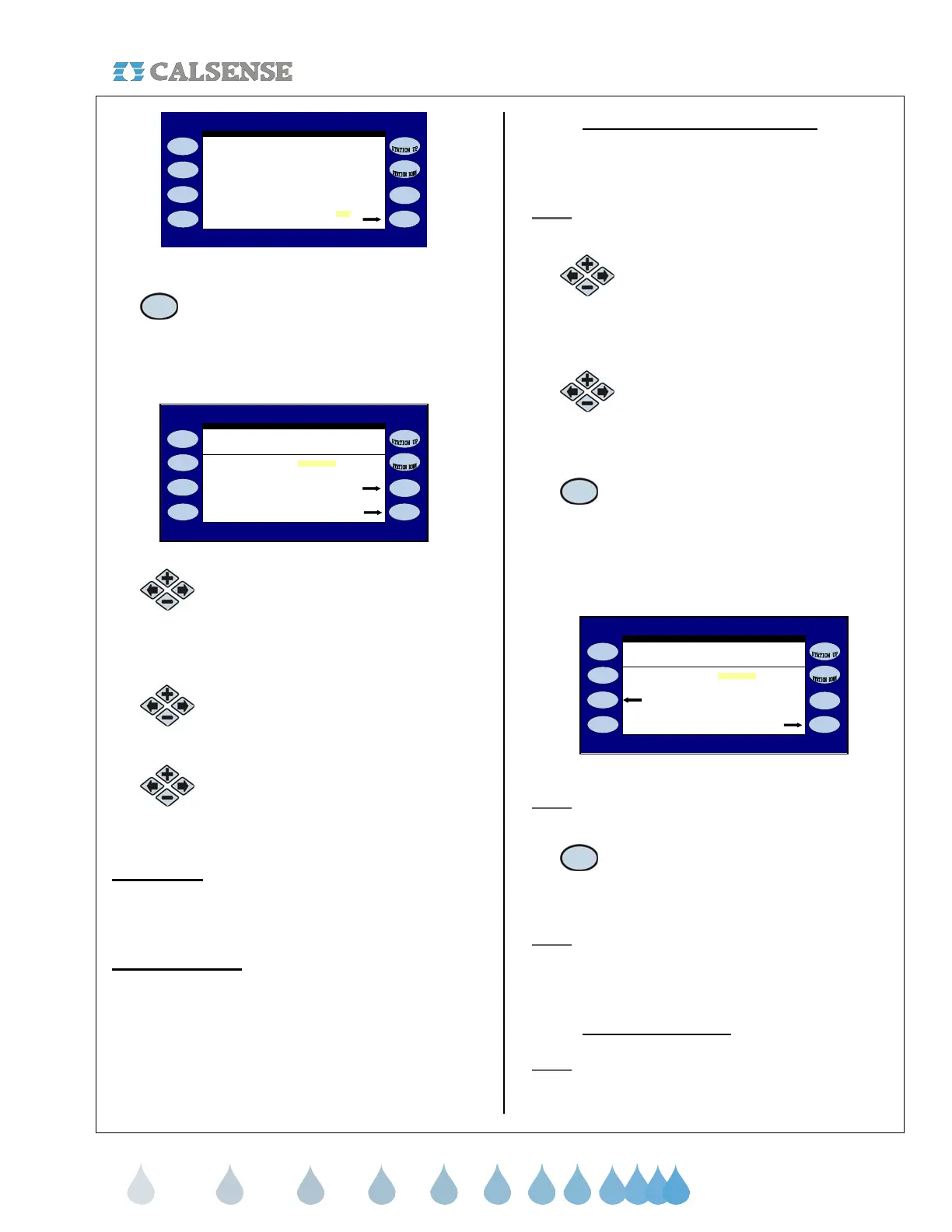

Calsense ET2000e - Page 65

® SECTION 11: FLOWSENSE® (-FL)
making
since 1986
w
ater work
Point of Connection: POC 2
Flow Meter in use ? YES
Use your own K & Offset? NO
Is this POC used with irrigation? NO
POC Set-up
Flow Meter Size: FM-1.25B
POINT OF CONNECTION (MV & FM)
Master Valve is NORMALLY CLOSED
Figure 12.7
1.
Press the POC SETUP Menu key.
The POINT OF CONNECTION SET-UP screen is
displayed (Figure 12.8).
During Use: 200 gpm
Schedule Use of MV
USE Master Valve for 4.0 hours
POINT OF CONNECTION SET - UP
Point of Connection 2
Mainline Break Settings
Not During Use: 150 gpm
Figure 12.8
2.
Press the PLUS or MINUS keys to
change the DURING USE: number.
3.
Press the blue ARROW keys to
move the cursor to the NOT
DURING USE: setting.
4.
Press the PLUS or MINUS keys to
change the NOT DURING USE:
number.
During Use:
This setting is defined as the gallons
per minute that you expect your system to flow at
during the time period scheduled. Allow for normal
fluctuation readings when setting the number.
Not During Use:
This setting is defined as the
gallons per minute that you expect your system to
flow at during non-scheduled periods of time.
The range for both of these settings are:
1 to 4000 gpm
12B.3 Use Master Valve for x.xx hours
This setting can be used to open a normally closed
Master Valve on Point of connection 2 or 3 for a
period of time from 0.1 hours to 24.0 hours.
Note:
Point of Connection has to be set up for Non-
irrigation use for this screen to be available.
1.
Press the blue ARROW keys to
move the cursor to the USE
MASTER VALVE FOR X.XX
HOURS setting.
2.
Press the PLUS or MINUS keys to
change the highlighted number.
3.
Press the USE MASTER VALVE FOR
X.XX HOURS Menu key.
The POINT OF CONNECTION SET-UP screen is
displayed (Figure 12.9).
During Use: 200 gpm
Schedule Use of MV
Currently IN USE. Press here to STOP.
POINT OF CONNECTION SET - UP
Point of Connection 2
Mainline Break Settings
Not During Use: 150 gpm
Figure 12.9
Note:
If you want to discontinue this evolution use
Step 4.
4.
Press the CURRENTLY IN USE.
PRESS HERE TO STOP Menu key,
to discontinue current use of POC.
Note:
If a time is set and the USE MASTER VALVE
FOR X.XX HOURS Menu key is pressed and left to
continue. The Master Valve will close automatically
after the duration elapses.
12B.4 Schedule Use of MV
Note:
Point of Connection has to be set up for Non-
irrigation use for this screen to be available.
