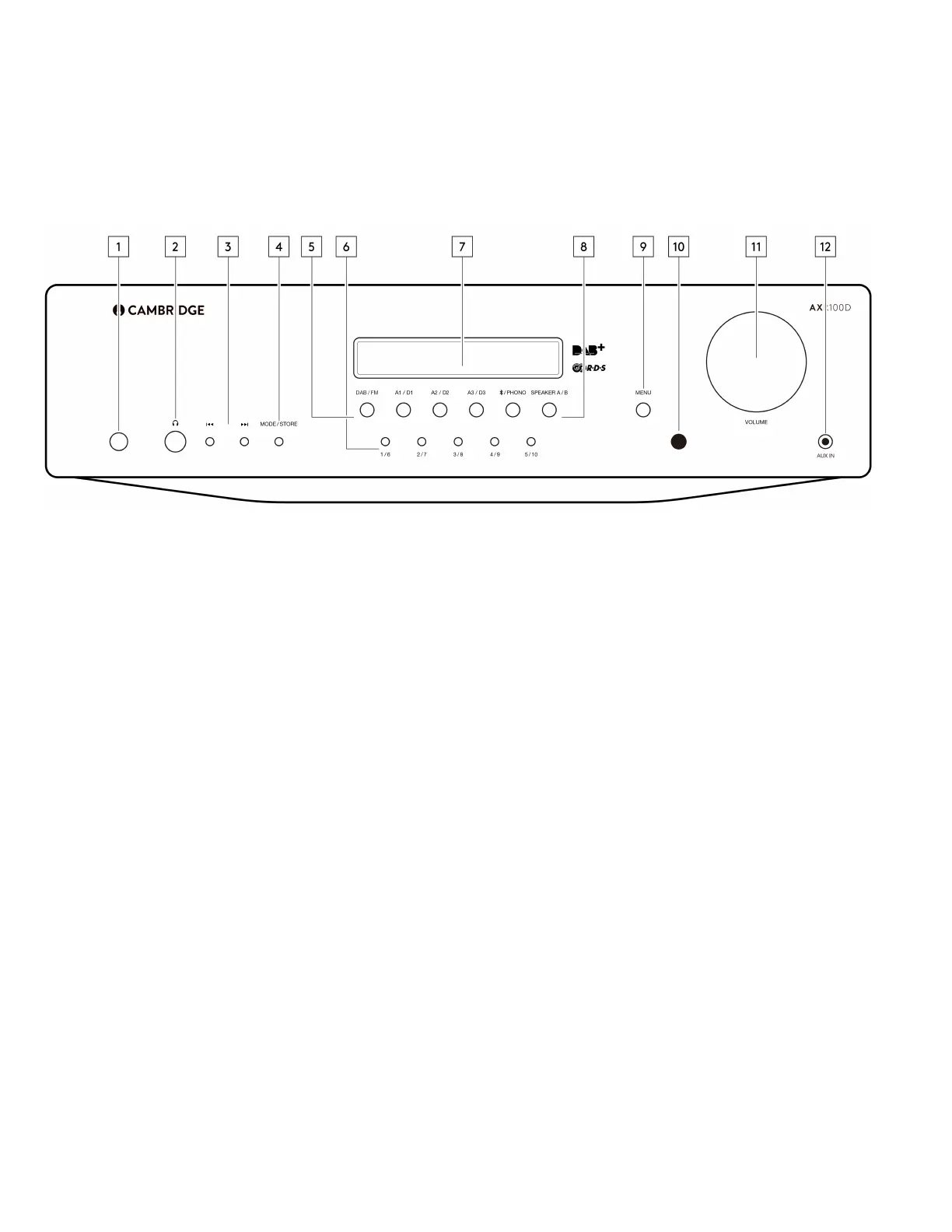

Front panel controls
Last updated: July 29, 2022 10:31. Revision #5460
1. POWER BUTTON - Switches the unit between Standby mode (indicated by dim power LED) and On (indicated by bright power LED). Standby is a low
power mode where the power consumption is less than 0.5 Watts. The unit can be left in Standby mode when not in use.
Auto Power Down (APD) – You can enable and disable the unit’s APD setting. This can be done by using the rotary dial to choose the ‘On’ or ‘Off’
option and then pressing the rotary dial to select the desired option.
Select the ‘Menu’ button > go to ‘APD Settings’ > set to ‘On’.
The product will then automatically switch to standby mode after inactivity of 20 minutes.
Note: Make sure the unit is On, before making changes to the APD function.
2. HEADPHONES SOCKET - Allows for the connection of stereo headphones with a quarter inch jack plug. Headphones with an impedance of between
32 and 600 ohms are recommended.
Note: Plugging in headphones will automatically mute the loudspeaker outputs.
3. SKIP/SCAN BUTTONS - The skip scan buttons are used when the DAB/FM tuner is selected. These buttons have different uses depending on the
mode selected.
In Preset mode - Steps up or down through the user-stored presets.
In Auto mode - Searches for the previous or next available station. The unit stops at the next strong signal it finds.
In Manual mode - Allows manual stepping up or down of the frequency.
Note: When Preset mode is activated, the unit will automatically tune to the first available preset.
4. MODE/STORE BUTTON - Used for DAB/FM mode.
In FM: Press to cycle the tuning mode between Preset, Auto and Manual modes.
In DAB: Press to cycle between Auto scan, Preset and Service list modes.
