General Notes
• Read the instructions carefully before beginning the installation and carry out the actions as
specifi ed by the manufacturer.
• The installation, programming, commissioning and maintenance of the product must only be carried
out by qualifi ed technicians, properly trained in compliance with the regulations in force, including
health and safety measures and the disposal of packaging.
• The installer must ensure that the information for the user, where there is any, is provided and
delivered.
• Before carrying out any cleaning or maintenance operation, disconnect the devices from the
power supply.
• The equipment must only be used for the purpose for which it was expressly designed.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or un-
reasonable use.
eventuali danni derivanti da usi impropri, erronei ed irragionevoli.
The product complies with the applicable reference directives.
The data and information provided in this manual are subject to change at any time with-
out prior notice. Measurements, unless otherwise indicated, are in millimetres.

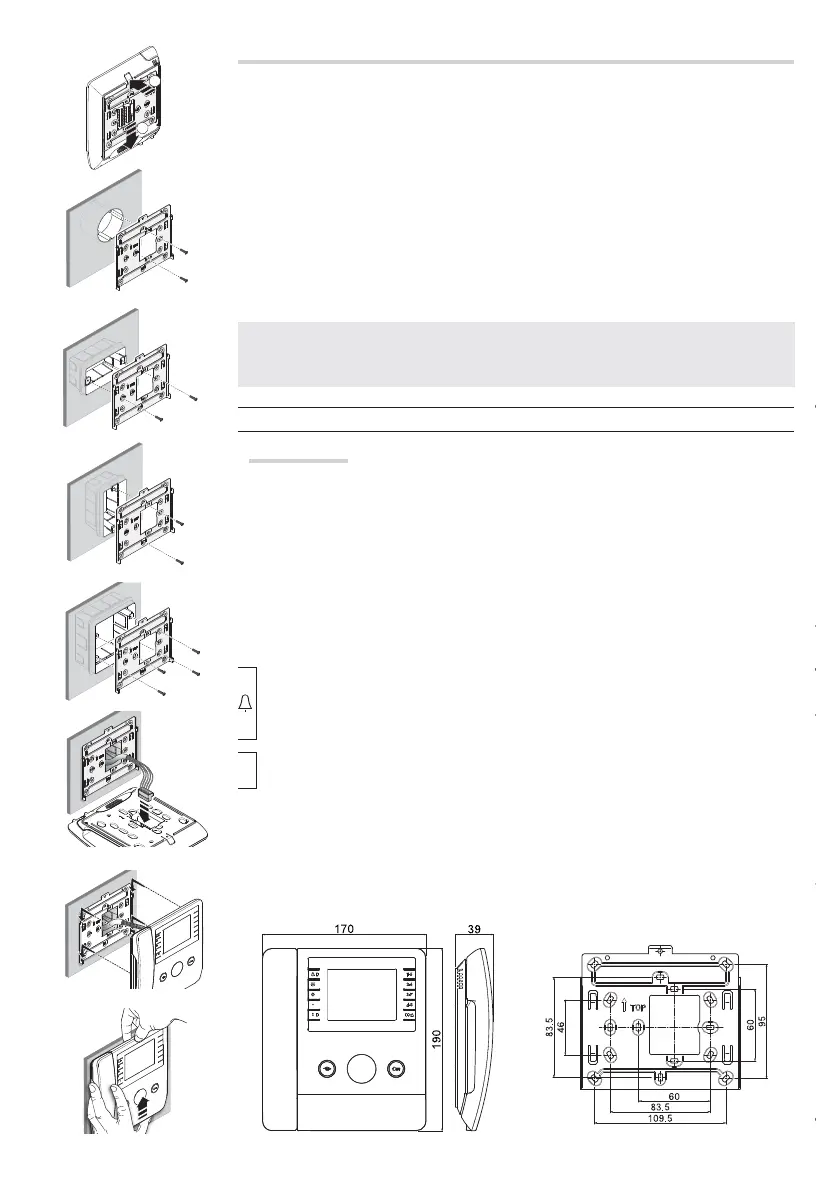

AGATA VC-V
Wall mounting
Remove the unit from the metallic support by sliding it after pressing the plastic button (fi gure ).
Attach the wall bracket to the round recessed box Ø 60mm (fi gure ), the rectangular box 503
(Figure and ), the rectangular box 506E (Figure ), or the Ophera recessed box (PHI) using
the provided screws and observing the TOP indication. To ensure greater stability to the mounting
surface, secure box with screws and anchors provided.
The recessed box must be fi tted at a suitable height in relation to the user. Avoid excessive tight-
ening of the screws. Once the connections have been made, hook the video terminal to the metal
support (fi gure -). To release the unit from the metal support, press the plastic hook and lift
the terminal (fi gure ).
Terminal board M1
–
Doorbell
+
B BUS line input
To Next Page
