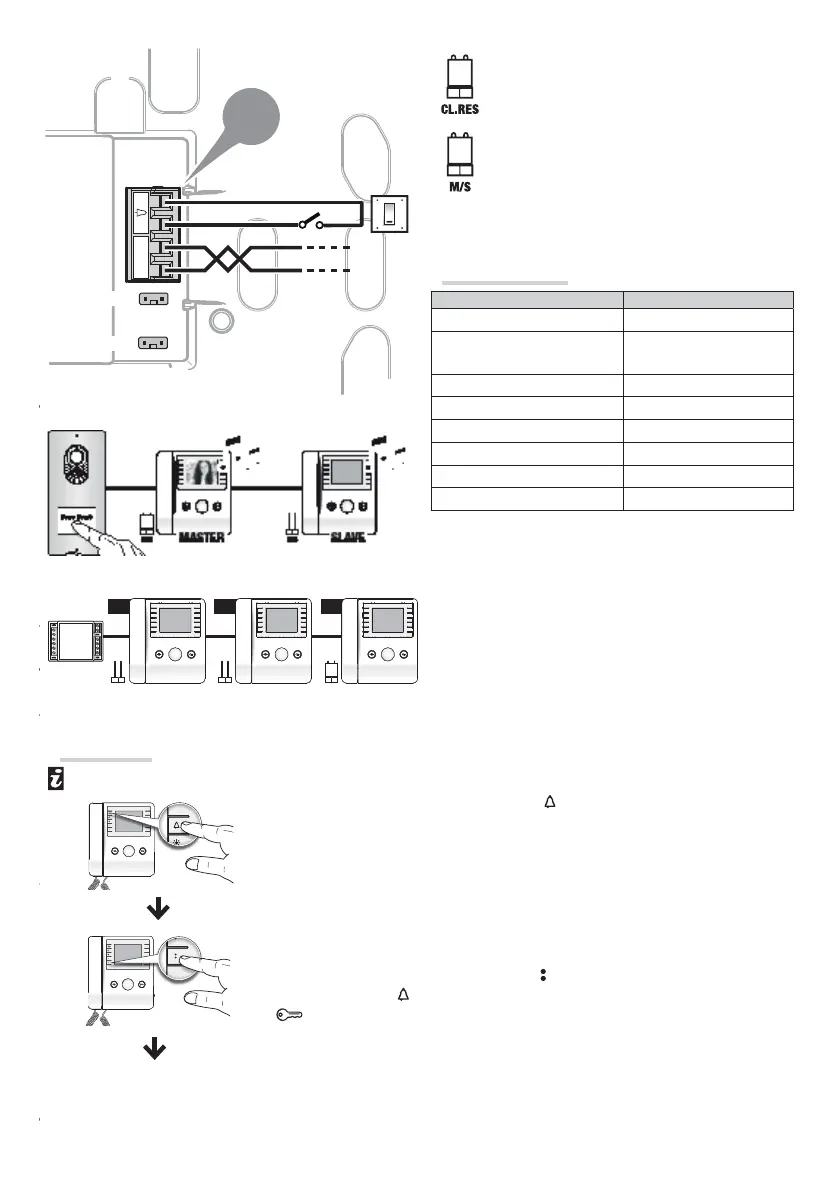

Resistive load termination
MASTER/SLAVE selection
In case of simultaneous call, the audio/video communication will
be activated on the MASTER extension only.
Technical features
T
pe AGATA VC-V
Power supply from BUS 15÷20 VD
Absorption
175 mA max (<1 mA stand-
by)
Single LED Absorption 1 mA (1 мА)
Storage temperature -25°C +70 °C
Operating temperature +5°C +40°C
IP Degree IP30
Video signal system PAL/NTSC
Display LCD TFT 3,5”
Programming
For call programming, see the entry panel documentation.
Accessing programming. Press and hold the key for 3 seconds. A brief acoustic signal and
the blinking LED will confi rm that programming has been accessed .
Programming the melody associated to the call from the entry panel (1 acoustic signal).
To hear the melodies in sequence, press the key
. To select the melody and exit the pro-
gramming, press the key . To select the melody and continue with programming, press the
key .
