43,5
45
7,5
57
70
106
A
M2M1
+–
Page 4 - Manual FA01031-IT - 08/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Page 4 - Manual FA01395-EN - 11/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructionsPage 4 - Manual FA01395-EN - 11/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions

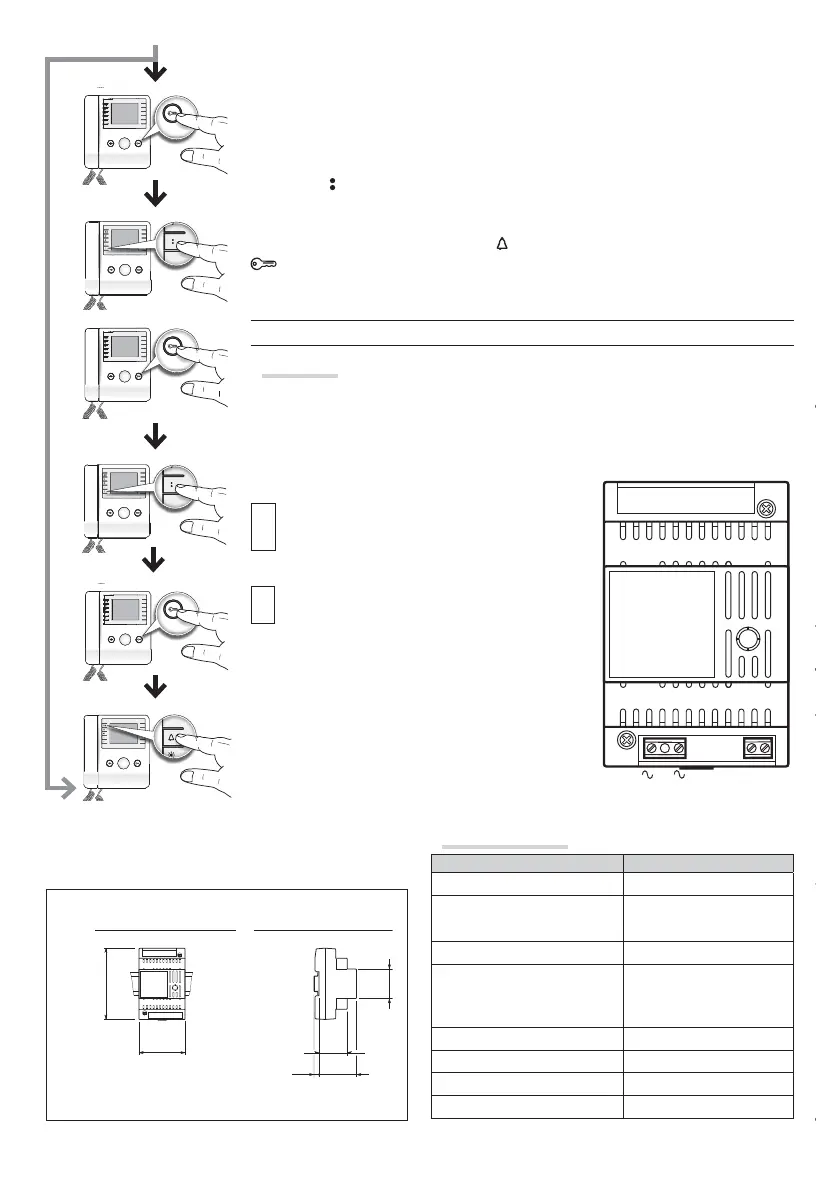

Programming the melody associated with the doorbell (2 acoustic signals).
Per questo tipo di programmazione e proceed as previously described for “Programming the
melody associated to the call from the entry panel”.
Programming the number of call rings (3 acoustic signals).
Press the key
the number of times equal to the rings selected for the call (1 to 6 rings) .
After the key is pressed the last time, the call selected for the selected number of rings will be
will be reproduced.
To save the new settings, press the button otherwise, press the door lock release button
to enter the entry panel call melody programming procedure again.
VAS/101
Installation
The power supplier must ALWAYS be installed horizontally.
• The device can be installed on a DIN rail (EN 50022) in an appropriate electric panel.
• For the overall dimensions see fi gure .
NOTE. Proper ventilation is required if the power supplier is installed in a metal container.
Terminal board M1
~
Mains
~
Terminal board M2
–
+
Power supply 18 VDC (*)
(*) The appliance is electronically protected
against overloads and short circuits.
Technical features
T
pe VAS-101
Power supply 230 VAC 50÷60 Hz
Input current
I
max
=200 mA
AC
AC
Dissipated power 10 W max
Nominal power supply 18 VDC 1 A-0,5 A 1’/3’
(1–0,5А (18В пост. тока)
на 1-3 сек)
Dimensions 4 DIN
Storage temperature -25 °C + 70 °C
Operating temperature 0 °C +35 °C
IP Degree IP 30
